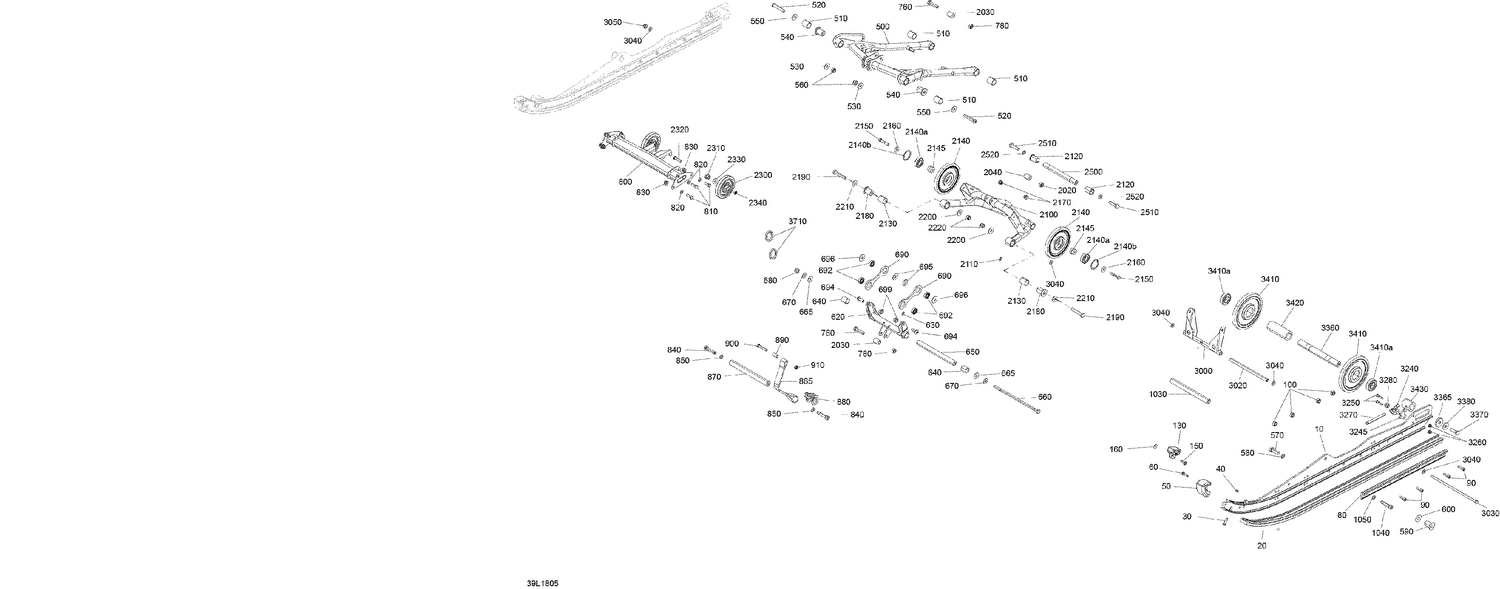

08- Rear Suspension Shocks Rave - 600 RS
Parts (98)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 503194796 | Runner Pps2 Rs |
| 20 | 503192618 | Black Slider, 154" |
| 30 | 208562531 | Phillips Screw M6 X 25 |
| 40 | 232561414 | Elastic Stop Nut M6 |
| 50 | 503192299 | Runner Protector |
| 60 | 207652544 | Hex. Flange Screw M5 X 25 |
| 80 | 503194734 | Rail Reinforcement Rs |
| 90 | 205082554 | Socket HD Screw M8 x 25 |
| 100 | 232581414 | Hex. Elastic Stop Nut M8 |
| 130 | 503193504 | Rubber Stopper |
| 150 | 293150224 | Rivet Pop 3/16 |
| 160 | 503191273 | Washer |
| 500 | 503193561 | Front Arm |
| 510 | 503191554 | Bushing |
| 520 | 250000696 | Hexagonal Screw |
| 530 | 250200138 | Washer |
| 540 | 503194579 | Lower Axle Sleeve |
| 550 | 503191926 | Washer |
| 560 | 233601466 | Elastic Locking Nut M10 |
| 570 | 250000537 | Hex. Cap Screw M12 X 35 |
| 580 | 503192491 | Washer |
| 590 | 503194580 | Upper Axle Sleeve |
| 600 | 503190656 | Washer |
| 620 | 503194799 | Front Swing |
| 630 | 408200700 | Grease Fitting |
| 640 | 503193822 | Bushing |
| 650 | 503193893 | Lower Shaft |
| 660 | 503193227 | Bolt M10 X 251MM |
| 665 | 503191926 | Washer |
| 670 | 250200138 | Washer |
| 680 | 233601466 | Elastic Locking Nut M10 |
| 690 | 605254159 | Etuvivun välitanko |
| 692 | 503194696 | Bearing |
| 694 | 205402546 | Socket Screw BN.HD.ISO.7380 |
| 695 | 25004 | Cup Spring |
| 696 | 234002600 | Flat Washer 10 mm, Stainless |
| 699 | 232500416 | Elastic Stop Nut M10 |
| 760 | 207004544 | Hex. Screw M10 X 45 |
| 780 | 232500416 | Elastic Stop Nut M10 |
| 800 | 503193623 | Middle Beam |
| 810 | 250000556 | Hex. Cap Screw M8 x 25 |
| 820 | 503192494 | Washer |
| 830 | 233281414 | Hex. Flange Elastic Nut M8 |
| 840 | 205505054 | Socket Screw |
| 850 | 503192496 | Washer |
| 865 | 605355116 | Courroie De Limitation |
| 870 | 503195015 | Limiter Strap Shaft |
| 880 | 503194867 | Holder, Limiter Strap |
| 890 | 605455335 | Sleeve |
| 900 | 207084544 | Hex. Screw M8 X 45 |
| 910 | 232581414 | Hex. Elastic Stop Nut M8 |
| 1030 | 5343471 | Eturemmin akseli |
| 1040 | 205505054 | Socket Screw |
| 1050 | 503192496 | Washer |
| 2020 | 232500416 | Elastic Stop Nut M10 |
| 2030 | 5446652 | Bushing |
| 2040 | 5446652 | Bushing |
| 2100 | 503194325 | Rear Arm (Heavy Duty) |
| 2110 | 408200700 | Grease Fitting |
| 2120 | 503191640 | Cushion |
| 2130 | 503191554 | Bushing |
| 2140a | 503190396 | Ball Bearing |
| 2140b | 415129371 | Retaining Ring |
| 2145 | 605454461 | Sleeve |
| 2150 | 207084544 | Hex. Screw M8 X 45 |
| 2160 | 20077 | M8 Washer |
| 2170 | 233281414 | Hex. Flange Elastic Nut M8 |
| 2180 | 503194580 | Upper Axle Sleeve |
| 2190 | 250000696 | Hexagonal Screw |
| 2200 | 503191926 | Washer |
| 2210 | 503191926 | Washer |
| 2220 | 233601466 | Elastic Locking Nut M10 |
| 2300 | 572043500 | Idler Wheel |
| 2310 | 503193330 | Sleeve |
| 2320 | 207083544 | Hex. Screw M8 X 35 |
| 2330 | 20077 | M8 Washer |
| 2340 | 232581414 | Hex. Elastic Stop Nut M8 |
| 2500 | 503193638 | Axe Inferieur *shaft-lower |
| 2510 | 207204044 | Hex Cap Screw Din.931 S.grip |
| 2520 | 234001410 | Flat Washer 10 mm |
| 3000 | 503194342 | Rear Swing |
| 3020 | 503189156 | Pivot Arm Axle |
| 3030 | 503194069 | Bolt M8 |
| 3040 | 503192494 | Washer |
| 3050 | 233281466 | Elastic Flang Nut M8 |
| 3240 | 503192583 | Tensioner This part replaces 503192814. |
| 3245 | 503193250 | Spacer |
| 3250 | 207063054 | Hex. Cap Screw M6 X 30 |
| 3260 | 233261466 | Hex. Flanged Elastic Nut M6 |
| 3270 | 230100054 | Hex Screw M10 x 100 |
| 3280 | 233601466 | Elastic Locking Nut M10 |
| 3360 | 503194091 | Rear Shaft |
| 3365 | 503192735 | Rear Axle Washer |
| 3370 | 250000592 | Hex Cap Screw Nylon M10 x 35 |
| 3380 | 503183300 | Aluslevy M10, karkaistu |
| 3410a | 293350115 | Ball Bearing This part replaces 293350055. |
| 3420 | 5448027 | Holkki |
| 3430 | 5441512 | Cushion |
