Parts Catalog

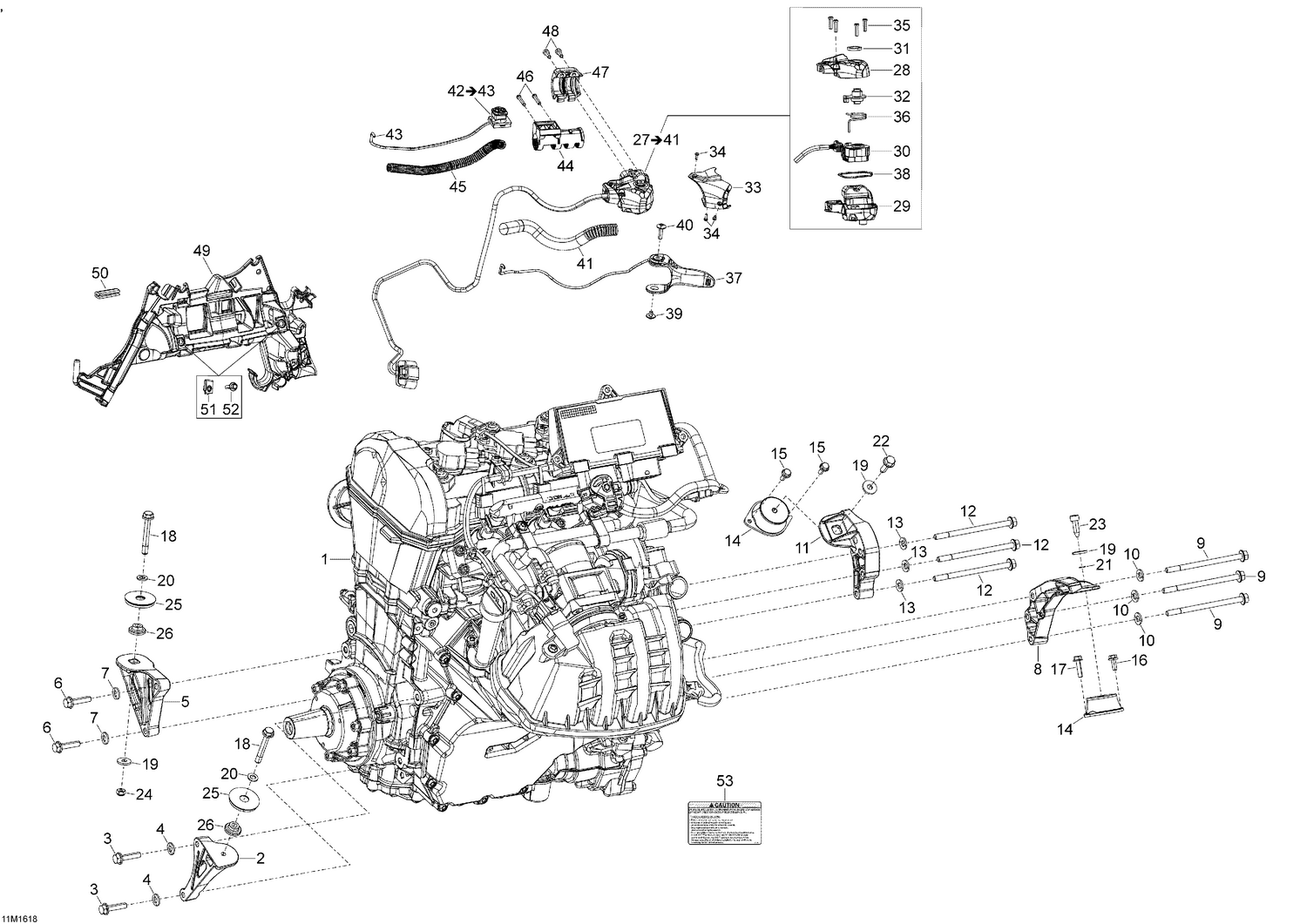

01- Engine And Engine Support - 900 ACE

Parts (48)

Ref	Part Number	Description
1	Not	Available As Spare Part - Engine 900 ACE
2	512061139	Rear Support PTO This part replaces 512060660.
4	234281474	Conical Spring Washer M8
5	512061140	Front Support PTO This part replaces 512060661.
7	234281474	Conical Spring Washer M8
8	512061142	Rear Support MAG This part replaces 512060894.
9	207584544	Hex. Flange Screw M8 X 45, Scotch Grip
10	250200157	Conical Spring Washer M8
11	512060663	Front Support, MAG
12	207584544	Hex. Flange Screw M8 X 45, Scotch Grip
13	250200157	Conical Spring Washer M8
14	512060729	Rubber Mount
15	207561644	Hex. Flange Screw M6 X 16, Scotch Grip
16	207561644	Hex. Flange Screw M6 X 16, Scotch Grip
17	207562534	Hex. Flange Screw M6 X 25, Scotch Grip
18	207586044	Hex. Flange Screw M8 X 60, Scotch Grip
19	503183200	Yellow, Washer
20	250200008	Flat Washer With Teflon 8 mm
21	293300123	O-Ring
22	250000257	Cone Screw, M8 X 30
23	250000639	Cone Screw, M8 X 25
24	232581414	Hex. Elastic Stop Nut M8
25	512061536	Engine Stopper This part replaces 512060826.
26	512060285	Spacer
28	Not	Available As Spare Part - Housing
29	Not	Available As Spare Part - Housing
30	Not	Available As Spare Part - Sensor
31	Not	Available As Spare Part - Shaft Seal
32	Not	Available As Spare Part - Swivel
33	512060862	Cap
34	250000623	Torx Screw M2.9 x 9.5
35	250000671	Torx Screw
36	Not	Available As Spare Part - Spring
37	415130047	Handle Ass'y kit
38	Not	Available As Spare Part - O Ring
39	Not	Available As Spare Part - Screw
40	250000528	Torx Screw M5 X 20
41	515177716	Protector Tube
43	515175232	Male Terminal
44	512061453	Switch Support This part replaces 512060844.
45	515177946	Protector Tube
46	250000263	Torx Screw #8-18
47	512060987	Front Housing
48	250000632	Torx Screw M5 X 14
49	512060994	Module Support
50	219704354	Trim 1000Mm Long
51	250000958	Panel Nut M5 X 0.8 This part replaces 250000079.
52	207552044	Hex. Flange Screw M5 X 20, Scotch Grip
