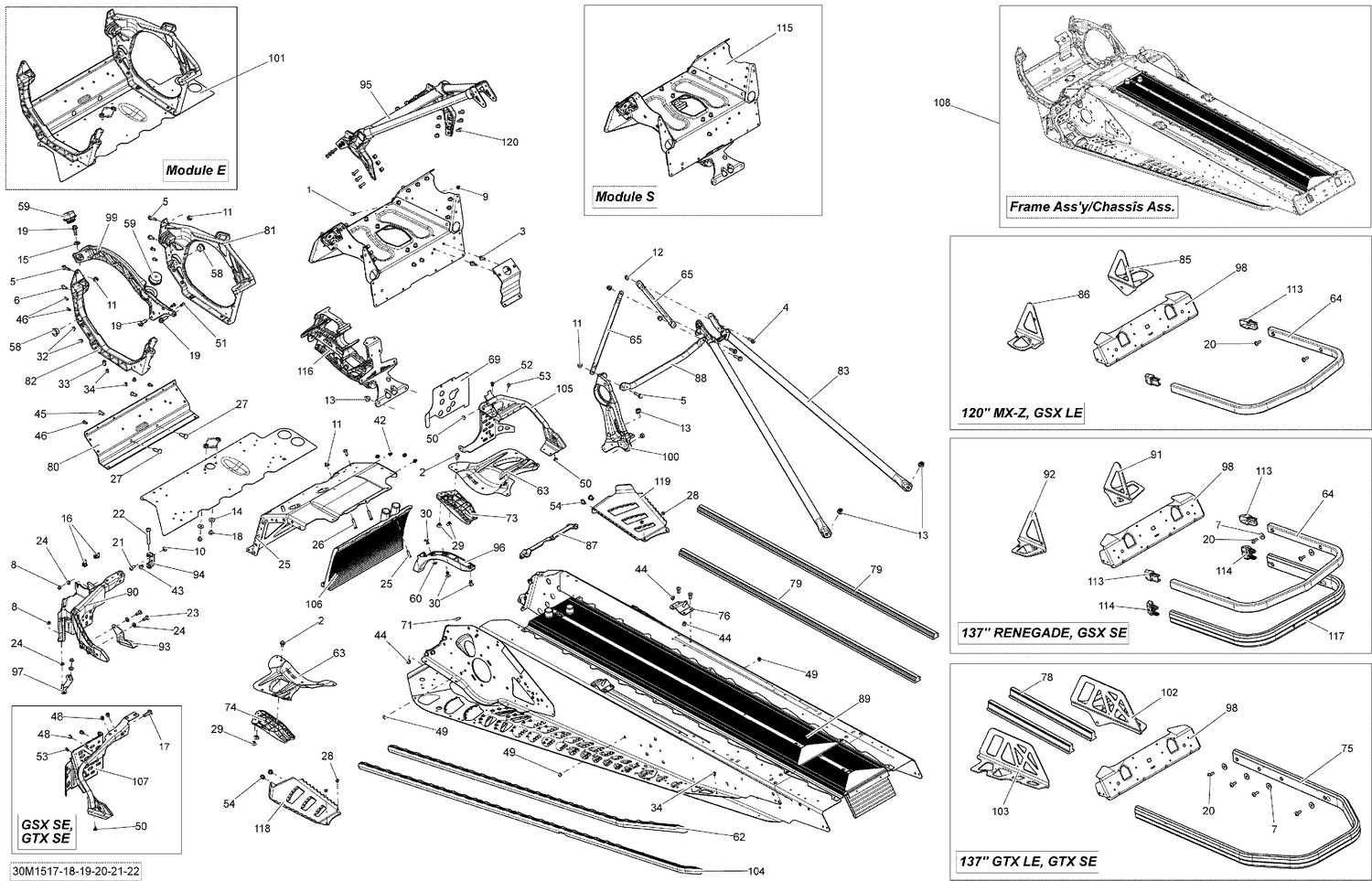

| Ref | Part Number | Description |
|---|
| 1 |
207161444 |
Hex. Screw M6 X 14 |
| 2 |
207561244 |
Hex. Flange Screw M6 X 12, Scotch Grip |
| 3 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 4 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 5 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 6 |
210261650 |
Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 7 |
XXX |
Not Available As Spare Parts |
| 8 |
232561414 |
Elastic Stop Nut M6 |
| 9 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 10 |
233061414 |
Hex. Flange Nut M6 |
| 11 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 12 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 13 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 14 |
234062410 |
Flat Washer 6 mm |
| 15 |
234281474 |
Conical Spring Washer M8 |
| 16 |
250000958 |
Panel Nut M5 X 0.8 This part replaces 250000079. |
| 17 |
250000752 |
Torx Screw M8 X 1.25 X 25, Scotch Grip This part replaces 250000248. |
| 18 |
250000349 |
Torx Truss Screw M6 X 10 |
| 19 |
250000351 |
Hex. Flange Screw M8 X 25, Nylon |
| 20 |
XXX |
Not Available As Spare Parts |
| 21 |
250000534 |
Tork Screw M6 X 16 |
| 22 |
250000535 |
Torx Screw M8 X 55 |
| 23 |
250000536 |
Tork Screw M6 X 18 |
| 24 |
250200039 |
Flat Washer |
| 25 |
250300027 |
Clinch Stud M6 X 20 |
| 26 |
250300031 |
Clinch Stud M6 X 30 |
| 27 |
250300038 |
Clinch Stud |
| 28 |
XXX |
Not Available As Spare Parts |
| 29 |
293150104 |
Pop Rivet 3/16" |
| 30 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
| 32 |
293150119 |
Hemlock Rivet, 6.5 mm |
| 33 |
293150120 |
Hemlock Rivet 6.5 mm |
| 34 |
293150144 |
Stavex Rivet |
| 42 |
293150146 |
Henrob Rivet |
| 43 |
293150266 |
Ornit Rivet 6,5 X 14.5 This part replaces 293150147. |
| 44 |
293150174 |
Hemlock Rivet, 6.4 mm |
| 45 |
293150182 |
Monobolt Rivet 6.4 |
| 46 |
293150191 |
Monobolt Rivet, 4.8 mm |
| 48 |
293450268 |
Insert M5 X 0.8 |
| 49 |
293730047 |
Black, Dart 8 mm |
| 49 |
293730060 |
Black, Dart 10 mm |
| 50 |
293730042 |
Full Moon Dart 5 mm |
| 51 |
390407200 |
Pop Rivet 3/16” |
| 52 |
390909100 |
Avex Rivet |
| 53 |
390909200 |
Avex Rivet |
| 54 |
293450275 |
Insert |
| 58 |
505073317 |
Leg Cushion |
| 59 |
512061516 |
Vibration Damper This part replaces 512060295. |
| 60 |
517124300 |
Washer |
| 62 |
518324812 |
RH Roller |
| 62 |
518324813 |
LH Roller |
| 63 |
518324874 |
RH Reinforcement |
| 63 |
518324875 |
LH Reinforcement |
| 64 |
518325481 |
Black Rear Bumper 137" |
| 65 |
518325114 |
Upper Lateral Column Support |
| 66 |
518325371 |
MAG Engine Support |
| 69 |
518325418 |
HEAT SHIELD - Call your local BRP dealership |
| 71 |
518325560 |
Adhesive Patch |
| 73 |
518325782 |
RH Deflector, Black Polypropylene |
| 74 |
518325783 |
LH Deflector, Black Polypropylene |
| 75 |
XXX |
Not Available As Spare Parts |
| 76 |
518325973 |
RH Rear Base |
| 76 |
518325974 |
LH Rear Base |
| 78 |
XXX |
Not Available As Spare Parts |
| 79 |
XXX |
Not Available As Spare Parts |
| 80 |
518326198 |
Front Member |
| 81 |
518326328 |
RH Side Member |
| 82 |
518326330 |
LH Side Member |
| 83 |
518326559 |
Rear Member |
| 85 |
518326654 |
RH SLIDE SUSPENSION BRACKET - Call your local BRP dealership |
| 86 |
518326655 |
LH SLIDE SUSPENSION BRACKET - Call your local BRP dealership |
| 87 |
518326656 |
Seal |
| 88 |
518326657 |
Center Column Support |
| 89 |
518326641 |
Rear Radiator Ass'y, 137" |
| 90 |
518326820 |
LH Stirup |
| 91 |
518326954 |
Rh Suspension Bracket |
| 92 |
518326955 |
LH Suspension Bracket |
| 93 |
518326960 |
Support |
| 94 |
518326961 |
U-Attach |
| 95 |
518326970 |
Front Member |
| 96 |
518326973 |
Front Tunnel Protector |
| 97 |
518326986 |
Attach |
| 98 |
518327105 |
Rear Cap |
| 99 |
518327392 |
Brace Ass'y |
| 100 |
518327460 |
Driven Pulley Support |
| 101 |
518327485 |
E MODULE - Call your local BRP dealership |
| 102 |
XXX |
Not Available As Spare Parts |
| 103 |
XXX |
Not Available As Spare Parts |
| 104 |
518325377 |
RH ROLLER - Call your local BRP dealership |
| 104 |
518327860 |
LH ROLLER - Call your local BRP dealership |
| 105 |
518328938 |
RH Stirup This part replaces 518327863. |
| 106 |
518327907 |
Front Radiator Ass'y |
| 107 |
518327935 |
LH STIRUP - Call your local BRP dealership |
| 108 |
415129910 |
FRAME ASS'Y - Call your local BRP dealership |
| 113 |
520000840 |
BLACK CAP - Call your local BRP dealership |
| 114 |
XXX |
Not Available As Spare Parts |
| 115 |
518328325 |
CROSS MEMBER S MODULE - Call your local BRP dealership |
| 117 |
XXX |
Not Available As Spare Parts |
| 118 |
XXX |
Not Available As Spare Parts |
| 119 |
XXX |
Not Available As Spare Parts |
