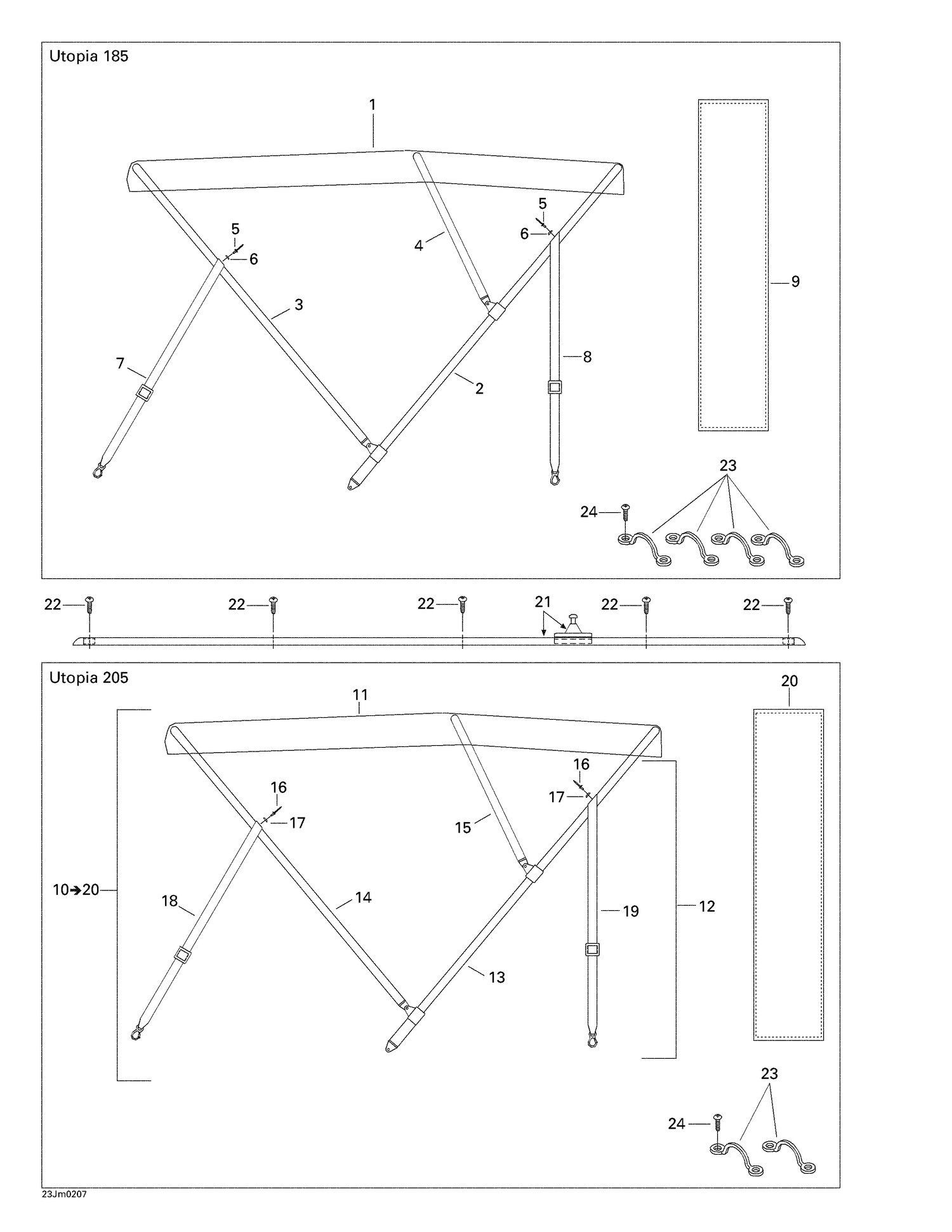

09- Bimini Convertible Top
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 11 | 204071606 | Bimini Top |
| 12 | 204071607 | Bimini Frame Ass’y |
| 13 | 204071608 | REAR BRACE - Call your local BRP dealership |
| 14 | 204071609 | FRONT BRACE - Call your local BRP dealership |
| 15 | 204071610 | Upper Brace |
| 16 | 293150039 | Pop Rivet 3/16" |
| 17 | Not | Available As Spare Part - Countersunk Washer |
| 18 | 204071611 | FRONT STRAP - Call your local BRP dealership |
| 19 | 204071612 | Rear Strap |
| 20 | 204071613 | Bimini Top Boot |
| 21 | 204071322 | Slide Rail |
| 22 | 204100049 | PHILLIPS TAPPING SCREW #8 X 1 - Call your local BRP dealership |
| 23 | 204070234 | Strap Tie |
| 24 | 209943260 | Phillips Tapping Screw M4.2 X 32 |
