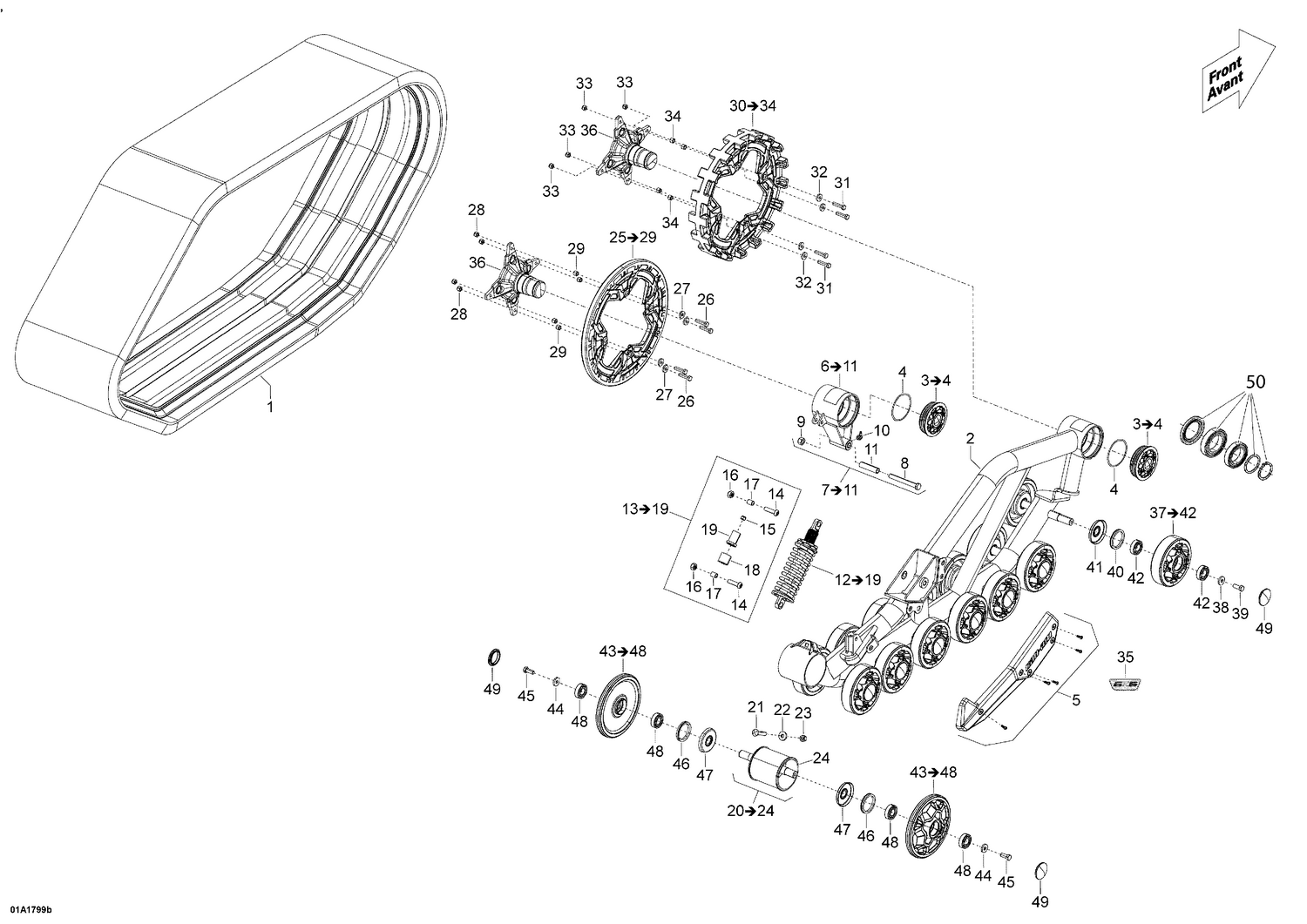

07- Rear Track — Parts Catalog

Parts (41)

Ref	Part Number	Description
1	705502334	Rear Track
2	715003066	LH Rear Frame With Tensioner
2	715003067	RH Rear Frame With Tensioner
4	Not	Available As Spare Part - O-Ring
5	715003069	REAR LEFT CAN-AM CAP WITH PLASTIC SNAP - Call your local BRP dealership
5	715003070	RH Cap (with Plastic Snap)
8	Not	Available As Spare Part - Hex. Screw M12 X 100
9	Not	Available As Spare Part - Hex. Nut M12
10	Not	Available As Spare Part - Grease Fit
11	Not	Available As Spare Part - Bushing
14	Not	Available As Spare Part - Button HD Torx Screw M10 x 40
15	Not	Available As Spare Part - Hex. Nut M8
16	Not	Available As Spare Part - Hex. Nut M10
17	Not	Available As Spare Part - Bushing
18	Not	Available As Spare Part - Polyurethane Bumper
19	Not	Available As Spare Part - Sleeve
21	Not	Available As Spare Part - Carriage Bolt M10 x 50
22	Not	Available As Spare Part - Flat Washer
23	Not	Available As Spare Part - Hex. Nut M10
24	Not	Available As Spare Part - Rear Tensioner
26	Not	Available As Spare Part - Hex. Screw M8 x 35
27	Not	Available As Spare Part - Flat Washer
28	Not	Available As Spare Part - Elastic Hex. Nut M8
29	Not	Available As Spare Part - Sleeve
31	Not	Available As Spare Part - Hex. Screw M8 x 35
32	Not	Available As Spare Part - Flat Washer
33	Not	Available As Spare Part - Elastic Hex. Nut M8
34	Not	Available As Spare Part - Sleeve
35	704904817	Apache 6X6 Decal
36	705402653	Main Axle - 360 This part replaces 705401210.
38	Not	Available As Spare Part - Flat Washer
39	Not	Available As Spare Part - Hex. Screw M10 x 25
40	Not	Available As Spare Part - Gasket
41	Not	Available As Spare Part - Wheel Washer
42	503190396	Ball Bearing
44	Not	Available As Spare Part - Flat Washer
45	Not	Available As Spare Part - Hex. Screw M10 x 25
46	Not	Available As Spare Part - Gasket
47	Not	Available As Spare Part - Wheel Washer
48	503190396	Ball Bearing
49	570063600	Wheel Cap
