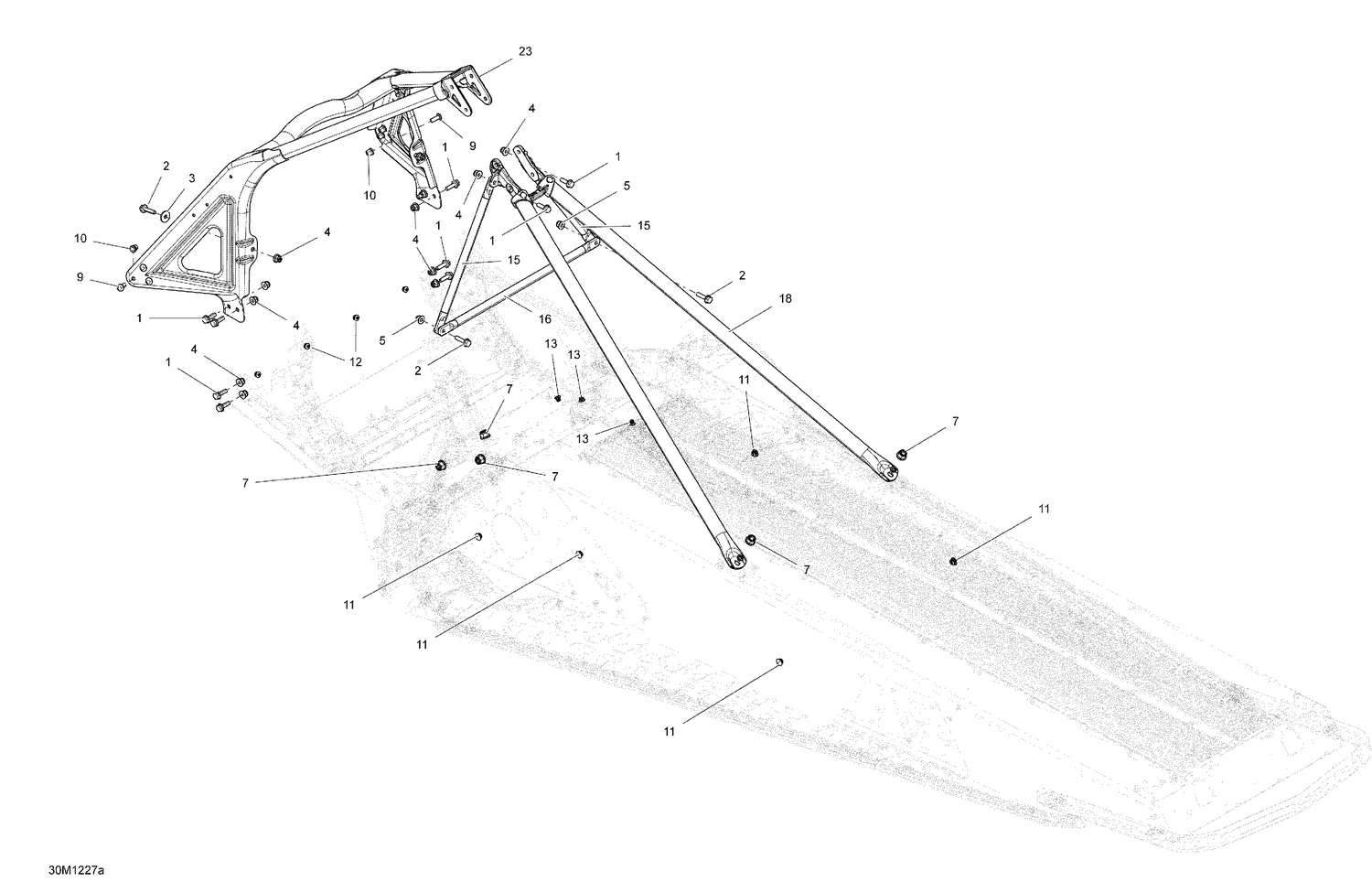

09- Frame Common Parts
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207662044 | Hex. Flange Screw M6 X 20 |
| 2 | 207662544 | Hex. Flange Screw M6 X 25 |
| 3 | 224061201 | Flat Washer |
| 4 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 5 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 7 | 233281414 | Hex. Flange Elastic Nut M8 |
| 9 | 207662044 | Hex. Flange Screw M6 X 20 |
| 10 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 11 | 293730041 | Full Moon Dart 8 mm |
| 12 | 390402200 | Pop Rivet 3/16" |
| 13 | 390402400 | Pop Rivet 3/16" |
| 15 | 518325114 | Upper Lateral Column Support |
| 16 | 518325115 | Center Column Support |
| 18 | 518326559 | Rear Member |
