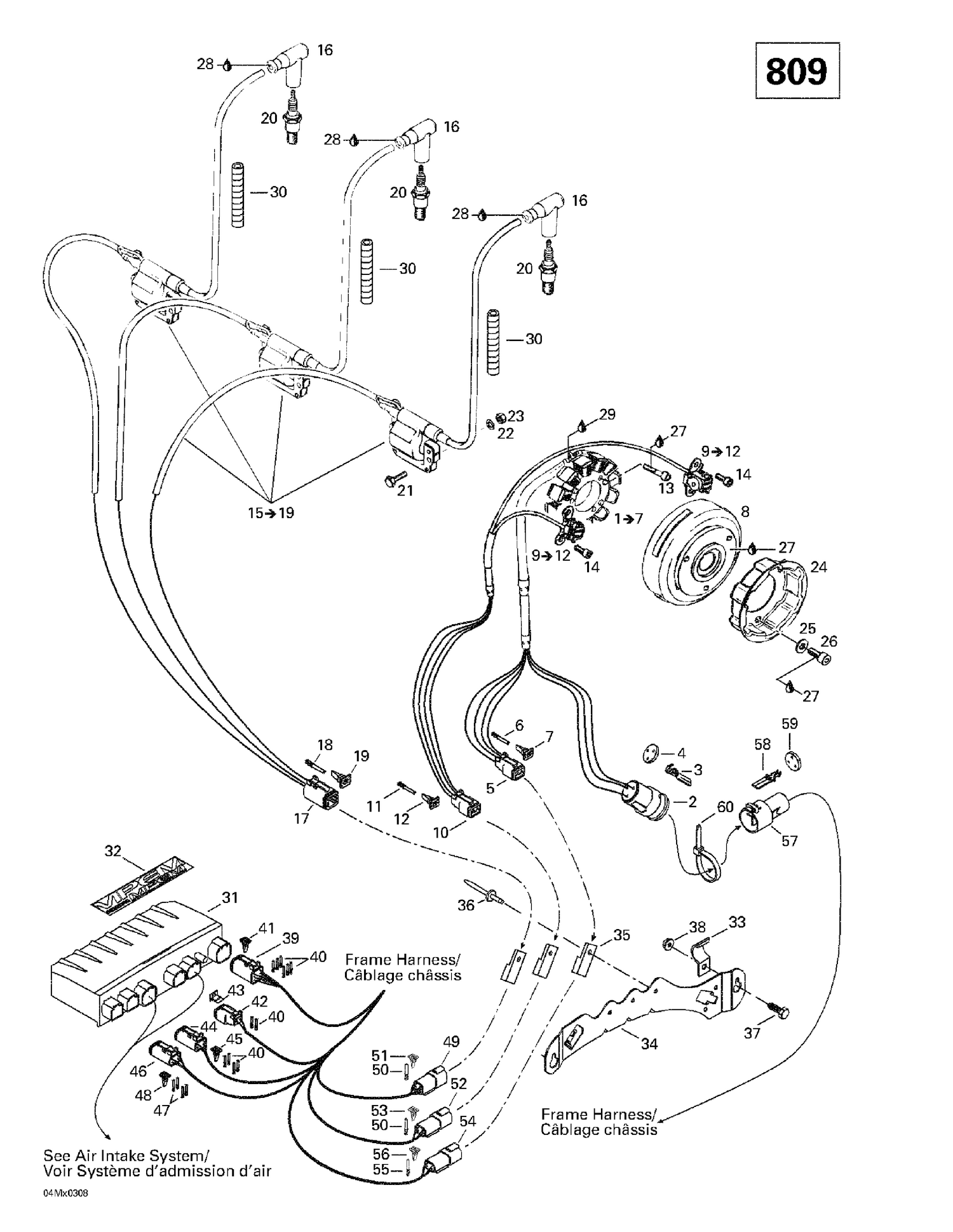

03- Magneto (12V, 290W)

03- Magneto (12V, 290W)

Parts (56)

RefPart NumberDescription
2 409208200 FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership
3 409011900 FEMALE TERMINAL - Call your local BRP dealership
4 409208500 SEAL - Call your local BRP dealership
5 515175245 Female Terminal Housing (4 circuits)
6 409015100 FEMALE TERMINAL - Call your local BRP dealership
7 515175246 Female Lock (4 circuits)
8 410922930 Magneto Flywheel
10 278000739 Male Connector, 4 Circuits
11 278000632 Female Terminal
12 278000738 Male Lock, 4 Circuits
13 420840887 SOCKET HEAD SCREW M6 X 30 - Call your local BRP dealership This part replaces 420840886.
14 420840391 Allen Screw M6 X 14
16 278000237 SPARK PLUG CAP - Call your local BRP dealership
17 710001540 CONNECTOR_MALE 6 CAVITIES - Call your local BRP dealership This part replaces 278000736.
18 278000632 Female Terminal
19 278000737 MALE LOCK, 6 CIRCUITS - Call your local BRP dealership
20 219703120 Spark Plug NGK BR9ES This part replaces 414961100.
21 207162044 Hex. Screw M6 X 20
22 420945751 WASHER-LOCK DIN.128 - Call your local BRP dealership
23 232061414 Hex. Nut M6
24 420852418 Starting Pulley
25 420827405 Flat Washer
26 420841520 Socket Head Screw M8 X 12
27 293800060 Loctite 243, 10 ml
28 219704453 Was 293550004 Dielectric Grease, 150 g
29 296000309 Silicone Sealant 51388, 300 ml
30 219704407 Tubing 10 MM 1000MM Long
31 512059292 Calibration Module
32 516000245 Electrical Box Decal
33 517274400 Bracket
34 515175148 Housing Support
35 270000141 Clip
36 Not Available As Spare Part - Pop Rivet 3/16"
37 207151444 Hex. Screw M5 X 14
38 233251434 Flange Elastic Nut M5 This part replaces 233251414.
39 710001540 CONNECTOR_MALE 6 CAVITIES - Call your local BRP dealership This part replaces 278000736.
40 278000632 Female Terminal
41 278000737 MALE LOCK, 6 CIRCUITS - Call your local BRP dealership
42 409207300 Female Connector, 2 Circuits
43 409207100 FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership
44 278000739 Male Connector, 4 Circuits
45 278000738 Male Lock, 4 Circuits
46 515175245 Female Terminal Housing (4 circuits)
47 409015100 FEMALE TERMINAL - Call your local BRP dealership
48 515175246 Female Lock (4 circuits)
49 710001539 Male Terminal Housing, 6 Circuits This part replaces 270000137.
50 278000631 Male Terminal
51 278000735 Female Lock, 6 Circuits
52 278000635 Female Housing, 4 Circuits
53 278000636 Female Wedge, 4 Circuits
54 710000045 MALE TERMINAL HOUSING, 4 CIRCUITS - Call your local BRP dealership
55 409014800 MALE TERMINAL - Call your local BRP dealership
56 710000046 MALE LOCK, 4 CIRCUITS - Call your local BRP dealership
57 409207900 MALE HOUSING - Call your local BRP dealership
58 409011100 MALE TERMINAL - Call your local BRP dealership
59 409208500 SEAL - Call your local BRP dealership
