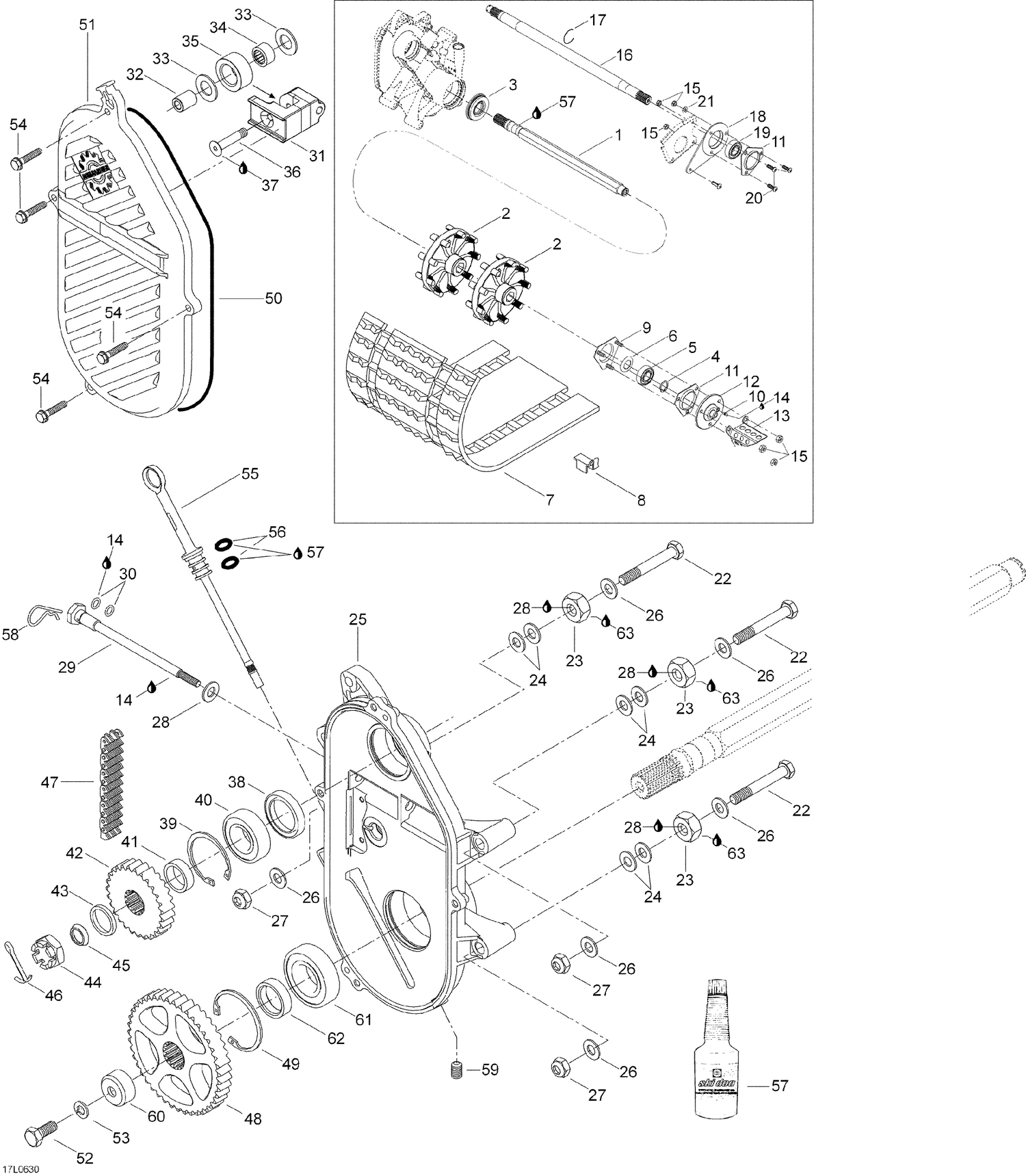

| Ref | Part Number | Description |
|---|
| 1 |
605253641 |
Drive axle |
| 2 |
414663900 |
Sprocket 9 teeth |
| 3 |
504151918 |
Oil seal |
| 4 |
31001 |
Circlip |
| 5 |
293350060 |
Ball Bearing This part replaces 504152009. |
| 6 |
501017400 |
BEARING PROTECTOR - Call your local BRP dealership |
| 8 |
415129528 |
Track Guide This part replaces 504152410. |
| 9 |
504151860 |
BEARING HOUSING - Call your local BRP dealership |
| 10 |
34011 |
Grease Fitting M6 x 1,00(1=10pcs) - Call your local BRP dealership |
| 11 |
501025000 |
FLANGE - Call your local BRP dealership |
| 12 |
504151836 |
Flange |
| 13 |
517290100 |
CABLE PROTECTOR - Call your local BRP dealership |
| 14 |
293550033 |
SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership |
| 15 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 16 |
504151858 |
COUNTERSHAFT - Call your local BRP dealership |
| 17 |
371910000 |
Circlip |
| 18 |
080044200 |
Casting Spacer |
| 19 |
504152008 |
BALL BEARING - Call your local BRP dealership |
| 20 |
40344 |
Socket head screw M8 x 25 |
| 21 |
234081410 |
Flat Washer 8 mm This part replaces 20004. |
| 22 |
40190 |
Hex, screw M10 x 80 |
| 23 |
504083800 |
Spacer |
| 24 |
504073700 |
WASHER - Call your local BRP dealership |
| 25 |
504153562 |
CHAINCASE - Call your local BRP dealership This part replaces 504152064. |
| 26 |
20005 |
WASHER M10 - Call your local BRP dealership |
| 27 |
33082 |
Elastic stop nut M10 |
| 28 |
293800060 |
Loctite 243, 10ml |
| 29 |
732601314 |
ADJUSTMENT SCREW - Call your local BRP dealership |
| 30 |
414484400 |
O-ring |
| 31 |
504081000 |
MACHINED TENSIONER - Call your local BRP dealership |
| 32 |
504080200 |
SPACER - Call your local BRP dealership |
| 33 |
504080300 |
WASHER - Call your local BRP dealership |
| 34 |
405403000 |
NEEDLE BEARING - Call your local BRP dealership |
| 35 |
414531300 |
ROLLER - Call your local BRP dealership |
| 36 |
732601144 |
SCREW - Call your local BRP dealership |
| 37 |
293800005 |
Loctite 271, 10ml |
| 38 |
504151927 |
SEAL - Call your local BRP dealership |
| 39 |
371901700 |
CIRCLIP - Call your local BRP dealership |
| 40 |
293350115 |
Ball Bearing This part replaces 504152006. |
| 41 |
504147200 |
SHIM - Call your local BRP dealership |
| 42 |
504071800 |
Sprocket Z17 |
| 43 |
504152049 |
SPACER - Call your local BRP dealership |
| 44 |
232210414 |
HEX. CASTELLATED NUT M16 - Call your local BRP dealership |
| 45 |
417000900 |
Washer |
| 46 |
41003 |
Pin |
| 47 |
504151883 |
DRIVING CHAIN (72 LINKS, NARROW) - Call your local BRP dealership |
| 49 |
415064300 |
CIRCLIP, INTERIOR - Call your local BRP dealership |
| 50 |
415046400 |
Seal |
| 51 |
504152471 |
CHAINCASE COVER - Call your local BRP dealership This part replaces 504152027. |
| 52 |
40040 |
Hex. screw M10 x 25 |
| 53 |
20068 |
Lock washer |
| 54 |
40340 |
Socket head screw M6 x 30 |
| 55 |
504151703 |
FILLER CAP ASS'Y - Call your local BRP dealership |
| 56 |
414969400 |
O-RING - Call your local BRP dealership |
| 57 |
413803300 |
SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership |
| 58 |
414575600 |
Hair Pin |
| 59 |
504151921 |
Plug |
| 60 |
501022400 |
Sleeve |
| 61 |
504152005 |
Ball bearing |
| 62 |
501021800 |
Sleeve |
