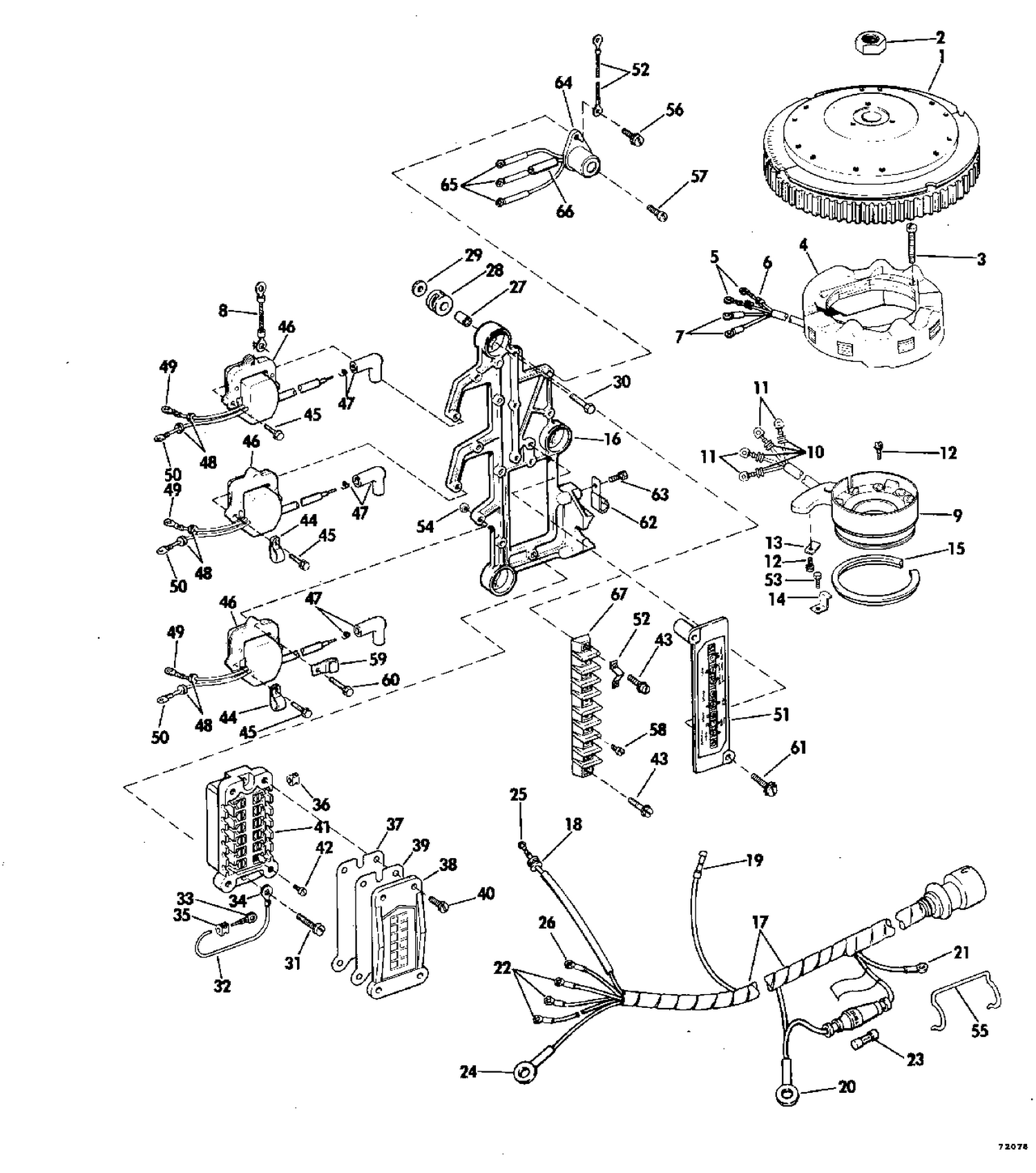

| Ref | Part Number | Description |
|---|
| 1 |
0583222 |
FLYWHEEL ASSY. This part replaces 0581545. |
| 2 |
0329267 |
NUT, Flywheel This part replaces 0314209. |
| 3 |
0325042 |
SCREW, Starter mounting This part replaces 0317599. |
| 4 |
0581235 |
STATOR ASSY, 6 amp |
| 8 |
0376349 |
FIL, masse |
| 9 |
0581251 |
TIMER BASE & SENSOR ASSY |
| 12 |
0511329 |
SCREW |
| 13 |
0510409 |
CLAMP, H.T. lead |
| 14 |
0314495 |
CLAMP, Distributor base |
| 15 |
0313666 |
RET., Distributor base 1 |
| 16 |
0318858 |
BRACKET |
| 17 |
0581745 |
MOTOR CABLE ASSY |
| 27 |
0302406 |
SLEEVE |
| 28 |
0315057 |
MOUNT, Bracket |
| 30 |
0306418 |
VIS, ancrage |
| 31 |
0310063 |
SCREW, Gearcase to housing This part replaces 0307062. |
| 32 |
0580895 |
LEAD ASSY ., Ground |
| 36 |
0510906 |
GROMMER,Power pack |
| 37 |
0320881 |
GASKET, Cover to pack |
| 38 |
0581976 |
COVER & TRANSFER ASSY. This part replaces 0581550. |
| 39 |
0320882 |
INSULATOR, Cover to case |
| 40 |
0323547 |
SCREW This part replaces 0321720. |
| 41 |
0582057 |
POWER PACK This part replaces 0581713. |
| 42 |
0312811 |
SCREW BREAKER TO BASE |
| 43 |
0510397 |
SCREW |
| 44 |
0333440 |
CLAMP, Battery cable This part replaces 0317755. |
| 45 |
0306409 |
VIS, collecteur vers carter-moteur |
| 46 |
0581611 |
COIL ASSY |
| 49 |
0510767 |
RING TERMINAL |
| 51 |
0387372 |
COVER ASSY |
| 52 |
0315004 |
FIL DE LIAISON, bornier |
| 57 |
0314576 |
SCREW |
| 58 |
0315003 |
SCREW, Teminal to terinmal block |
| 59 |
0310441 |
CLAMP, CPS lead This part replaces 0310493. |
| 60 |
0306418 |
VIS, ancrage |
| 61 |
0307152 |
SCREW, Cliipper assemlby |
| 62 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0310440. |
| 63 |
0313117 |
SCR,Clamp,eng cable |
| 66 |
0511050 |
TUBE, Heat shrink |
