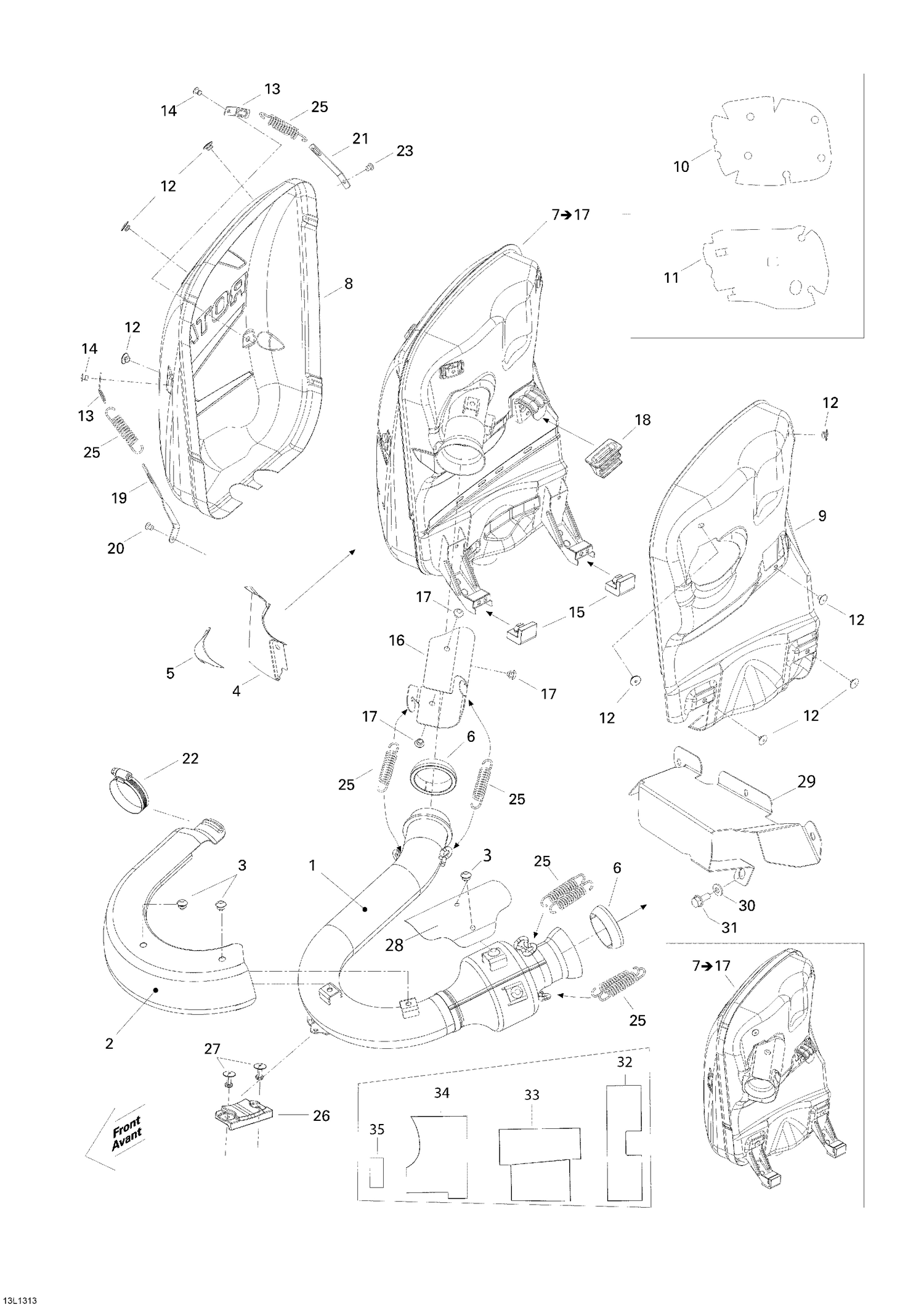

01- Exhaust System
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 514055076 | Tube assy This part replaces 514054947. |
| 2 | 514054397 | Deflector |
| 3 | 293150173 | Rivet 6,4 mm |
| 4 | 514054398 | REFLECTIVE SHEET - Call your local BRP dealership |
| 5 | 514054399 | REFLECTIVE SHEET - Call your local BRP dealership |
| 6 | 514054174 | Exhaust Gasket |
| 7 | 514054931 | Muffler Ass'y |
| 8 | 514054474 | RH HEAT SHIELD - Call your local BRP dealership |
| 9 | 514054369 | LH HEAT SHIELD - Call your local BRP dealership |
| 10 | 514054256 | INSULATING WOOL - Call your local BRP dealership |
| 11 | 514054257 | INSULATING WOOL - Call your local BRP dealership |
| 12 | 390910000 | Pop Rivet 3/16” |
| 13 | 514054522 | Spring Bracket |
| 14 | 390909200 | Avex Rivet |
| 15 | 514054529 | Lower Stopper |
| 16 | 514054396 | DEFLECTOR - Call your local BRP dealership |
| 17 | 293150173 | Rivet 6,4 mm |
| 18 | 514054346 | Stopper |
| 19 | 514055030 | Spring Bracket This part replaces 514054620. |
| 20 | 390909100 | Avex Rivet |
| 21 | 514054484 | SPRING BRACKET - Call your local BRP dealership |
| 22 | 293650036 | Clamp |
| 23 | 390909200 | Avex Rivet |
| 25 | 514054226 | Spring |
| 26 | 514054275 | Bumber |
| 27 | 293150103 | Pop Rivet 3/16 |
| 28 | 514054724 | DEFLECTOR - Call your local BRP dealership |
