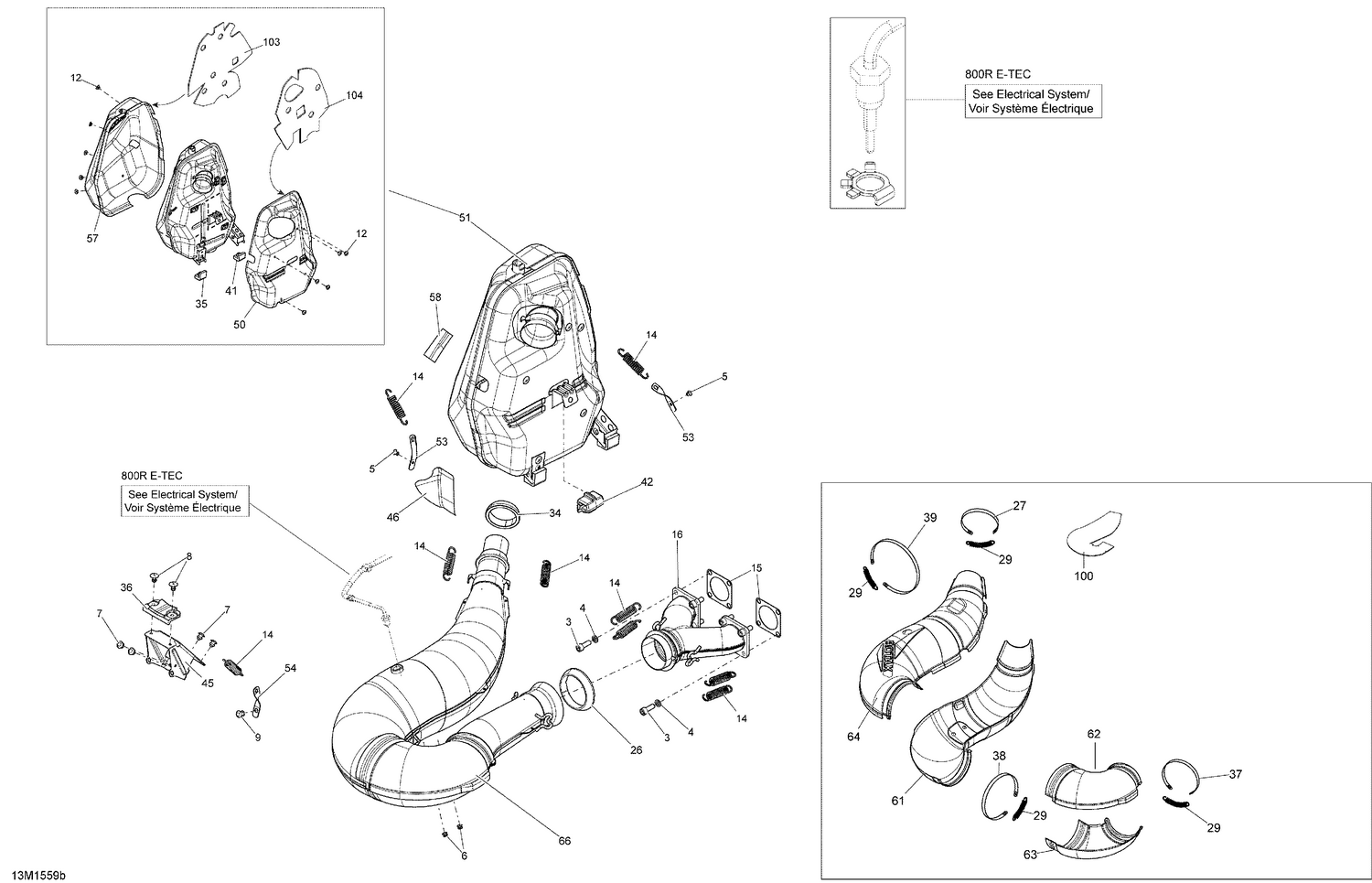

01- Exhaust System 800RETEC_13M1559
Parts (40)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 250000414 | Socket Head Screw M8 X 22 |
| 4 | 250200111 | Washer |
| 5 | 293150027 | Avdel Rivet |
| 6 | 293150091 | Henrob Rivet |
| 7 | XXX | Not Available As Spare Parts |
| 8 | 293150103 | Pop Rivet 3/16" |
| 9 | 293150266 | Ornit Rivet 6,5 X 14.5 This part replaces 293150147. |
| 11 | 390402200 | Pop Rivet 3/16" |
| 12 | 390910000 | Pop Rivet 3/16” |
| 14 | 415107100 | Spring |
| 15 | 420430482 | Gasket |
| 16 | 420673374 | Exhaust Manifold This part replaces 420673373. |
| 21 | 420850552 | Gasket |
| 26 | 514053487 | Exhaust Gasket |
| 27 | 514053499 | Retaining Strap |
| 29 | 514053643 | Spring |
| 33 | 514053953 | Washer |
| 34 | 514054174 | Exhaust Gasket |
| 35 | 514054274 | Lower Stopper |
| 36 | 514054275 | Bumper |
| 37 | 514054408 | Retaining Strap |
| 38 | 514054409 | Retaining Strap |
| 39 | 514054410 | Retaining Strap |
| 41 | 514054496 | Lower Stopper |
| 42 | 514054606 | Upper Stopper |
| 43 | 250001077 | Socket Head Screw Scotch Grip M6 X 20 This part replaces 514054626. |
| 50 | 514054967 | LH Deflector |
| 51 | 514055083 | Muffler Ass'y |
| 53 | 514054974 | Spring Bracket, 5mm hole |
| 54 | 514054975 | Spring Bracket, 8.0mm hole |
| 56 | 514054985 | RH Deflector |
| 57 | 514054986 | RH DEFLECTOR - Call your local BRP dealership |
| 58 | 514054987 | Heat Shield (Rectangle) |
| 61 | 514054990 | Rear Lower Half Enveloppe |
| 62 | 514054992 | Front Upper Half Enveloppe |
| 63 | 514054993 | Front Lower Half Enveloppe |
| 64 | 514055039 | Rear Upper Half Enveloppe |
| 66 | 514055063 | Exhaust Tuned Pipe |
| 100 | 514054487 | Insulating Wool |
| 103 | 514054711 | RH Insulating Wool |
