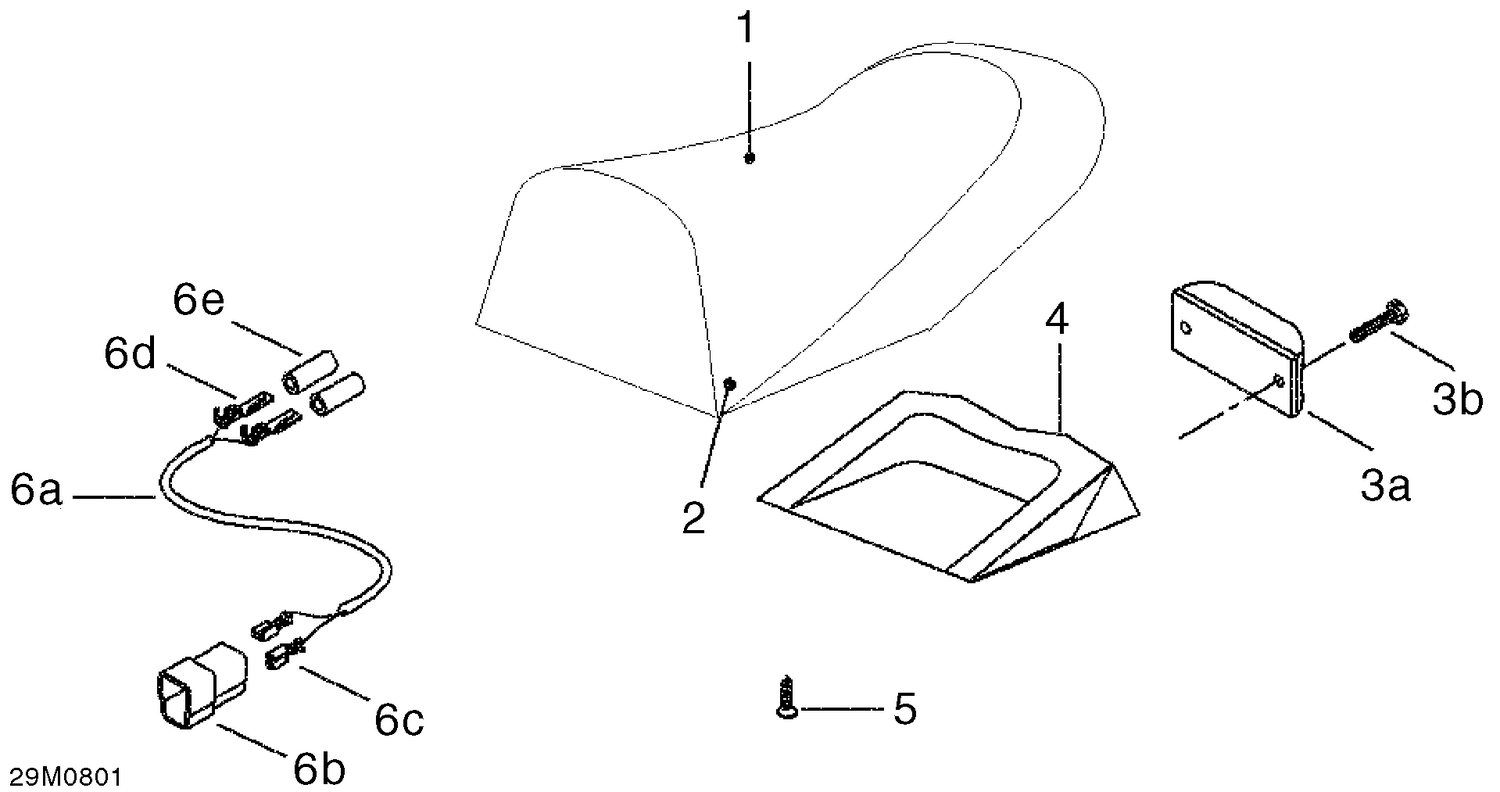

09- Seat
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 510004678 | Seat Cover |
| 2 | 510004035 | FOAM SEAT - Call your local BRP dealership |
| 3b | 209632540 | Phillips Tapping Screw M3.9 X 25 |
| 4 | 510004169 | Seat Moulding |
| 5 | 369903000 | Screw |
| 6b | 409204500 | MALE HOUSING - Call your local BRP dealership |
| 6c | 278001009 | Female Terminal |
| 6d | 409210000 | MALE TERMINAL - Call your local BRP dealership This part replaces 409206100. |
