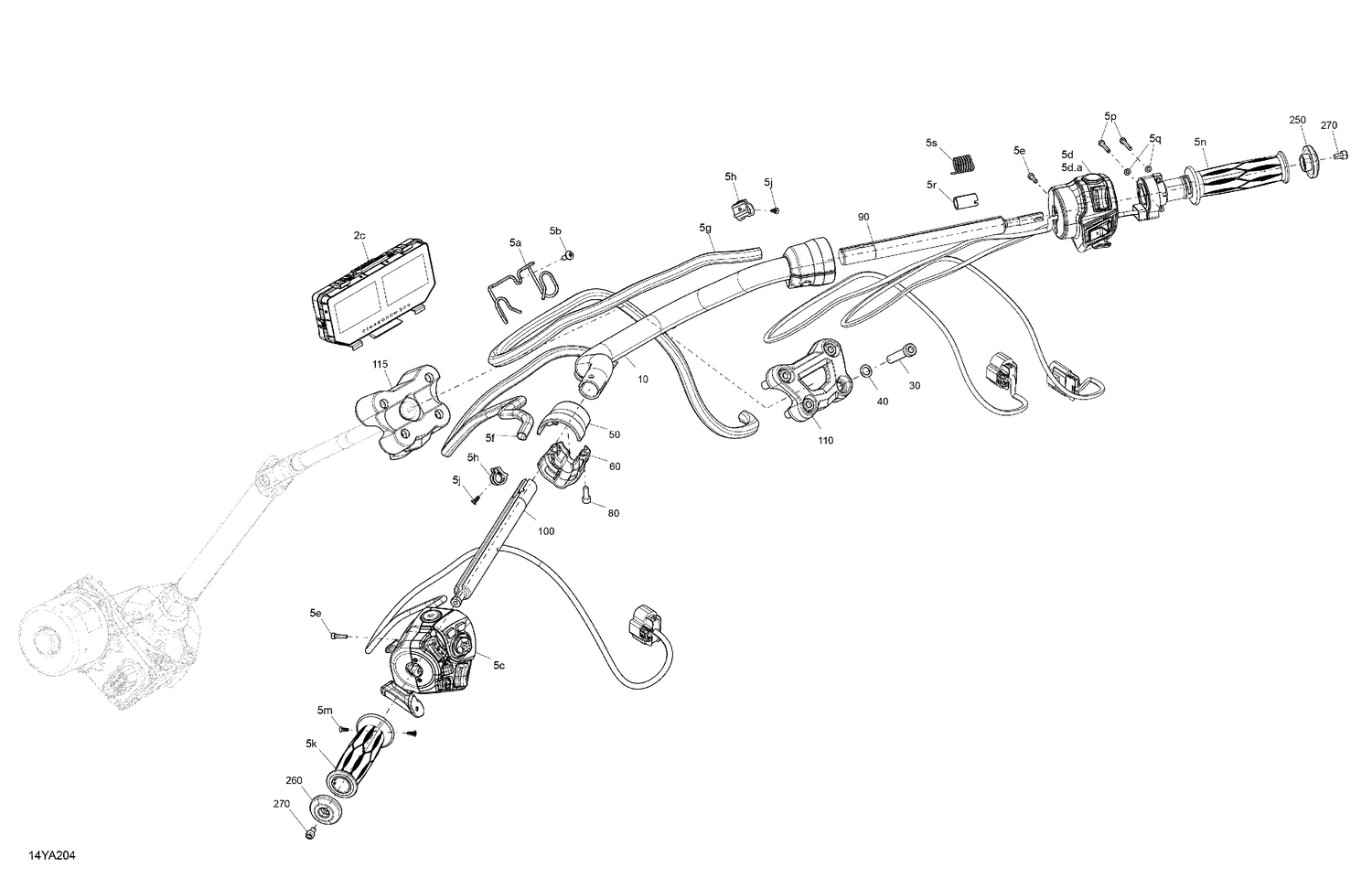

| Ref | Part Number | Description |
|---|
| 2c |
710007796 |
Full Size Color Multifunction Gauge |
| 5a |
709402446 |
Wiring Harness Support |
| 5b |
250000742 |
Torx Screw M5 X 14 |
| 5c |
710008090 |
LH Multi-Function Switch |
| 5e |
250000494 |
Socket Screw, M4 X 16 Scotch Grip |
| 5f |
710004231 |
Braided Sleeve |
| 5g |
710004231 |
Braided Sleeve |
| 5h |
709401804 |
Wire Guide |
| 5j |
250000453 |
Torx Cutting Screw, M4 X 10 |
| 5k |
709401054 |
Handle Grip |
| 5m |
250000453 |
Torx Cutting Screw, M4 X 10 |
| 5n |
709401055 |
Throttle Handle Grip |
| 5p |
205042594 |
Socket Screw, M4 X 25 |
| 5q |
234040600 |
Flat Washer 4 mm |
| 5r |
709401801 |
Bushing |
| 5s |
709401937 |
Spring |
| 10 |
709402241 |
Carbon Black, Handle Bar Textured |
| 30 |
250000997 |
Thin Socket Screw, Scotch Grip, M10 |
| 40 |
250200105 |
Stainless Flat Washer, 10 mm |
| 50 |
709401914 |
Carbon Black, Upper Clamp |
| 60 |
709401916 |
Carbon Black, Lower Clamp |
| 80 |
205561660 |
Socket Head Screw M6 X 16, Scotch Grip |
| 90 |
709401939 |
RH Handlebar Tube |
| 100 |
709401952 |
LH HandleBar Tube |
| 110 |
709401904 |
Black, Central Handle Clamp |
| 115 |
709401906 |
Black, Central Handle Support |
| 250 |
709402591 |
RH Handlebar End Piece |
| 260 |
709402592 |
LH Handlebar End Piece |
