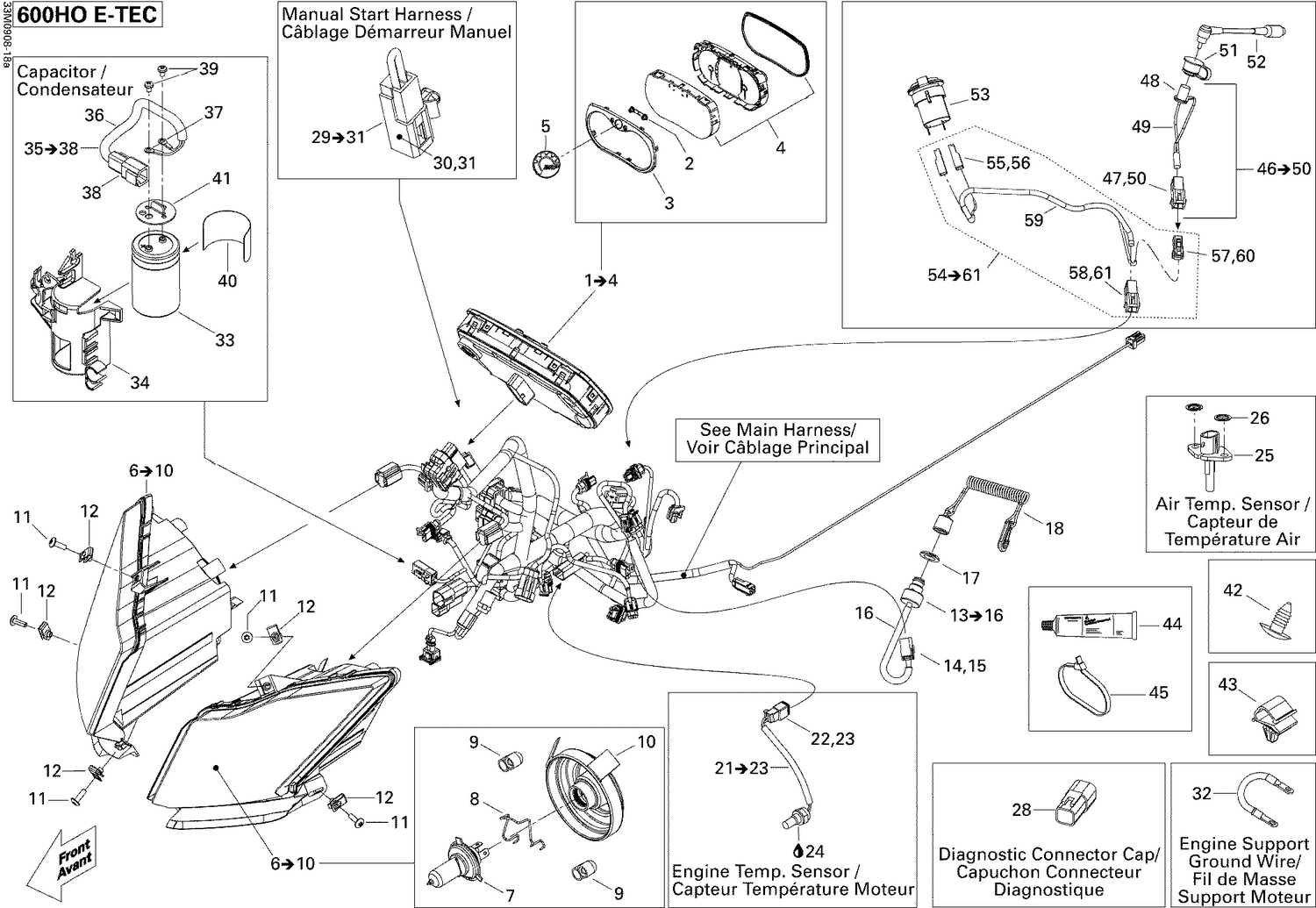

10- Electrical System

10- Electrical System

Parts (53)

RefPart NumberDescription
2 415129355 Speedometer Button
3 415129348 Gauge Ring
4 415129349 Lens
5 516006224 BRP Logo 20MM x 2MM This part replaces 219902677.
7 515176274 Halogen Bulb, 60/55 W, 12 V ( H4 )
8 Not Available As Spare Part - Bulb Holder
9 515176498 Cap
10 219800280 Rubber Cap Protector This part replaces 515176499.
11 250000722 Torx Screw M6 X 20 This part replaces 250000128.
12 250100198 Panel Nut M6 X 1.0 This part replaces 250000048.
14 515175232 Male Terminal
15 515175494 Male Housing, 3 Circuits
16 409902000 Tubing 12 mm
17 278002963 Safety Nut (DESS Switch) This part replaces 278000508.
18 515178284 DESS This part replaces 515176461.
22 515175670 Female Terminal Housing, 2 Circuits
23 278000632 Female Terminal
24 219704455 Was 293800018 Loctite 592, 50 ml
25 515176366 Air Temperature Sensor
26 389804300 Push Nut
28 515176234 FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership
30 515175232 Male Terminal
31 710000667 Male Housing, 2 Circuits
32 515176358 Ground Wire
33 515177272 Capacitor This part replaces 515176349.
34 515176607 Capacitor Support
36 219704425 Tubing 6 Mm 3000Mm Long
37 515175504 Ring Terminal
38 278001674 Mâle Terminal Housing, 2 Circuits
39 515176542 SCREW 10-32 X 5/16 - Call your local BRP dealership
40 516002976 CAPACITOR DECAL - Call your local BRP dealership
41 515177193 Cap This part replaces 515176351.
42 414644300 Black, Dart
43 515176795 Tie Rap Mount (screwable)
44 219704453 Was 293550004 Dielectric Grease, 150 g
45 293750001 Tie Wrap 94 mm
45 293750002 Tie Wrap 142 mm
45 293750008 Tie Wrap 368 mm
45 414115200 Tie-Rap 180 mm
47 515175232 Male Terminal
48 515175172 OPEN BARREL - Call your local BRP dealership
49 219704424 Vinyl Tubing, Low Temp 3000Mm Long
50 515175654 Male Terminal Housing, 2 Circuits
51 572103300 Cap
52 515175851 Extension
53 710001248 DC Outlet
54 515176527 Power Outlet Harness - Call Your Local BRP Dealership
55 409010100 Female Terminal
56 409010400 Female Terminal Housing, 1 Circuit
57 515175232 Male Terminal
58 515175231 Female Terminal
59 219704425 Tubing 6 Mm 3000Mm Long
60 515175654 Male Terminal Housing, 2 Circuits
