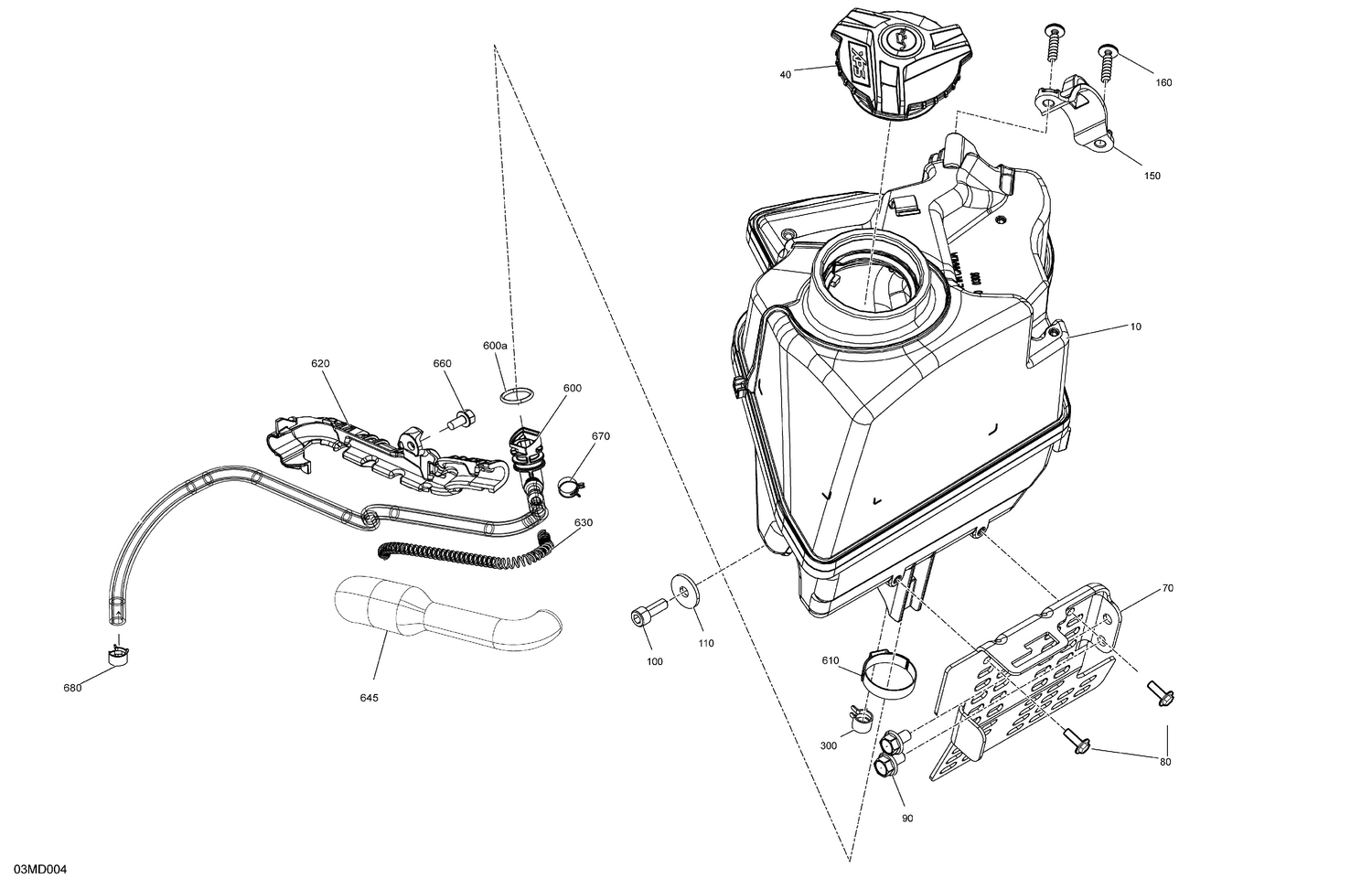

02- Engine - Oil
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 861805557 | Oil Tank Kit |
| 40 | 519000373 | Oil Tank Cap Ass'y |
| 70 | 861805524 | Oil Tank Support Kit |
| 80 | 243141630 | Hex. Plastic Screw M4.8 X 16 |
| 90 | 207561044 | Flange Screw M6 X 10, Scotch Grip |
| 100 | 205561644 | Socket Screw M6 X 16, Scotch Grip |
| 110 | 224061201 | Flat Washer |
| 150 | 519000320 | Clamp |
| 160 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 300 | 414420700 | Spring Clamp |
| 600a | 519000242 | Oil Filter |
| 610 | 293650099 | Crimp Clamp |
| 620 | 512061386 | Hose Guide |
| 630 | 519000352 | Spring |
| 645 | 219704350 | Tube 25Mm 1000Mm Long |
| 660 | 210261250 | Hex. Flange Screw M6 X 12 |
| 670 | 414415200 | Spring Clamp |
