Home / BRP / 2008 / Xtrim / Xtrim 600 SDI, 2008 / 01- Crankcase

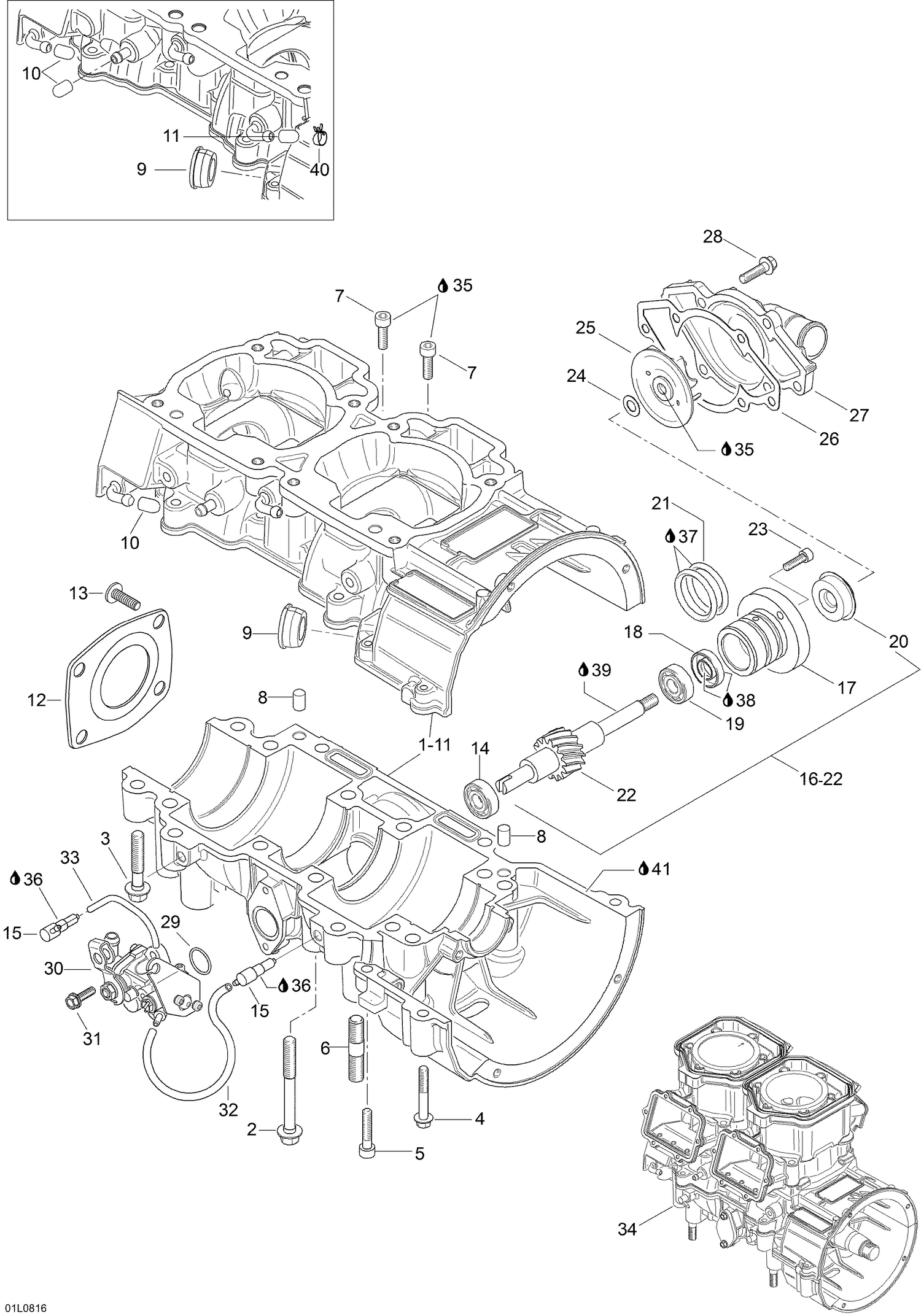

01- Crankcase

01- Crankcase

Parts (38)

RefPart NumberDescription
2 420640836 Hex. Collar screw M8 x 75
3 420640433 Collar Hex Screw M8 X 45 This part replaces 420640431.
4 420640312 Hex. Collar Screw M6 X 45 This part replaces 420640311.
5 205063044 Allen screw M6x30 This part replaces 420840880.
6 420641834 STUD M10 X 29 - Call your local BRP dealership
7 420840403 Socket Head Screw M6 X 22 This part replaces 420840401.
8 420632010 Center Pin 8 X 12
9 420860965 Kaapelin läpivienti
10 420960770 Closure cap
11 420960777 CAP - Call your local BRP dealership
12 420812422 Oil Seal Cover This part replaces 420812420.
13 420941436 Screw M6 X 20 This part replaces 420941430.
14 420232100 Ball Bearing
15 420956511 Check Valve This part replaces 420956510.
17 Not Available As Spare Part - Step collar
18 420230195 Oil seal This part replaces 420230196.
19 420232100 Ball Bearing
20 420650371 Rotary Seal This part replaces 420650370.
21 420950890 O-Ring
22 Not Available As Spare Part - Waterpump/oilpump shaft
23 420840514 Allen Screw M5 x 16 This part replaces 420840511.
24 420227945 Thrust washer
25 420222505 Water impeller
26 420931811 Gasket This part replaces 420931810.
27 420922630 Water pump housing
28 420240034 Hex. Screw M6 x 25 This part replaces 420240031.
29 293300041 O-Ring This part replaces 420230400.
30 420888780 Oil pump ass'y (600)
31 420941928 Taptite Screw M5 X 16 This part replaces 420941925.
32 414413800 Oil line P.T.O side 115 mm
33 414413800 Oil line P.T.O side 115 mm
34 300059371 Short block engine
35 293800060 Liima Loctite 243, 10ml
36 219703000 Sealant Loctite 648 This part replaces 413711400.
37 413707000 Dow Corning 111, 150 G
38 420899271 Klueber petamo, 250gr. Chy 133
39 779120 NEEDS DESCRIPTION This part replaces 413803000.
40 414420700 Universal Spring Clamp
