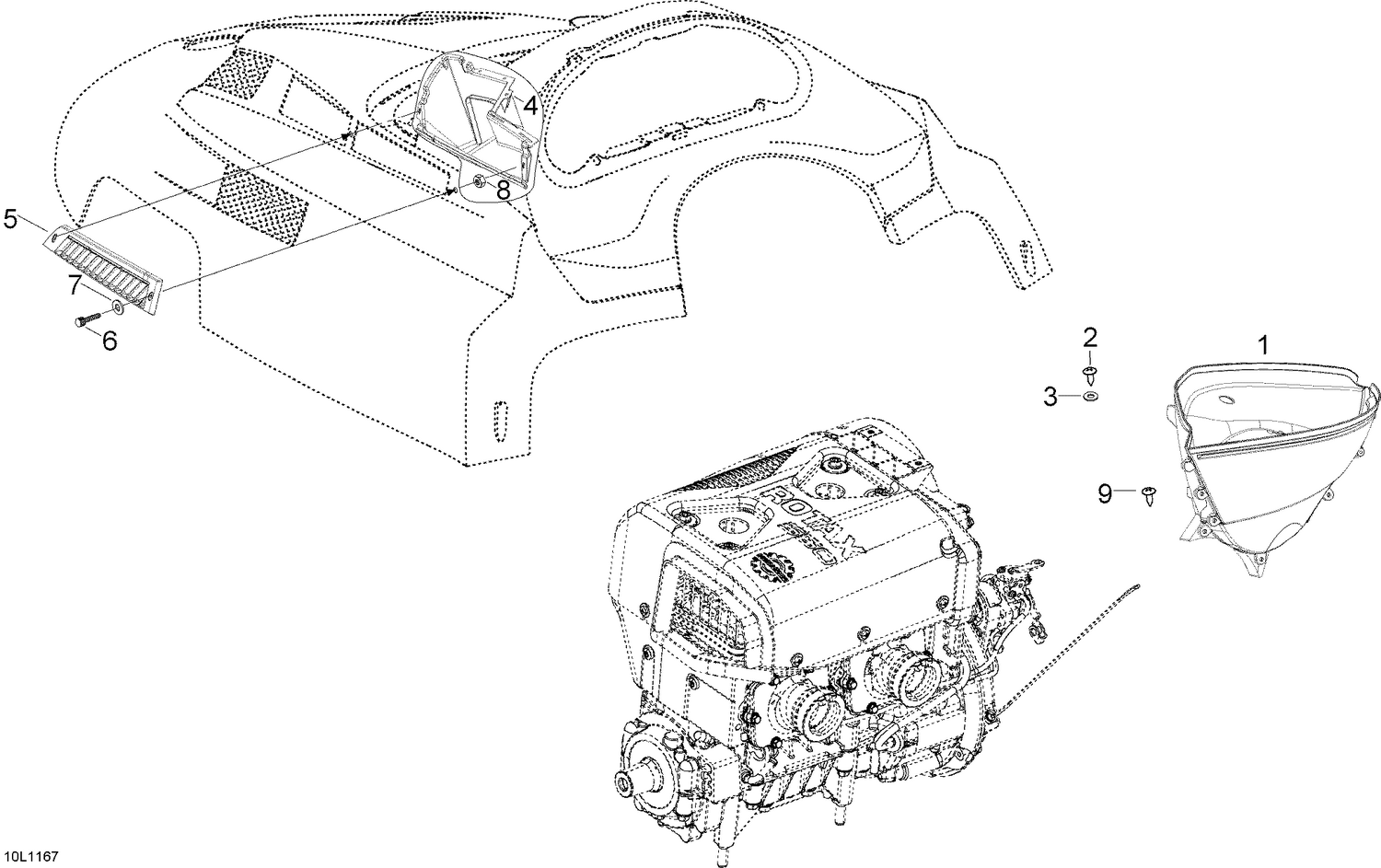

01- Fan Housing 2
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 605155173 | COOLING CHANNEL ASS'Y - Call your local BRP dealership |
| 2 | 250000202 | Self Tapping Screw #8 X 5/8 This part replaces 250000222. |
| 3 | 391301600 | Washer |
| 4 | 605354585 | Cooling channel - Call your local BRP dealership |
| 5 | 605354586 | Cooling channel - Call your local BRP dealership |
| 6 | 250000724 | Torx Screw M5 X 20 This part replaces 250000130. |
| 7 | 20008 | Washer 5,3 mm |
| 8 | 33009 | Elastic stop nut M5 |
