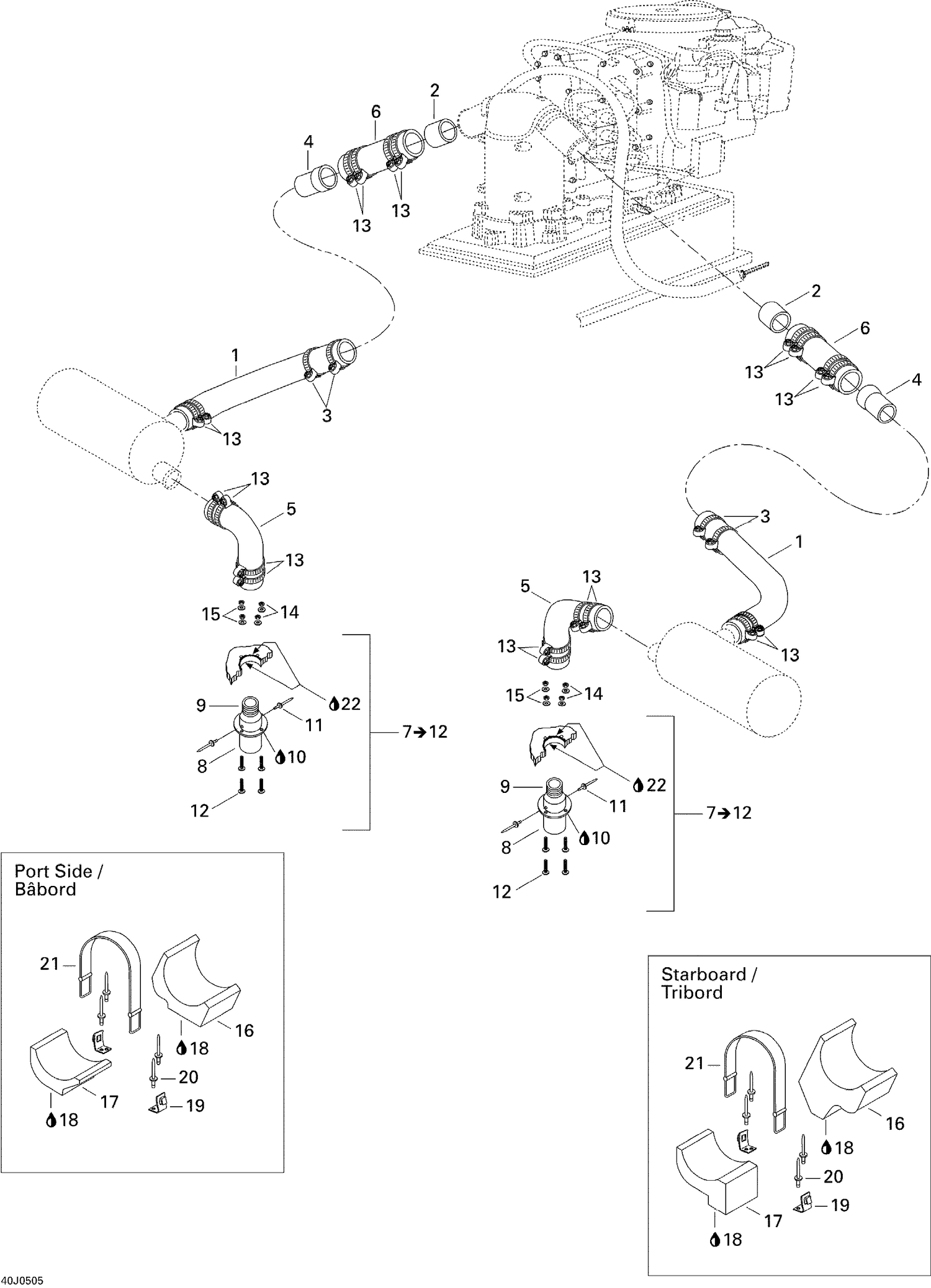

01- Exhaust System
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 204340408 | Exhaust Hose |
| 2 | 204340403 | Exhaust Spacer |
| 3 | 293650064 | Tridon Clamp |
| 4 | 204340402 | Exhaust Adaptor |
| 5 | 204340368 | Exhaust Hose |
| 6 | 204340256 | Exhaust Hose, Meter |
| 8 | Not | Available As Spare Part - Exhaust Extension Outlet |
| 9 | 204340229 | Exhaust Outlet |
| 10 | Not | Available As Spare Part - Adchem Glue |
| 11 | 293150043 | Pop Rivet 3/16" |
| 12 | 208663560 | PHILLIPS SCREW M6 X 35 - Call your local BRP dealership |
| 13 | 293650112 | Tridon Clamp |
| 14 | 232561600 | Hex. Elastic Stop Nut M6 |
| 15 | 234061600 | Stainless Flat Washer M6 |
| 16 | 204340307 | Outer Muffler Support, Port Side |
| 16 | 204340395 | Outer Muffler Support, Starboard |
| 17 | 204340372 | Inner Muffler Support, Port Side |
| 17 | 204340373 | Inner Muffler Support, Starboard |
| 18 | Not | Available As Spare Part - Adchem Glue |
| 19 | 204060017 | Strap Clip 90° |
| 20 | 293150088 | Pop Rivet 3/16" |
| 21 | 293850022 | STRAP - Call your local BRP dealership |
