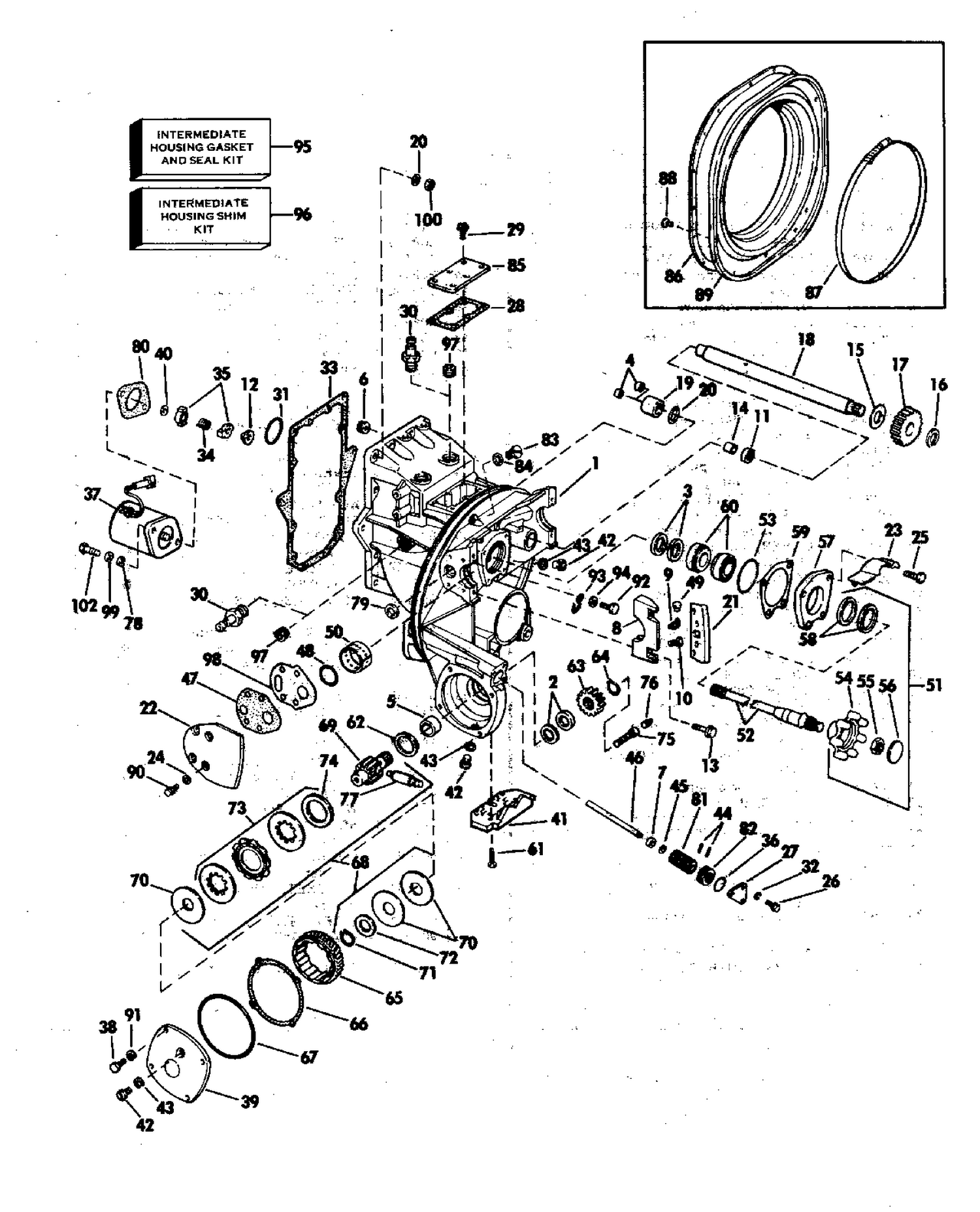

| Ref | Part Number | Description |
|---|
| 1 |
0982878 |
INTERMEDIATE HOUSING |
| 3 |
0313992 |
OIL RETAINER, Shaft |
| 4 |
0910594 |
BEARING, Front |
| 4 |
0910595 |
ADAPTER, Front |
| 5 |
0909501 |
BUSHING |
| 6 |
0908276 |
CAP PLUG |
| 7 |
0909499 |
BUSHING, Tilt worm shaft |
| 8 |
0909578 |
PIVOT CAP |
| 10 |
3852459 |
SCREW, Switch This part replaces 0908769. |
| 11 |
0908855 |
SEA>, Steering shaft |
| 12 |
0909513 |
REATINER , Nylon |
| 13 |
0910457 |
SCREW, Pivot cap |
| 14 |
0910596 |
BEARING, Rear |
| 15 |
0908865 |
WASHER |
| 16 |
0911316 |
RETAINING RING This part replaces 0313238. |
| 17 |
0908461 |
GEAR, Shaft |
| 18 |
0908020 |
SHAF, Steering pulley |
| 19 |
0908022 |
SPACER |
| 20 |
0908060 |
BOW WASHER, Shoulder screw |
| 21 |
0909512 |
BUMPER |
| 22 |
0909516 |
COVER, Pivot cap |
| 23 |
0909267 |
WATER DEFLECTOR, Bail gear |
| 25 |
0341013 |
SCREW, Cover This part replaces 0908668. |
| 27 |
0909387 |
RETAINER PLAT |
| 28 |
0313246 |
GASKET, Cover |
| 29 |
0307195 |
SCREW RECTIFIER MOUNTING |
| 30 |
0908196 |
NIPPLE |
| 33 |
0909515 |
GASKET |
| 34 |
0309267 |
SPRING |
| 35 |
0980274 |
COUPLING & KEY |
| 37 |
0982706 |
TILT MOTOR ASSEMBLY |
| 39 |
0908564 |
COVER |
| 40 |
0310612 |
WASHER |
| 41 |
0982438 |
GOUND PLATE |
| 44 |
0309525 |
PIN, Tilt worm shaft |
| 45 |
0309272 |
WASHER |
| 46 |
0980183 |
SHAFT, Tilt worm |
| 47 |
0909529 |
GASKET |
| 48 |
0308626 |
O RING |
| 49 |
0908247 |
CAP |
| 50 |
0308602 |
LINER |
| 51 |
0981550 |
D'SHAFT & BALL GEAR ASSY |
| 52 |
0909044 |
DRIVESHAFT |
| 53 |
0908383 |
O RING, Retainer |
| 54 |
0908063 |
BALL GEAR |
| 55 |
0908064 |
NUT |
| 56 |
0908062 |
PLUG, Bail gear |
| 57 |
0981554 |
REATINER & SEAL ASSY |
| 59 |
0909502 |
SHIM , Seal retainer, .002" |
| 59 |
0909503 |
SHIM, Seal retainer, .003" |
| 59 |
0909504 |
SHIM, Seal retainer, .004" |
| 59 |
0909505 |
SHIM, Seal retainer, .005" |
| 59 |
0909506 |
SHIM, Seal retainer, .006" |
| 59 |
0909507 |
SHIM, Seal retainer, .007" |
| 59 |
0909508 |
SHIM, Seal retainer, .008" |
| 59 |
0909509 |
SHIM, Seal retainer, .009" |
| 59 |
0909510 |
SHIM, Seal retainer, ,010" |
| 60 |
3854250 |
BEARING, Driveshaft, upper This part replaces 0979986. |
| 61 |
0312978 |
SCREEN, Ground plt to intmd hsg |
| 62 |
0308800 |
THRUST WASHER |
| 63 |
0308453 |
GEAR |
| 64 |
0911318 |
RETAINING RING This part replaces 0308633. |
| 65 |
0308806 |
WORM WHEEL |
| 66 |
0308799 |
GASKET |
| 68 |
0983384 |
TILT CLUTCH ASSY This part replaces 0983040. |
| 69 |
0983303 |
SHAFT, Tilt clutch This part replaces 0983039. |
| 70 |
0308809 |
BELLEVILLE SPRING |
| 71 |
0309844 |
RETAINING RING |
| 72 |
0309845 |
SPACER |
| 73 |
0983171 |
CLUTCH DISC PKG |
| 74 |
0910676 |
END PLATE |
| 75 |
0910675 |
SCREW, Adjustment |
| 76 |
3852461 |
Plug This part replaces 0910811. |
| 77 |
0910677 |
CROSS BAR |
| 78 |
0306453 |
LOCKWASHER, Fuel pump |
| 79 |
0313244 |
SEAL |
| 80 |
0909902 |
GASKET, Tilt motor |
| 81 |
0908168 |
WORM |
| 82 |
0980182 |
RETAINER & BUSHING |
| 83 |
0313224 |
PLUG,Oil fill |
| 84 |
0315189 |
GASKET, Oil indicator |
| 85 |
0313247 |
COVER, Oil reservoir |
| 86 |
0911827 |
PLATE, Transom seal This part replaces 0909526. |
| 87 |
0981679 |
CLAMP, Seal |
| 89 |
0909527 |
SCREW, Transom |
| 90 |
0909533 |
SCREW, Pressure relief valve cover |
| 93 |
0910569 |
RETAINER, Shift cable |
| 95 |
0982948 |
INTER. HOUSING GASKET & SEAL KIT |
| 96 |
0982053 |
INTER HOUSING SHIM KIT |
| 97 |
0908276 |
CAP PLUG |
| 98 |
0909528 |
PLATE, Cover |
| 100 |
0313457 |
NUT, Adapter stud |
| 101 |
0306453 |
LOCKWASHER, Fuel pump |
| 0981558 |
0981558 |
RANSOM SEAL ASY, Oval |
