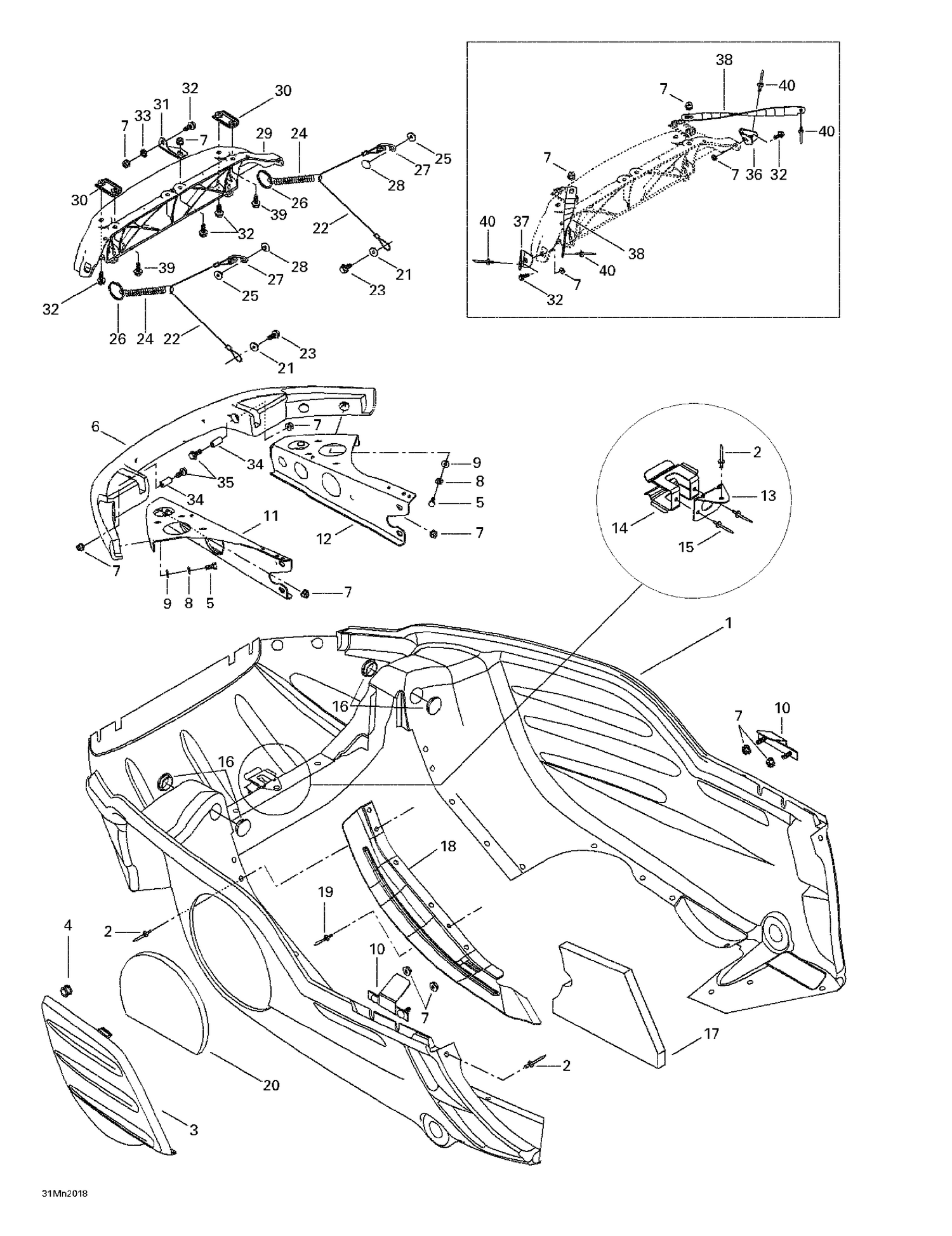

09- Bottom Pan
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 4 | 414036300 | Grommet |
| 5 | 207161444 | Hex. Screw M6 X 14 |
| 7 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 8 | 234161471 | Lock Washer M6, Black |
| 9 | 224061121 | Flat Washer |
| 10 | 502006500 | Bracket |
| 11 | 502006597 | LH SUPPORT - Call your local BRP dealership |
| 12 | 502006596 | RH Support |
| 13 | 502006599 | Belt Support |
| 14 | 517281905 | Bracket |
| 15 | 390402400 | Pop Rivet 3/16" |
| 16 | 414916600 | Black, Nylon Cap |
| 17 | 502006558 | Bottom Foam |
| 20 | 502006559 | Bottom Pan Door Foam |
| 21 | 391301600 | Washer |
| 22 | 415093900 | RETAINER CABLE - Call your local BRP dealership |
| 23 | Not | Available As Spare Part - Hex. Tapping Screw |
| 24 | 415043300 | Spring |
| 25 | 517124300 | Washer |
| 26 | 415058300 | RING - Call your local BRP dealership |
| 27 | 517262800 | Bracket |
| 28 | 293150104 | Pop Rivet 3/16" This part replaces 390409600. |
| 29 | 517302631 | Hinge This part replaces 517302004. |
| 30 | 517302176 | HINGE SIDE PLATE - Call your local BRP dealership |
| 31 | 517302045 | Hinge Center Plate |
| 32 | 207661654 | Hex. Flange Screw M6 X 16 This part replaces 207661684. |
| 33 | 250200041 | Lock Washer Serrated M6 This part replaces 250200000. |
| 34 | 517302179 | BUSHING - Call your local BRP dealership |
| 35 | 207663544 | Hex. Flange Screw M6 X 35 |
| 36 | 517302254 | RH Corner Support |
| 37 | 517302255 | LH Corner Support |
| 38 | 517302256 | Hood Clamp |
| 39 | 207662544 | Hex. Flange Screw M6 X 25 |
