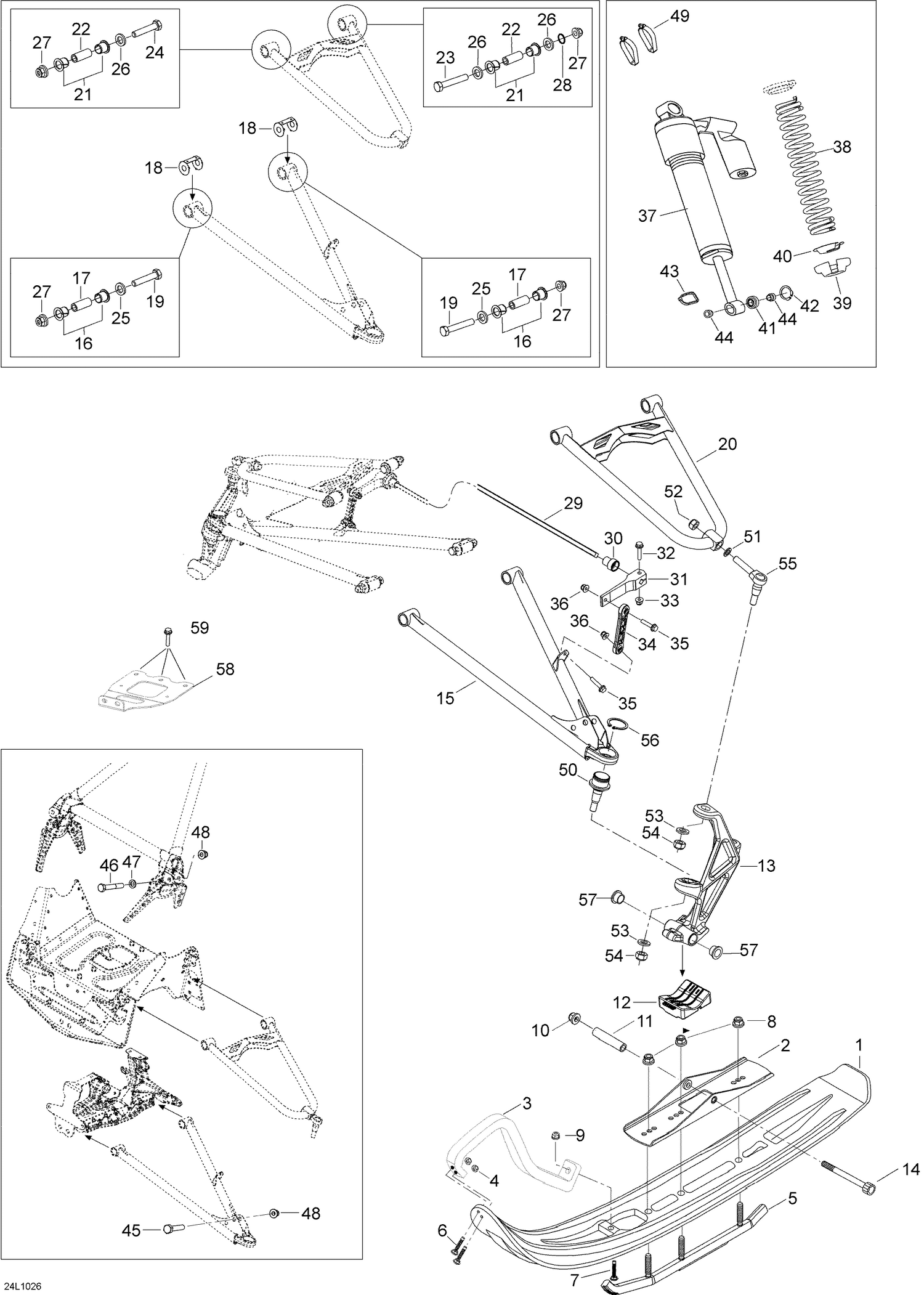

07- Front Suspension And Ski
Parts (61)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 605154899 | Plastic-Ski |
| 2 | 605354902 | Bridge |
| 3 | 505072482 | Plastic handle, red |
| 4 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 5 | 605349378 | Runner ass'y |
| 6 | 40393 | Socket head screw M6 x 30 |
| 7 | 40137 | Socket head screw M8 x 40 |
| 8 | 233201414 | Hex. Flanged Elastic Nut M10 |
| 9 | 233281414 | Hex. Flange Elastic Nut M8 |
| 10 | 232500416 | Elastic Stop Nut M10 |
| 11 | 506133300 | Spacer |
| 12 | 505072561 | RUBBER DAMPER - Call your local BRP dealership |
| 13 | 505072805 | LH Ski Leg |
| 13 | 505072806 | RH Ski Leg |
| 14 | 231080044 | Allen screw M10 x 100 |
| 15 | 505072366 | LH LOWER ARM - Call your local BRP dealership |
| 15 | 505072367 | RH LOWER ARM - Call your local BRP dealership |
| 16 | 503191766 | Cushion |
| 17 | 505072401 | Aluminum Bushing |
| 18 | 505072634 | Wear Plate |
| 19 | 250001024 | Screw Hex. M10 X 70 This part replaces 250000291. |
| 20 | 505072455 | Upper Arm L.H. |
| 21 | 503191555 | Swivel Bushing |
| 22 | 505072143 | Bushing |
| 23 | 250001023 | Screw Hex. M10 X 60 This part replaces 250000290. |
| 24 | 250001022 | Screw Hex. M10 X 50 This part replaces 250000289. |
| 25 | 503189564 | Washer |
| 26 | 505072392 | Washer |
| 27 | 250100165 | Hex. Flanged Elastic Nut M10 This part replaces 250100088. |
| 28 | 505072448 | O-Ring |
| 29 | 505072602 | Stabilisator |
| 30 | 505072064 | Bushing |
| 31 | 505072394 | Stabilisator Lever |
| 32 | 207663046 | Hex. Flange Screw M6 X 30 |
| 33 | 233261416 | Elastic Flanged Nut M6 X 1.0 |
| 34 | 505072204 | Sway Bar Double Joint Link |
| 35 | 207663046 | Hex. Flange Screw M6 X 30 |
| 36 | 233261416 | Elastic Flanged Nut M6 X 1.0 |
| 37 | 505072828 | RH HPG Front Shock |
| 37 | 505072830 | LH HPG Front Shock |
| 38 | 503192393 | Spring 290 mm. 24 Nm. |
| 39 | 505072635 | Spring Stopper |
| 40 | 706200793 | Cap |
| 41 | 414562900 | RADIAL BALL-JOINT - Call your local BRP dealership |
| 42 | 371910600 | INTERIOR CIRCLIP - Call your local BRP dealership |
| 43 | 414115200 | Tie-Rap 180 mm |
| 44 | 506120200 | BUSHING - Call your local BRP dealership |
| 45 | 207005544 | Hex. Screw M10 X 55 |
| 46 | 207006544 | Hex. Screw M10 X 65 |
| 47 | 503189564 | Washer |
| 48 | 233201414 | Hex. Flanged Elastic Nut M10 |
| 49 | Not | Available As Spare Part - Gear Clamp Tridon |
| 50 | 505073636 | Ball Joint This part replaces 505072682. |
| 51 | 503189276 | Washer |
| 52 | 250100089 | Hex. Elastic Hex. Nut M12 |
