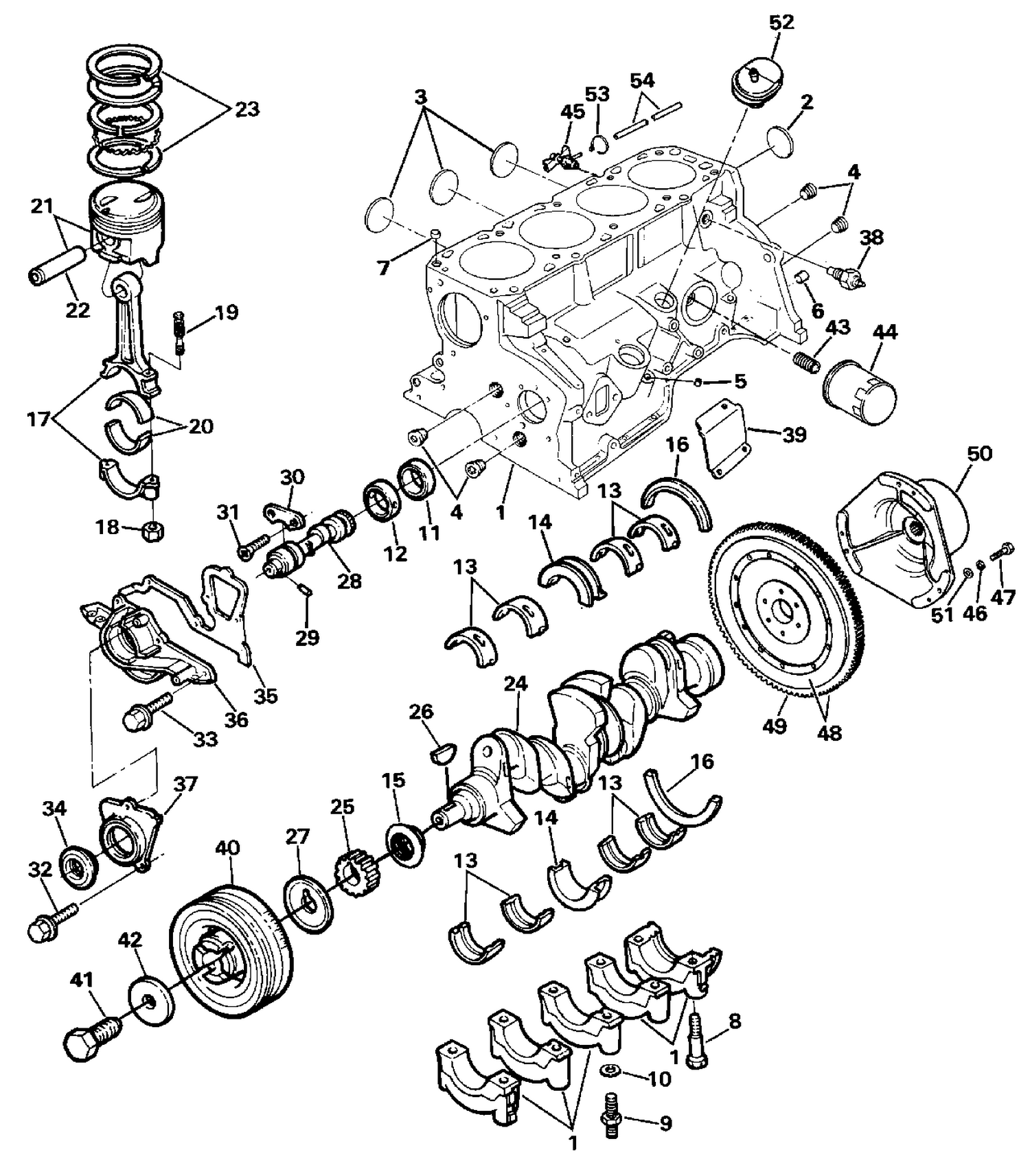

CRANKCASE ASSEMBLY

CRANKCASE ASSEMBLY

Parts (86)

RefPart NumberDescription
1 0985582 PARTIAL ENGINE
2 0912933 PLUG, Core hole
3 3852650 PLUG, Core hole This part replaces 0912932.
4 0914239 PLUG - 3/8 NPT
4 3853108 PLUG, Oil gallery This part replaces 0914249.
5 0912481 PLUG, Dipstick hole
6 0914240 DOWEL
7 0914238 DOWEL, Cylinder head
8 0914262 BOLT, Main bearing cap
9 0914263 STUD, Main bearing cap
10 0914264 WASHER, Main bearing cap
11 0913116 BRG., Driveshaft, rear, standard
11 0914242 BRG., Driveshaft, rear, 0.015" U/S
12 0913115 BRG., Driveshaft, front, standard
12 0914243 BRG., Driveshaft front, 0.015" U/S
13 0913138 BRG., Main, standard, blue
13 0913139 BRG., Main, standard, red
13 0914265 BRG., Main, 0.002" U.S.
13 0914266 BRG., Main, 0.010" U.S.
13 0914267 BRG., Main, 0.020" U.S.
13 0914268 BRG., Main, 0.030" U.S.
14 0913134 BRG., Thrust, lower, std., red
14 0913135 BRG., Thrust, lower, std., blue
14 0913136 BRG., Thrust, upper, std., blue
14 0913137 BRG., Thrust, upper, std., red
14 0914269 BRG., Thrust, upper, 0.002" U.S.
14 0914270 BRG., Thrust, upper, 0.010" U.S.
14 0914271 BRG., Thrust, upper, 0.020" U.S.
14 0914272 BRG., Thrust, upper, 0.030" U.S.
14 0914273 BRG., Thrust, lower, 0.002" U.S.
14 0914274 BRG., Thrust, lower, 0.010" U.S.
14 0914275 BRG., Thrust, lower, 0.020" U.S.
14 0914276 BRG., Thrust, lower, 0.030" U.S.
15 0984877 SEAL, Auxiliary shaft
16 0984881 SEAL, Crankshaft, rear
17 0985314 CONNECTING ROD
18 0913124 NUT, Connecting rod
19 0913125 BOLT, Connecting rod
20 0913122 BRG., Rod, standard, blue
20 0913123 BRG., Rod, standard, red
20 0914251 BRG., Rod, 0.002" U.S.
20 0914252 BRG., Rod, 0.010" U.S.
20 0914253 BRG., Rod, 0.020" U.S.
20 0914254 BRG., Rod, 0.030" U.S.
20 0914255 BRG., Rod, 0.040" U.S.
21 0985309 PISTON & PIN, Blue
21 0985310 PISTON & PIN, Red
21 0986308 PISTON & PIN 0.003" O/S
21 0986309 PISTON & PIN 0.020" O/S
21 0986310 PISTON & PIN 0.030" O/S
21 0986311 PISTON & PIN 0.040" O/S
22 0914144 PIN, Piston, 0.001" O/S
22 3852773 PIN, Piston, standard This part replaces 0913712.
23 0985311 RING SET, Std. & .003 O/S
23 0986312 RING SET, 0.020" O.S.
23 0986313 RING SET, 0.030" O.S.
23 0986314 RING SET, 0.040" O.S.
24 0985312 CRANKSHAFT
25 0912756 SPROCKET, Crankshaft
26 0913140 KEY, Sprocket
27 0912757 GUIDE, Timing belt
28 0914293 SHAFT, Auxiliary drive
29 0913152 PIN, Sprocket
30 0914260 PLATE
31 0914261 SCREW & WASHER
32 0914246 BOLT, Cover to block
33 0914246 BOLT, Cover to block
34 0984877 SEAL, Auxiliary shaft
35 0912762 GASKET, Front cover
36 0914500 COVER, Lower
37 0914245 COVER, Upper
38 3853787 SENDING UNIT, Temperature This part replaces 0980613.
39 0914241 BAFFLE, Crankcase vent
40 0984626 PULLEY, Crankshaft
41 0912526 BOLT, Pulley to crankshaft
42 0912530 WASHER, Pulley to crankshaft
43 0914292 INSERT, Oil filter
44 0502900 OIL FILTER This part replaces 0173231.
45 0986040 PETCOCK, Exhaust manifold
46 0306453 LOCKWASHER, Fuel pump
47 0912496 SCREW, Coupling
48 0986306 FLYWHEEL
49 0913141 RING GEAR
50 0984629 COUPLING, Flywheel
52 0986315 SEPARATOR ASSY.
53 0320107 ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet
