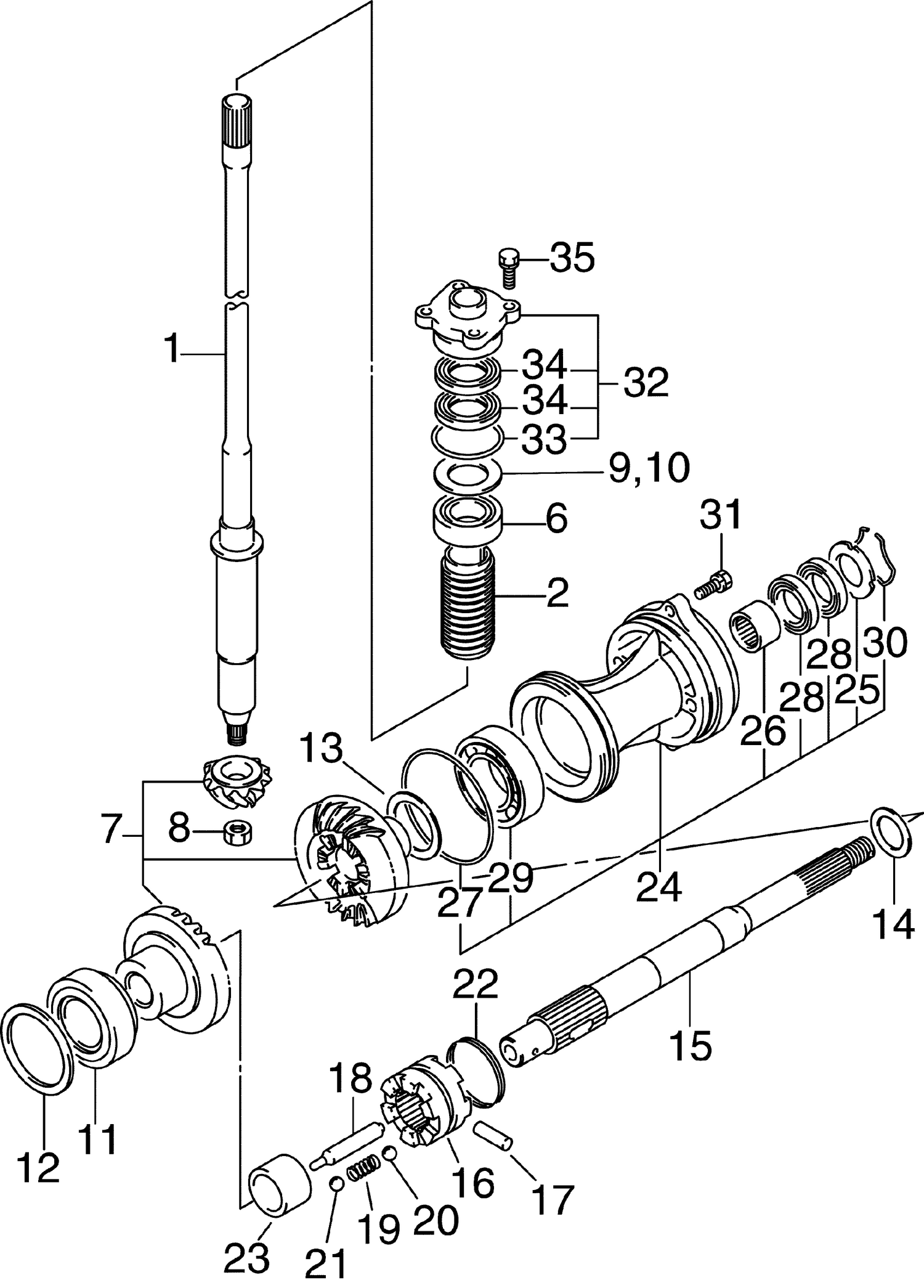

GEARS
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5034639 | SHAFT Assy, DRIVE 20 IN. MODELS |
| 1 | 5034640 | SHAFT Assy, DRIVE 25 IN. MODELS This part replaces 5037217. |
| 2 | 5032553 | COLLAR, DRIVE SHAFT |
| 6 | 5030532 | BEARING |
| 8 | 5032877 | NUT |
| 9 | 5030975 | SHIM KIT, Driveshaft |
| 17 | 5032584 | PIN |
| 22 | 5034145 | SPRING |
| 23 | 5033952 | SPACER |
| 24 | 5033565 | HOUSING, PROP SFT BRG |
| 31 | 5031216 | BOLT |
| 32 | 5033846 | HOUSING |
