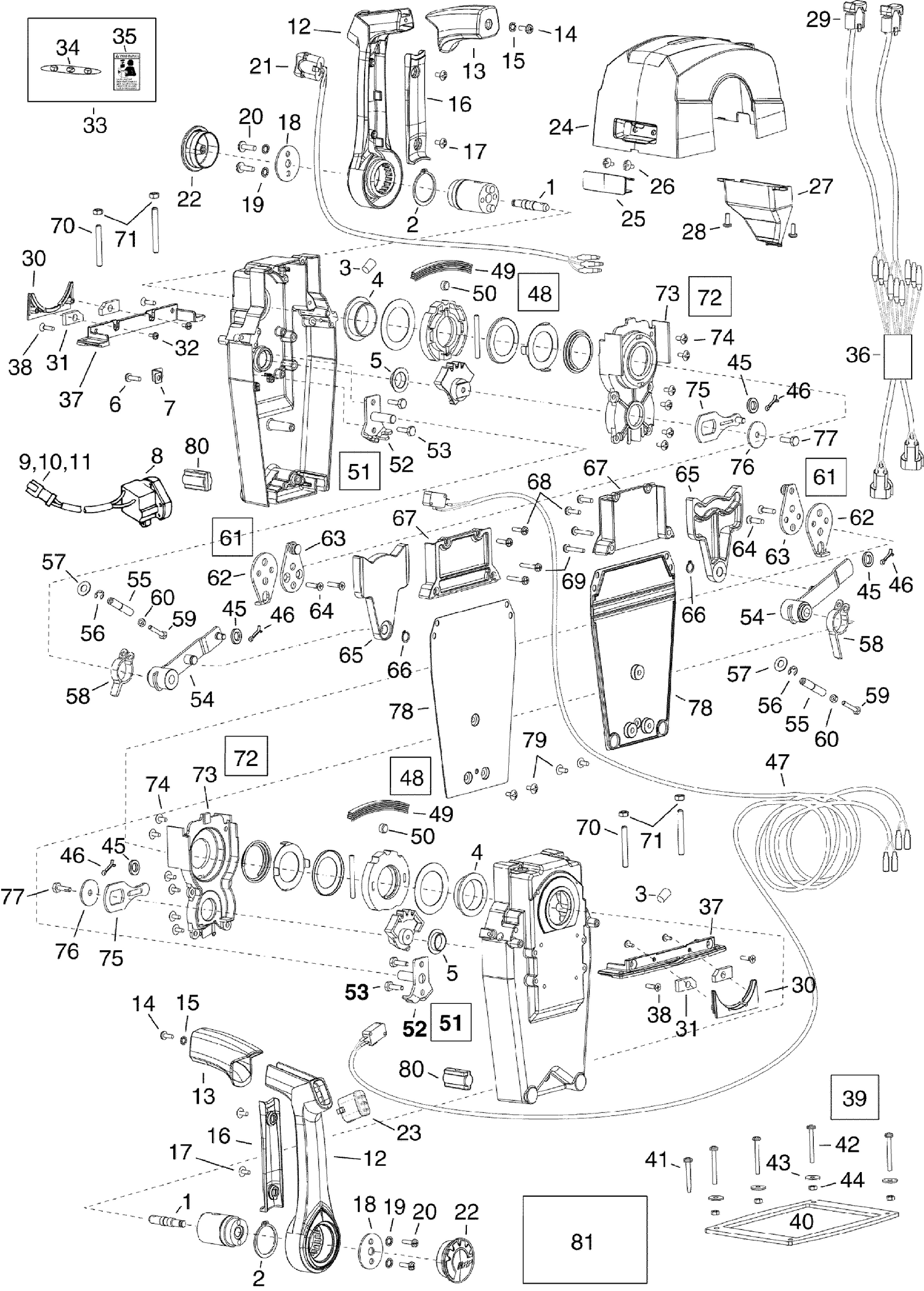

DUAL LEVER BINNACLE - CABLE TYPE
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| NS | **SEAL | Ref: 47 5007496 *INTERRUPTEUR DE DÉMARRAGE AU POINT MORT ET FAISCEAU 5007496 |
| 27 | **DRAIN | Ref: 28 **SCREW, (M5 x 0.8 x 12) |
| 30 | **SIDE | COVER |
| 35 | ***DECAL, | Warning |
| 40 | **SEAL | Ref: 41 **SCREW, Self-tapping |
| 43 | **WASHER | Ref: 44 **NUT |
| 49 | **SPRING | Ref: 50 **ROLLER |
| 55 | ***BRAKE | ADJUST |
| 56 | ***E-RING | Ref: 57 ***WASHER |
| 58 | ***BRAKE | ARM Assy |
| 59 | ****SCREW | Ref: 60 ****NUT |
| 62 | **STOPPER | Ref: 63 **THROTTLE LEVER |
| 65 | **DWELL | PLATE |
| 67 | **DWELL | PLATE RETAINER |
| 73 | **GEAR | CASE |
| 80 | **CABLE | PLUG |
