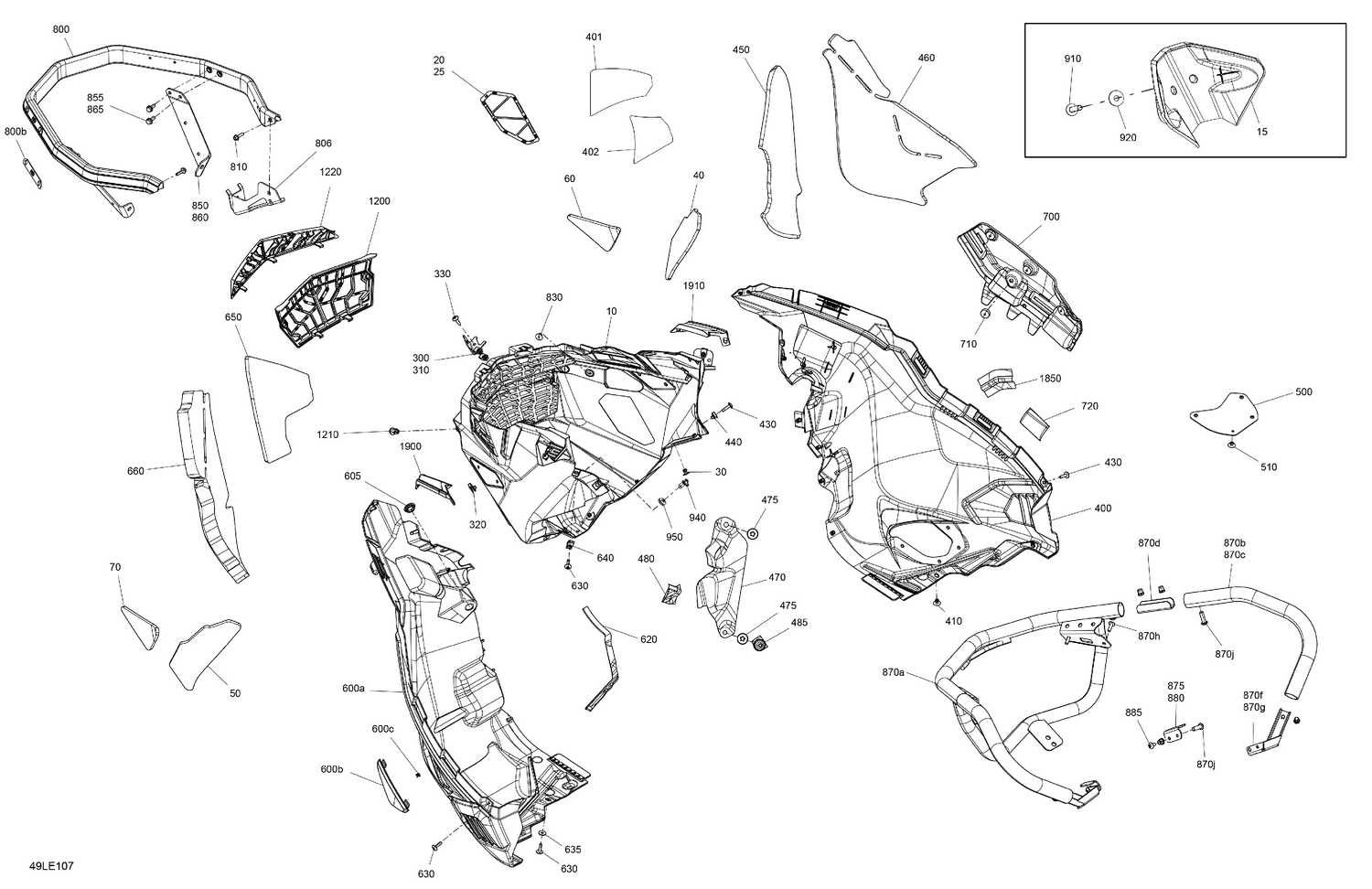

| Ref | Part Number | Description |
|---|
| 10 |
502008652 |
Front Bottom Pan |
| 15 |
502008466 |
Skid Plate |
| 20 |
517307573 |
LH Rear Latch |
| 25 |
517307574 |
RH Air Intake Grid |
| 30 |
293150292 |
Black, Pop Rivet 3/16 X ,550 |
| 40 |
502007788 |
Foam |
| 50 |
502007789 |
Foam |
| 60 |
502008308 |
Foam |
| 70 |
502008309 |
Foam |
| 300 |
502007723 |
LH Screw Plate |
| 310 |
502007724 |
RH Screw Plate |
| 320 |
250000958 |
Panel Nut M5 X 0.8 |
| 330 |
250000586 |
Torx Truss M5 X 20 |
| 400 |
502007922 |
RH Bottom Pan 600MM |
| 401 |
502008585 |
Heat Shield |
| 402 |
502008586 |
Heat Shield |
| 410 |
293150292 |
Black, Pop Rivet 3/16 X ,550 |
| 430 |
250000586 |
Torx Truss M5 X 20 |
| 440 |
250000958 |
Panel Nut M5 X 0.8 |
| 450 |
502008403 |
RH Upper Bottom Pan Foam |
| 460 |
502008404 |
RH Lower Bottom Pan Foam |
| 470 |
502007902 |
Heat Shield |
| 475 |
508000853 |
Push Nut |
| 480 |
44110 |
Aluminum Foil |
| 485 |
44110 |
Aluminum Foil |
| 500 |
502007901 |
Plate |
| 510 |
293150291 |
Black, Pop Rivet 3/16 X ,425 |
| 600a |
502008097 |
LH Bottom Pan |
| 600b |
502007676 |
Bottom Pan Door |
| 600c |
269800431 |
Hairpin |
| 605 |
518330527 |
Bottom Pan Plug |
| 620 |
219704476 |
Gasket, Neoprene 2000Mm Long |
| 630 |
250000586 |
Torx Truss M5 X 20 |
| 635 |
250200025 |
Washer M5 |
| 640 |
250000958 |
Panel Nut M5 X 0.8 |
| 650 |
502008405 |
LH Upper Bottom Pan Foam |
| 660 |
502008406 |
LH Lower Bottom Pan Foam |
| 700 |
502008199 |
Heat Shield |
| 710 |
502008149 |
Stopper |
| 720 |
44110 |
Aluminum Foil |
| 800b |
502007880 |
Bumper Trim |
| 806 |
502008380 |
Horn Bracket |
| 810 |
207552044 |
Hex. Flange Screw M5 X 20, Scotch Grip |
| 830 |
293150292 |
Black, Pop Rivet 3/16 X ,550 |
| 850 |
502008104 |
RH Bumper Support |
| 855 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 860 |
502008105 |
LH Bumper Support |
| 865 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 870a |
520002193 |
Orange Crush, Front Bumper |
| 870b |
520002201 |
Orange Crush, RH Front Bumper Side Tube |
| 870c |
520002202 |
Orange Crush, LH Front Bumper Side Tube |
| 870d |
520002203 |
Joint Plate |
| 870f |
520002204 |
RH Side Fastener |
| 870g |
520002206 |
LH Side Fastener |
| 870h |
250000722 |
Torx Truss Screw M6 x 20 |
| 870j |
250000757 |
Screw-Torx Button Head M8 X 25 S.Gr |
| 875 |
520002222 |
RH Fastening Plate |
| 880 |
520002224 |
LH Fastening Plate |
| 885 |
250000675 |
Torx Truss Screw M6 x 12 |
| 910 |
250000758 |
Torx Screw M6 X 25 |
| 920 |
234062670 |
Flat Washer, Stainless |
| 940 |
414580700 |
Male Connector |
| 950 |
414036300 |
Grommet |
| 1200 |
502007978 |
Lower Pre Filter |
| 1210 |
293150230 |
Tuflok Plastic Rivet |
| 1220 |
502007977 |
Upper Pre Filter |
| 1850 |
44110 |
Aluminum Foil |
| 1900 |
502008035 |
LH Bottom Pan Deflector |
