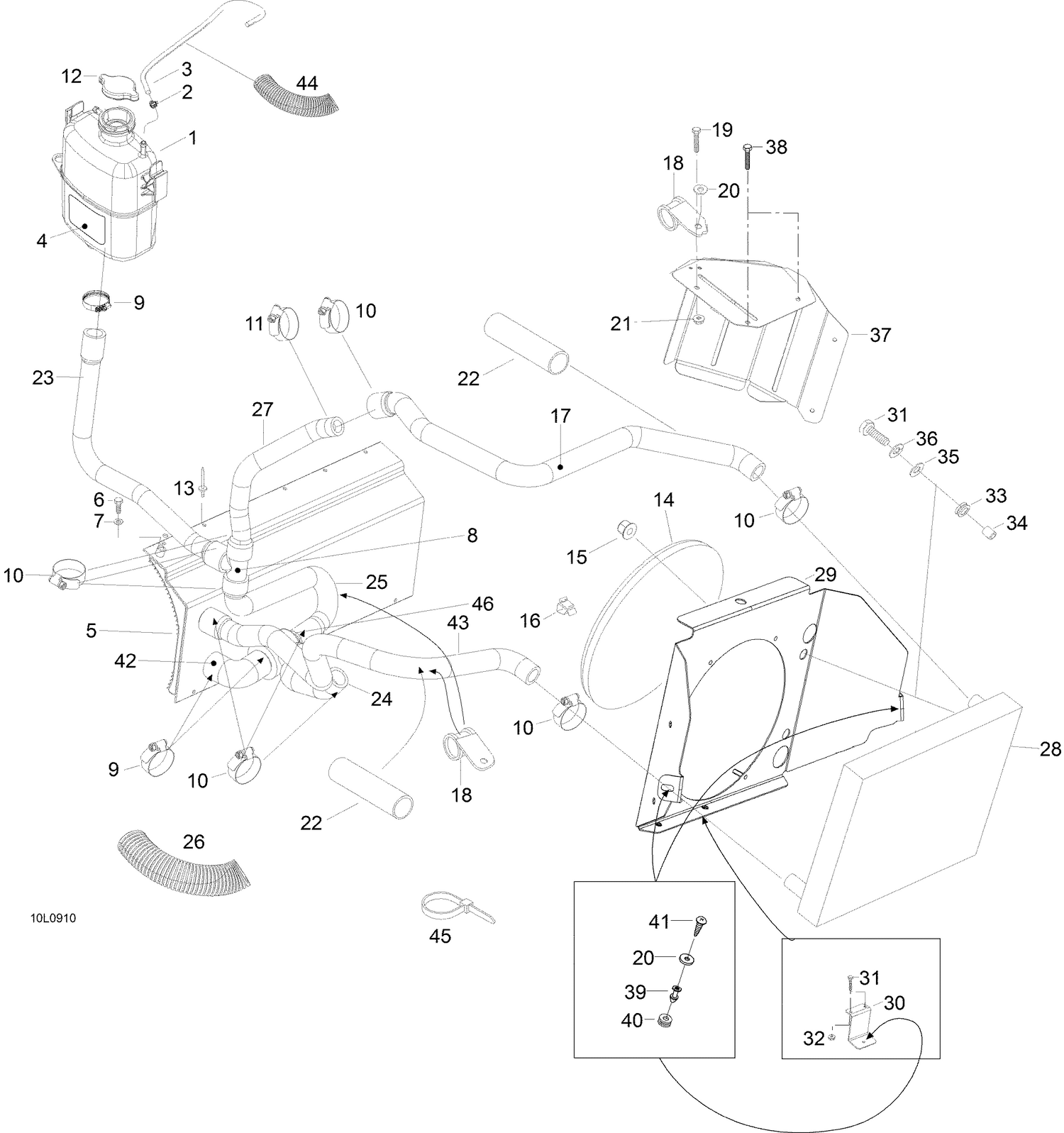

| Ref | Part Number | Description |
|---|
| 1 |
276000086 |
Coolant Tank |
| 2 |
605627003 |
Clamp |
| 3 |
219704410 |
Polyurethane Hose 10000Mm Long |
| 4 |
M44110 |
REFLECTIVE SHEET - Call your local BRP dealership |
| 5 |
605253699 |
Radiator |
| 6 |
207161044 |
HEX. SCREW M6 X 10 - Call your local BRP dealership |
| 7 |
M20041 |
Seal |
| 8 |
509000219 |
T-Fitting |
| 9 |
408800400 |
TRIDON GEAR CLAMP - Call your local BRP dealership |
| 10 |
605627002 |
CLAMP - Call your local BRP dealership |
| 11 |
605627004 |
Clamp |
| 12 |
509000180 |
Radiator Pressure Cap |
| 13 |
36108 |
Rivet This part replaces M36108. |
| 14 |
M42091 |
AXAIL MOTOR FA SPAL 225 - Call your local BRP dealership |
| 15 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces M33200. |
| 16 |
414227300 |
Clip |
| 17 |
605253694 |
HOSE - Call your local BRP dealership |
| 18 |
M27039 |
CLAMP - Call your local BRP dealership |
| 19 |
207161644 |
Hex. Screw M6 X 16 |
| 20 |
234062410 |
Flat Washer 6 mm This part replaces M20009. |
| 21 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces M33200. |
| 22 |
M39062 |
TUBING - Call your local BRP dealership |
| 23 |
605253689 |
HOSE - Call your local BRP dealership |
| 24 |
605354452 |
HOSE - Call your local BRP dealership |
| 25 |
605354451 |
HOSE - Call your local BRP dealership |
| 26 |
M28036 |
Tubing |
| 27 |
605253690 |
HOSE - Call your local BRP dealership |
| 28 |
605353238 |
RADIATOR 250 - Call your local BRP dealership |
| 29 |
605254916 |
SUPPORT PLATE - Call your local BRP dealership |
| 30 |
605354917 |
FASTENING PLATE - Call your local BRP dealership |
| 31 |
207162044 |
Hex. Screw M6 X 20 |
| 32 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces M33200. |
| 33 |
709000582 |
Grommet This part replaces 293720053. |
| 34 |
605453745 |
Bushing |
| 35 |
234062410 |
Flat Washer 6 mm This part replaces M20009. |
| 36 |
234161471 |
Lock Washer M6, Black |
| 37 |
605254458 |
DEFLECTOR PLATE - Call your local BRP dealership |
| 38 |
210251650 |
Hex. Forming Screw M5 X 16 This part replaces 210251680. |
| 39 |
517303439 |
Knob |
| 40 |
517307161 |
Grommet This part replaces 517302841. |
| 41 |
207151244 |
Hex. Screw M5 X 12 |
| 42 |
605354450 |
HOSE - Call your local BRP dealership |
| 43 |
605253693 |
HOSE - Call your local BRP dealership |
| 44 |
219704355 |
TUBING 1000MM LONG - Call your local BRP dealership |
| 45 |
414115200 |
Tie-Rap 180 mm |
