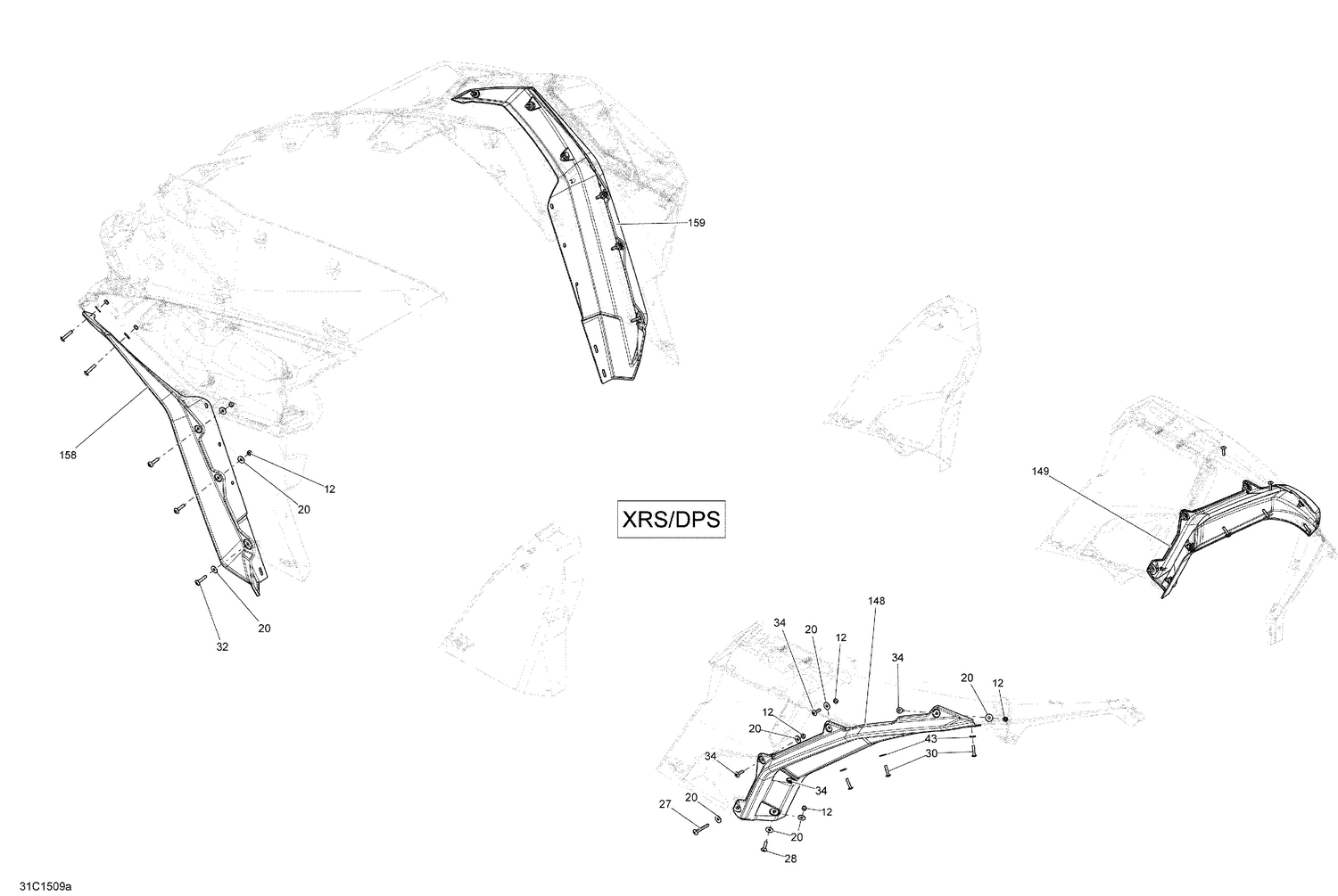

09- Body And Accessories Mudguard_31C1509a
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 12 | 232561434 | Elastic Stop Nut M6 |
| 20 | 234062670 | Stainless Steel Flat Washer |
| 27 | 250000215 | Torx Screw M6 X 45 |
| 28 | 250000284 | Torx Screw M6 x 25 |
| 30 | 250000762 | Torx Screw M5 X 25 This part replaces 250000300. |
| 32 | 250000842 | Stainless, Torx Screw M6 X 30 This part replaces 250000371. |
| 34 | 250000712 | Torx Screw M6 X 20 |
| 43 | 250200025 | Washer M5 |
| 148 | 705007637 | LH Rear Deflector |
| 149 | 705007638 | RH Rear Deflector |
| 158 | 705008988 | LH Front Deflector |
