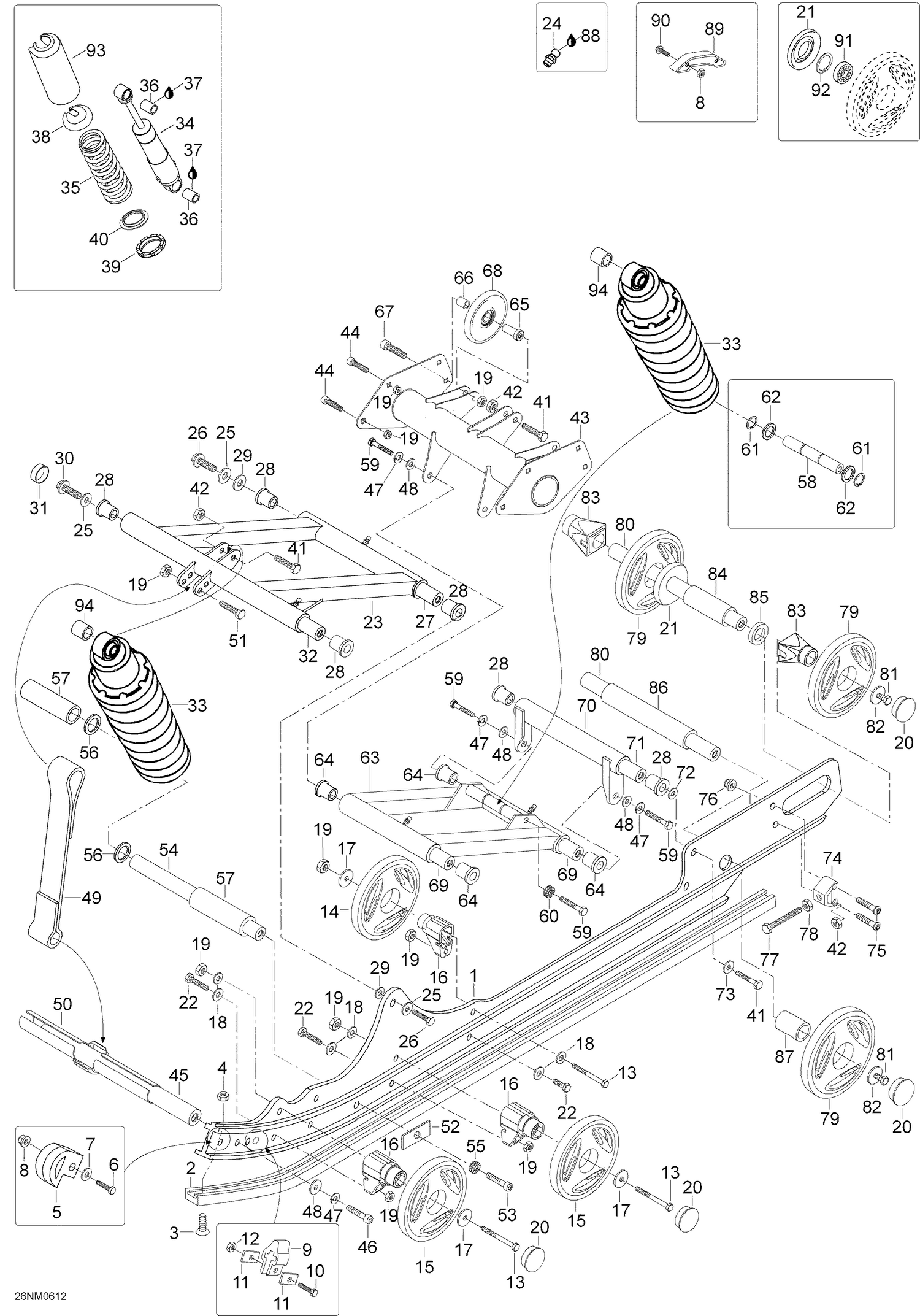

08- Rear Suspension

08- Rear Suspension

Parts (94)

RefPart NumberDescription
1 605253361 Runner
2 605353362 Shoe
3 40059 Socket head screw M6 x 60
4 33010 Lock Nut M6 (1=10Pcs)
5 605348954 Runner protector
6 40031 Hex. screw M6 x 25
7 20003 Washer A6,4
8 233261414 Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200.
9 5442328 STOPPER-RUBBER - Call your local BRP dealership
10 40032 Hex. screw M6 x 30
11 548470 Washer
12 33010 Lock Nut M6 (1=10Pcs)
13 40089 M8 x 75DIN 931m8.8Zne(1=10pcs) - Call your local BRP dealership
14 503191316 Idler wheel, (141)
15 503191313 Idler wheel, (141)
16 605451906 Support
17 211200041 Washer 8mm
18 234081410 Flat Washer 8 mm This part replaces 20104.
19 232581414 Hex. Elastic Stop Nut M8 This part replaces 33011.
20 570063600 Protector
21 503190434 Labyrinth Seal
22 40037 Hex. screw M8 x 25
23 5145588 Front arm
24 34011 Grease Fitting M6 x 1,00(1=10pcs) - Call your local BRP dealership
25 20090 Spring Washer DIN 6796,keltapass,(1=10pc - Call your local BRP dealership
26 40099 Hex. screw M12 x 45
27 605352383 Shaft
28 31024 Cushion
29 20040 Washer
30 40243 Hex. screw M12 x 60
31 5448025 Cap
32 5346135 Shaft
34 23223 Shock, front arm
34 605623005 Shock, rear arm
35 25073 Spring, front arm
35 25076 Spring, rear arm
36 31094 Cushion
37 320006 Loctite 641, 50ml
38 5346750 Spring stopper
39 230048 Cam
40 230049 Spring guide
41 40016 Hex. screw M10 x 45
42 33012 Elastic stop nut M10
43 605253615 Upper arm
44 205982086 SOCKET HEAD SCREW M8 X 20, SCOTCH GRIP - Call your local BRP dealership This part replaces 40351.
45 5343471 Shaft
46 40134 Screw Socket HD.DIN 912
47 20047 Shim B10 DIN127 -St Zne(1=10pcs) - Call your local BRP dealership
48 20105 Washer, hardened, 10mm
49 605449385 Stopper strap
50 605349381 Retainer for stopper strap - Call your local BRP dealership
51 207084544 Hex. Screw M8 X 45 This part replaces 40008.
52 605449294 Support Plate
53 40371 Socket head screw M12 x 55
54 605350690 Shaft
55 20074 Lock washer 12mm
56 31013 Shim Ring
57 605349896 Sleeve
58 605451897 REARSHOCK SHAFT - Call your local BRP dealership
59 40014 Hex. screw M10 x 40
60 20068 Lock washer 10mm
61 293370056 Circlip 20X1.75 DIN471 This part replaces 31007.
62 31091 Shim ring 20x28x1 DIN 988(1=10pcs) - Call your local BRP dealership
63 605349313 Rear arm
64 31027 Cushion
65 5447945 Sleeve
66 5447946 Sleeve
67 605640006 Socket head screw M8 x 90
68 46027 Idler Wheel - Call your local BRP dealership
69 5346865 SHAFT - Call your local BRP dealership
70 5345535 Rear arm
71 5346900 Shaft
72 20116 Washer
73 512056700 Lock washer
74 5341633 Tensioner
75 40392 Socket head screw M8 x 45
76 233281414 Hex. Flange Elastic Nut M8 This part replaces 33201.
77 40239 Hex. screw M10 x 100
78 232006414 Hex. Nut M10 This part replaces 33004.
79 503191110 Idler fheel 165/Full Moon
80 503190429 Rear Axle
81 40050 Hex. screw M10 x 35
82 503190439 Washer
83 503190428 Rear Wheel Spacer
84 503196317 Spacer This part replaces 503190430.
85 503190432 Washer
86 605353255 Sleeve
87 605353256 Sleeve
88 293550033 SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership
89 503192731 SLIDING PAD - Call your local BRP dealership This part replaces 5343191.
90 207764044 BOLT CARRIAGE DIN.603 - Call your local BRP dealership This part replaces 40064.
91 503190396 Ball Bearing
92 371901700 CIRCLIP - Call your local BRP dealership
93 5346754 Shock protector
