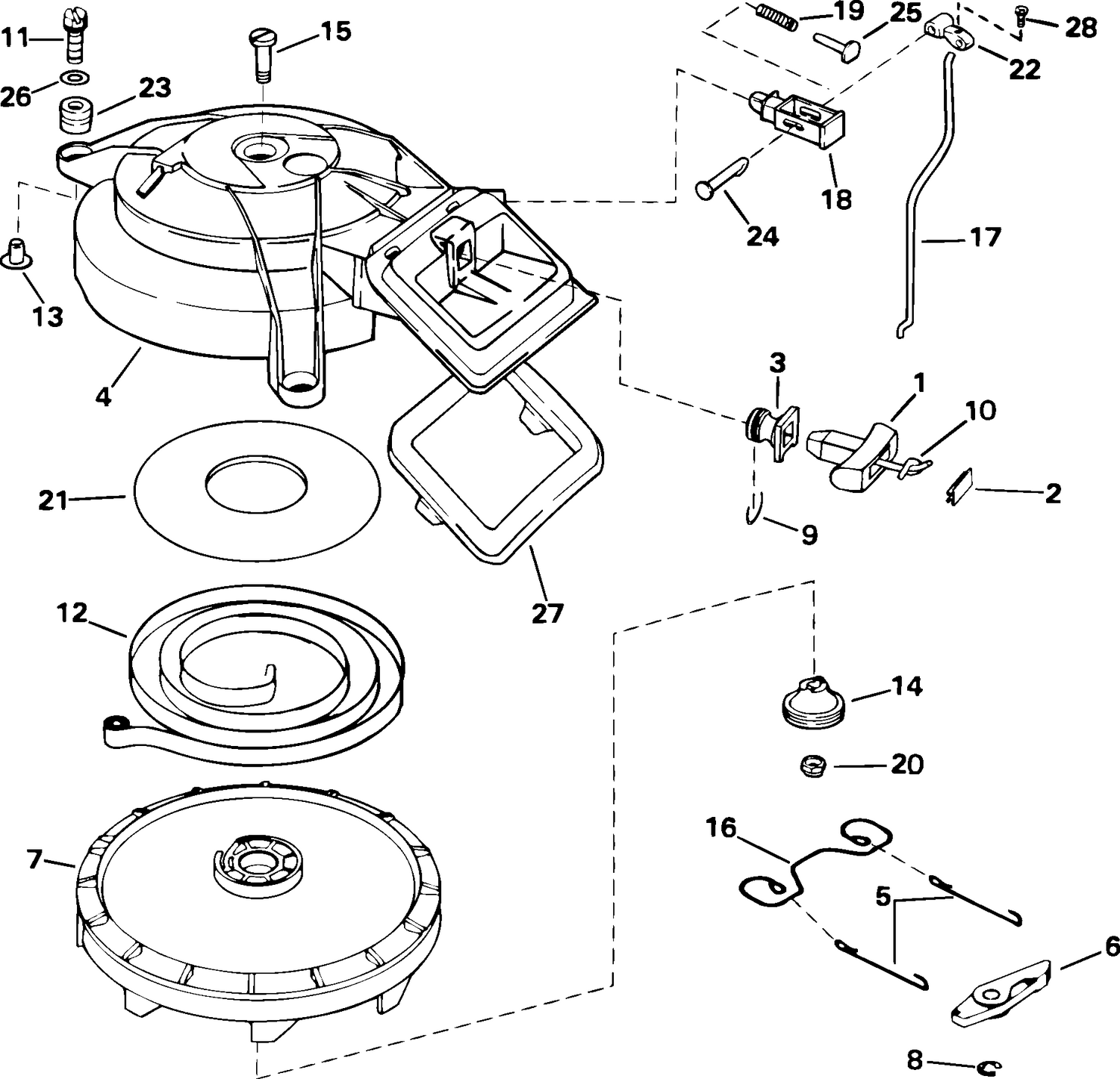

MANUAL STARTER
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5000510 | HANDLE ASSY., Starter |
| 3 | 0336148 | GUIDE, Rope |
| 4 | 0338203 | HOUSING, Starter |
| 7 | 0435741 | PULLEY & PIN, Starter |
| 9 | 0336110 | RING, Retaining, guide |
| 14 | 0339038 | SPINDLE |
| 16 | 0331970 | FRICTION SPRING |
| 17 | 0338231 | LINK, Lockout |
| 18 | 0338228 | PLUNGER, Starter lockout |
| 19 | 0338229 | SPRING, Plunger |
| 21 | 0339030 | SHIELD, Spring |
| 22 | 0338225 | CAM, Starter lockout |
| 24 | 0339188 | PIN, Cam, lockout |
| 25 | 0338227 | TAPPET, Starter lockout |
| 27 | 0338240 | SEAL, Housing to cover |
