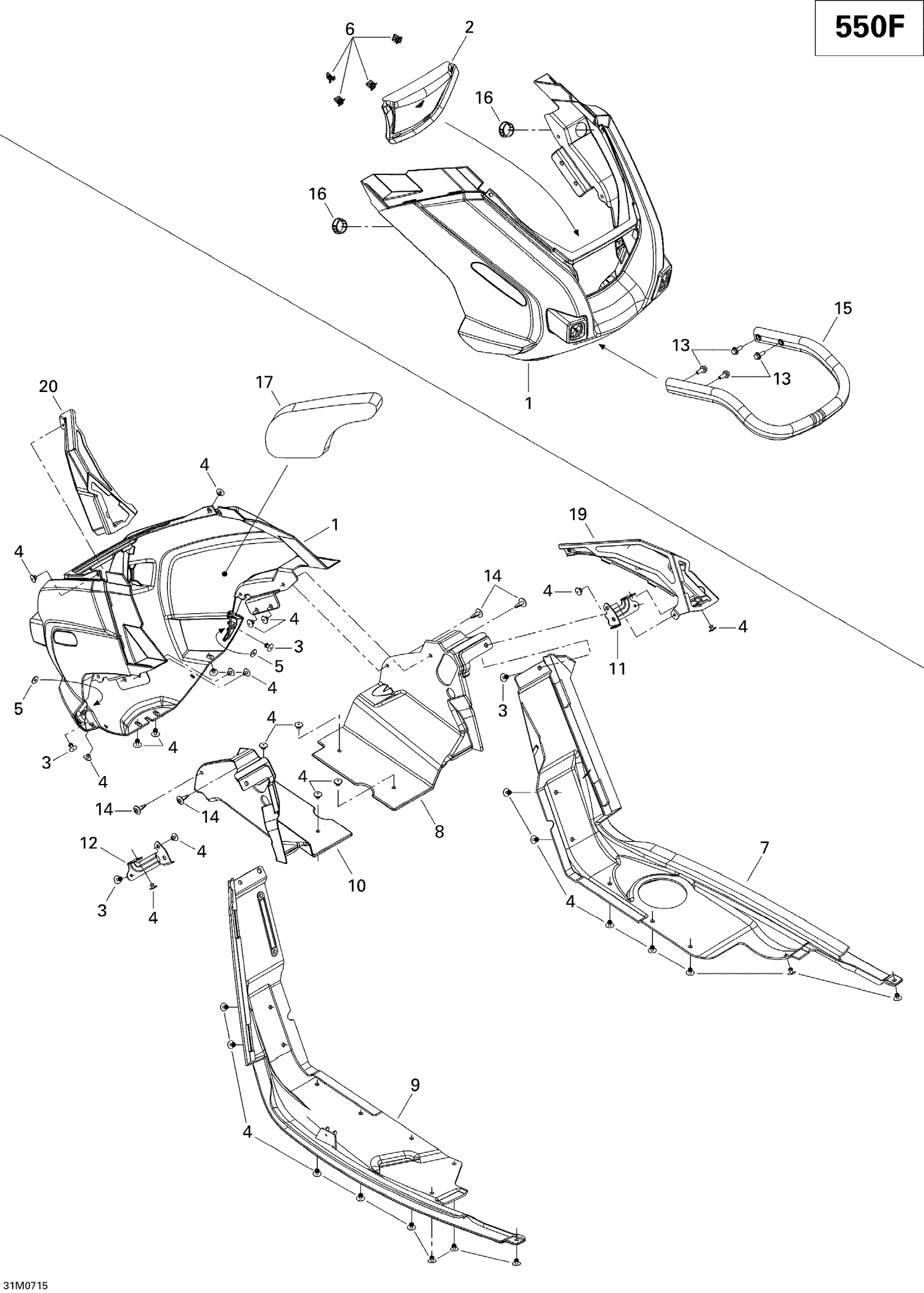

| Ref | Part Number | Description |
|---|
| 1 |
502006752 |
FRONT BOTTOM PAN - Call your local BRP dealership |
| 2 |
502006753 |
FRONT BOTTON PAN GRILL - Call your local BRP dealership |
| 3 |
293150104 |
Pop Rivet 3/16" |
| 4 |
293150103 |
Pop Rivet 3/16" |
| 5 |
517124300 |
Washer |
| 6 |
517302785 |
Edge Clip |
| 7 |
502006852 |
RH BOTTOM PAN - Call your local BRP dealership |
| 8 |
502006853 |
RH SIDE BOTTOM PAN - Call your local BRP dealership |
| 9 |
502006788 |
LH BOTTOM PAN - Call your local BRP dealership |
| 10 |
502006851 |
LH Side Bottom Pan |
| 11 |
502006773 |
RH SUPPORT - Call your local BRP dealership |
| 12 |
502006775 |
LH SUPPORT - Call your local BRP dealership |
| 13 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 14 |
414745900 |
Tuflock Phillips Plastic Screw |
| 15 |
502006797 |
FRONT BUMPER - Call your local BRP dealership |
| 16 |
414916600 |
Black, Nylon Cap |
| 17 |
502006807 |
RH BOTTOM PAN FOAM - Call your local BRP dealership |
| 19 |
502006789 |
RH BOTTON PAN GRILL - Call your local BRP dealership |
