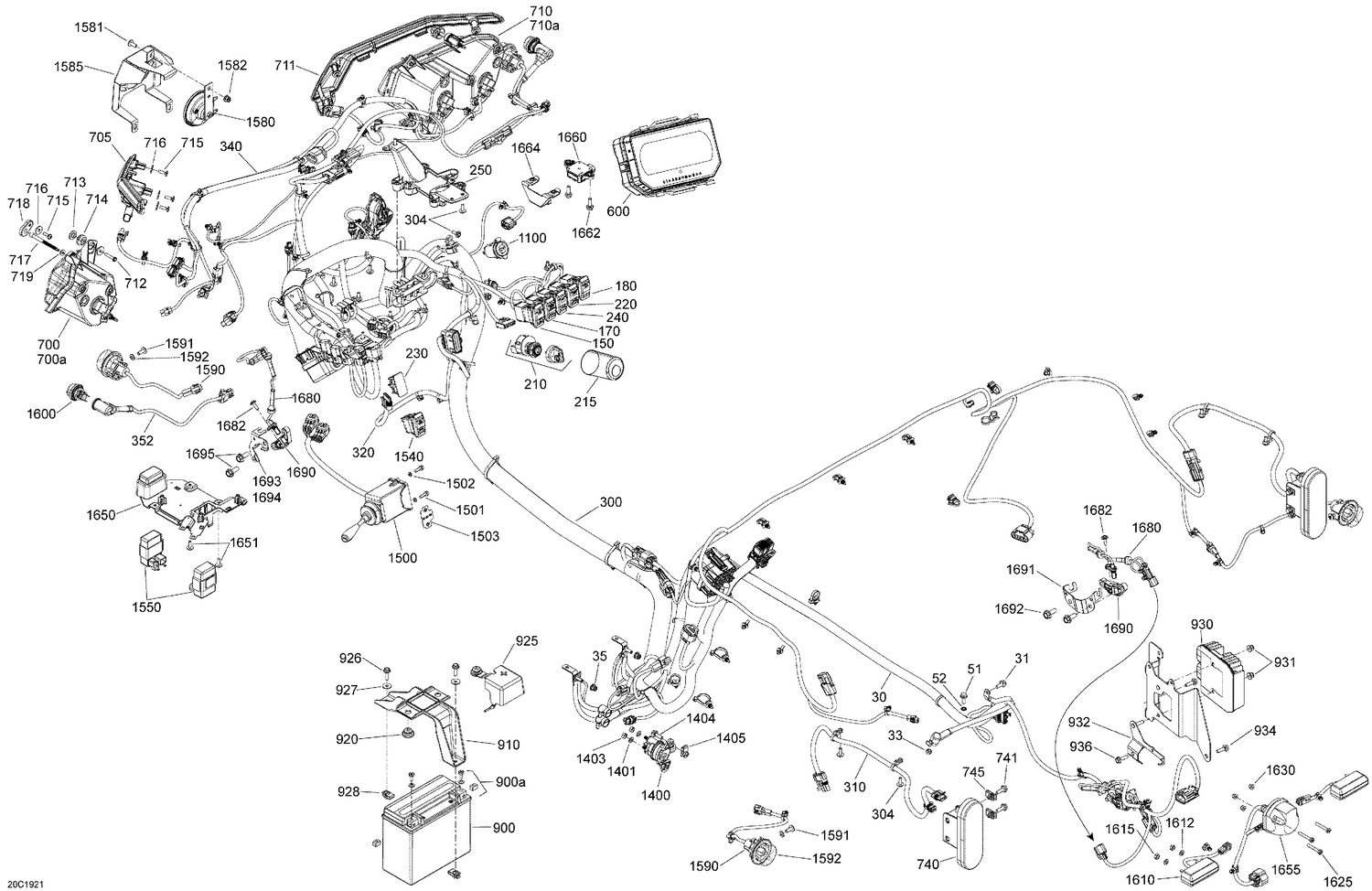

10- Electrical
Parts (91)
| Ref | Part Number | Description |
|---|---|---|
| 30 | 710006233 | Starter Wiring Harness |
| 31 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 33 | 232561414 | Elastic Stop Nut M6 |
| 35 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 51 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 52 | 234461608 | External Serrated Lock Washer 6 mm |
| 150 | 710005489 | Switch 2X4 |
| 170 | 710005470 | Differential Lock Switch |
| 210 | 710007870 | Inter Allumage *Ignition This part replaces 710004198. |
| 215 | 710005739 | Key Switch Protector |
| 220 | 710005909 | Driving Mode Switch |
| 230 | 710007173 | Plug Carling This part replaces 710001999. |
| 240 | 710006183 | Cluster Navigator Switch |
| 250 | 710005672 | Housing Support |
| 300 | 710006237 | Main Wiring Harness Long |
| 304 | 250000959 | Screw PT Type K-50 X 16 |
| 310 | 710006551 | Rear Harness |
| 320 | 710005929 | Trottle Pedal Harness |
| 340 | 710006218 | Front Wiring Harness |
| 352 | 710005676 | Position Light Harness |
| 600 | 710006723 | Speedometer This part replaces 710005263. |
| 700a | 715900141 | Bulb 12V 55W |
| 705 | 710004994 | LH Signature Beam |
| 710a | 715900141 | Bulb 12V 55W |
| 711 | 710004995 | RH Signature Beam |
| 712 | 241152540 | Hex. Flange Screw K50 X 2.24 X 25 |
| 713 | 710004749 | Shoulder Bushing |
| 714 | 709000582 | Grommet This part replaces 293720053. |
| 715 | 250000720 | Torx Screw K50 X 16 |
| 716 | 234062670 | Stainless Steel Flat Washer |
| 717 | 710005837 | Ajustment Screw |
| 718 | 710005097 | Adjustment Guide |
| 719 | 293300192 | O-Ring |
| 740 | 710004257 | Tail Light |
| 741 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip |
| 745 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 900a | 250000282 | Battery Bolt Kit |
| 910 | 710005673 | Fixation Plate |
| 920 | 705014429 | Rubber Stopper This part replaces 705003666. |
| 925 | 710005930 | Battery Cable Cap |
| 926 | 207662054 | Hex. Flange Screw M6 X 20 |
| 927 | 234062670 | Stainless Steel Flat Washer |
| 928 | 250100198 | Panel Nut M6 X 1.0 |
| 930 | 710005842 | Voltage Regulator |
| 931 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 932 | 710006402 | Voltage Regulator Attach |
| 934 | 710006656 | Voltage Regulator Support |
| 936 | 207562054 | Hex. Flange Screw S.Grip M6 X 20 |
| 1100 | 710005374 | Prise Accessoire 12V |
| 1400 | 278003012 | Starter Relay |
| 1401 | 234161601 | Lock Washer Helical M6 |
| 1403 | 232061600 | Hex. Nut M6 |
| 1404 | 207562054 | Hex. Flange Screw S.Grip M6 X 20 |
| 1405 | 250100198 | Panel Nut M6 X 1.0 |
| 1500 | 710001721 | Turn Signal |
| 1501 | 210251650 | Hex. Forming Screw M5 X 16 |
| 1502 | 234151401 | Lock Washer 5 mm |
| 1503 | 704902614 | Flasher Decal |
| 1504 | 293150230 | Tuflok Plastic Rivet |
| 1540 | 710006107 | Hazard Lights Switch |
| 1550 | 710003239 | Flasher Unit |
| 1580 | 710004791 | Horn |
| 1581 | 250000721 | Torx Truss Screw M6 X 16 |
| 1582 | 233261494 | Hex. Flange Elastic Nut M6 |
| 1585 | 710006055 | Horn Bracket |
| 1590 | 710002964 | Flasher |
| 1591 | 250000721 | Torx Truss Screw M6 X 16 |
| 1592 | 234061410 | Flat Washer 6 mm |
| 1594 | 710003168 | Dart Tie Rap 200MM |
| 1600a | 710003269 | Cap Protector |
| 1610a | 219800128 | Bulb |
| 1612 | 234161601 | Lock Washer Helical M6 |
| 1615 | 232061600 | Hex. Nut M6 |
| 1625 | 208653560 | Phillips Screw M5 X 35 |
| 1630 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 1650 | 710006056 | Support Connector |
| 1651 | 250000959 | Screw PT Type K-50 X 16 |
| 1652 | 250000959 | Screw PT Type K-50 X 16 |
| 1655 | 710006245 | Trailer Wiring Harness |
| 1660 | 710005658 | Yaw Rate Sensor |
| 1662 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip |
| 1664 | 710006501 | Yaw Sensor Support |
| 1680 | 710006981 | Speed Sensor |
| 1682 | 250000959 | Screw PT Type K-50 X 16 |
| 1683 | 278002910 | Clip (double dart) |
| 1684 | 710001343 | Clip |
| 1690 | 705402088 | Sensor Support |
| 1691 | 710006452 | ABS Harness Support |
| 1692 | 207582054 | Hex Screw Washer Head M8 X 20 |
| 1693 | 710006554 | RH ABS Harness Support |
| 1694 | 710006555 | LH ABS Harness Support |
