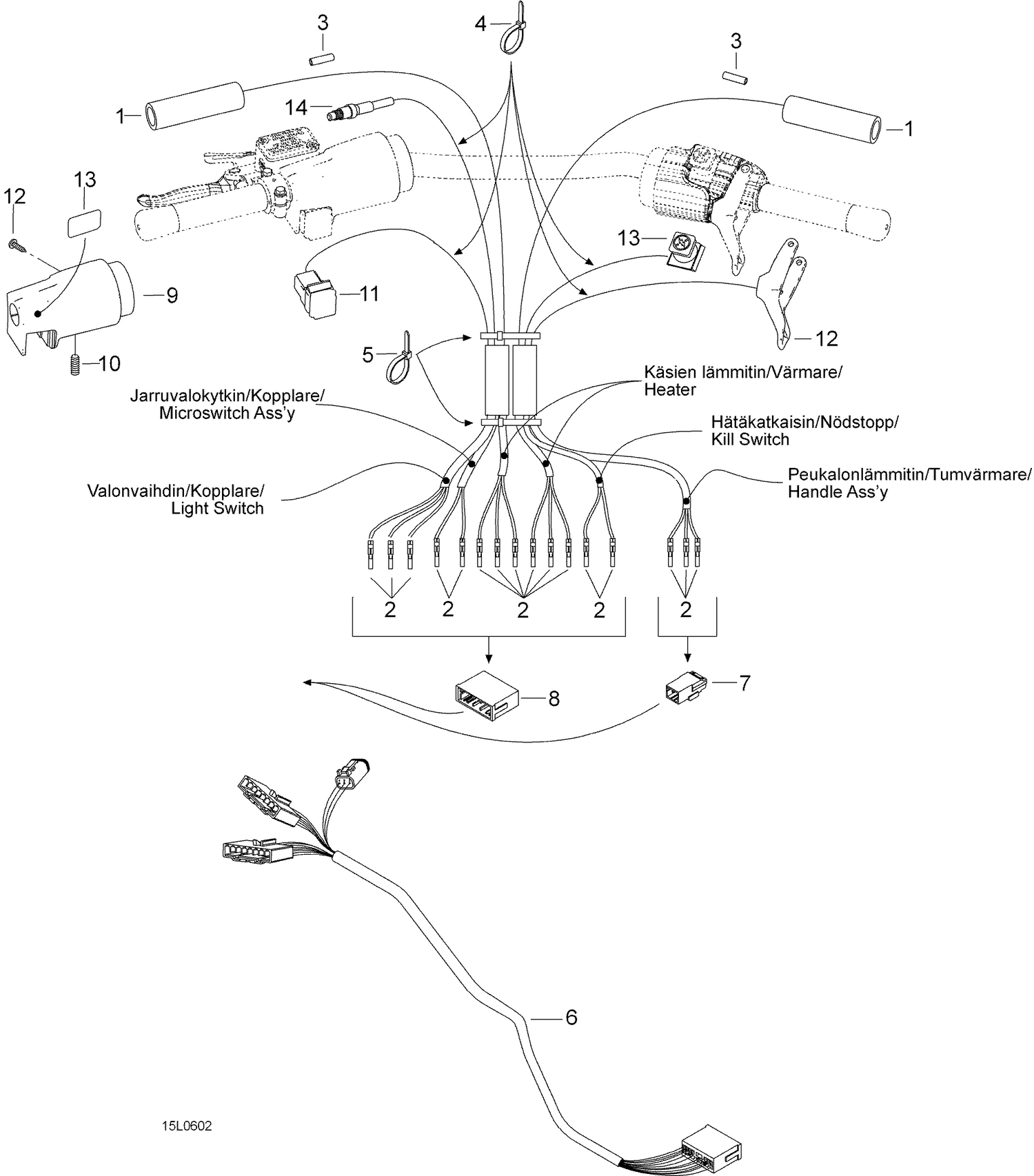

| Ref | Part Number | Description |
|---|
| 1 |
515176139 |
HEATER ELEMENT - Call your local BRP dealership This part replaces 515175657. |
| 2 |
605642628 |
CONNECTOR - Call your local BRP dealership |
| 3 |
39023 |
Plastic Tubing d=6, musta - Call your local BRP dealership |
| 4 |
27010 |
Tie-rap 98mm |
| 5 |
293750008 |
Tie-Rap 368 mm This part replaces 27100. |
| 6 |
5147106 |
Wiring harness |
| 7 |
42271 |
Male connector housing (3 circuits) |
| 8 |
42617 |
Male connector housing (15 circuits) |
| 9 |
515175696 |
BRAKE HOUSING - Call your local BRP dealership |
| 10 |
114144408 |
Screw M8 x 10 |
| 11 |
515175390 |
Light switch |
| 12 |
250000022 |
SCREW-THREAD CUT.PH.PAN TYPE25 - Call your local BRP dealership |
| 12 |
512059624 |
Throttle handle |
| 13 |
415025500 |
Decal |
| 13 |
515175410 |
Switch kill |
