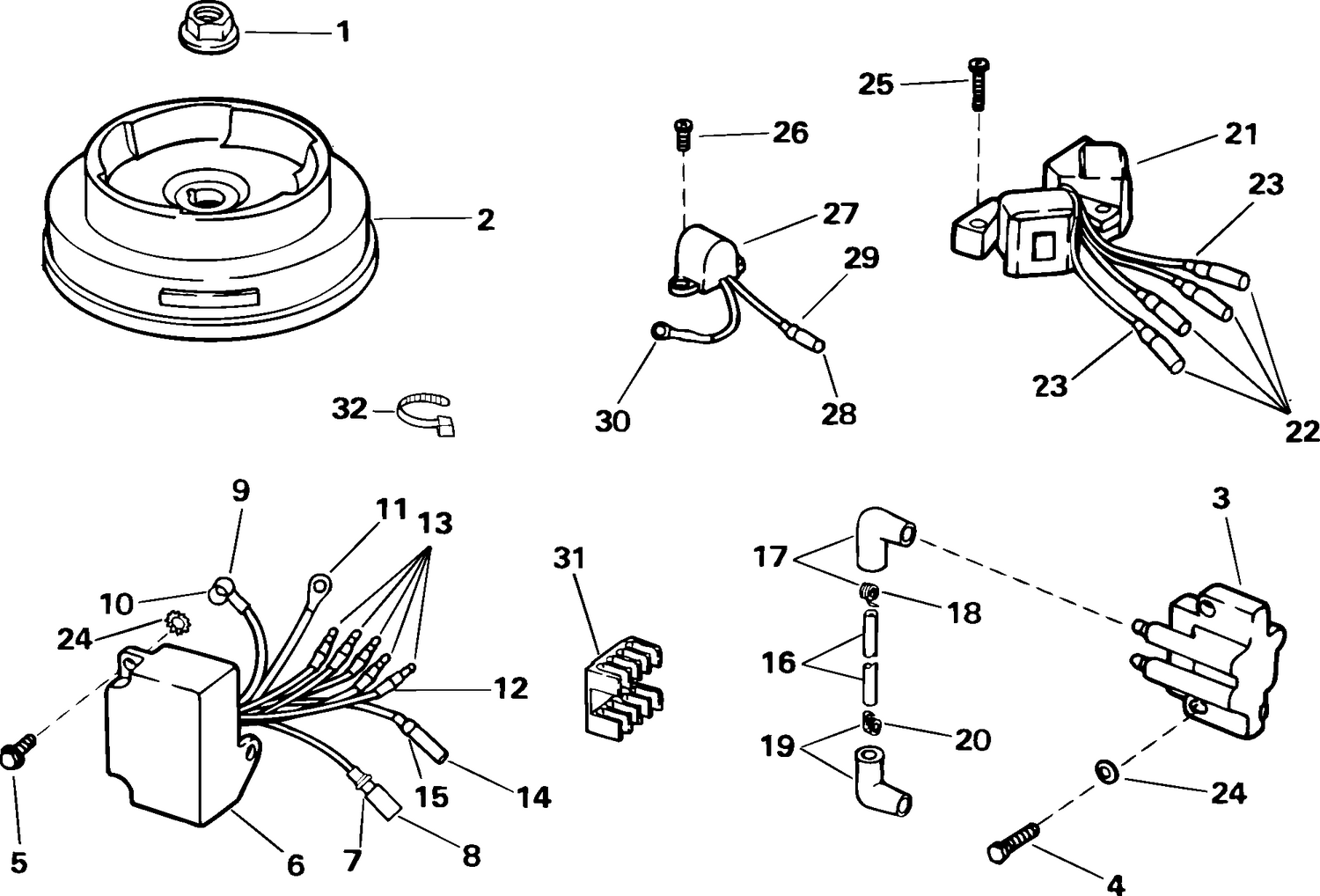

IGNITION
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0446101 | NUT, Flywheel |
| 2 | 0445015 | FLYWHEEL ASSY. |
| 3 | 0584451 | IGNITION COIL ASSY. |
| 4 | 0446032 | VIS, admission vers culasse |
| 5 | 0446099 | CLAVETTE, poulie vers arbre à cames |
| 6 | 0446805 | IGNITION MODULE |
| 16 | 0582365 | H.T. LEAD ASSEMBLY, Spark plugs to ignition coil |
| 21 | 0445128 | CHARGE COIL & LAM ASSY. |
| 25 | 0446102 | VIS de montage, capteur |
| 27 | 0445018 | SENSOR ASSY. |
| 31 | 0446308 | HOLDER, Power pack |
