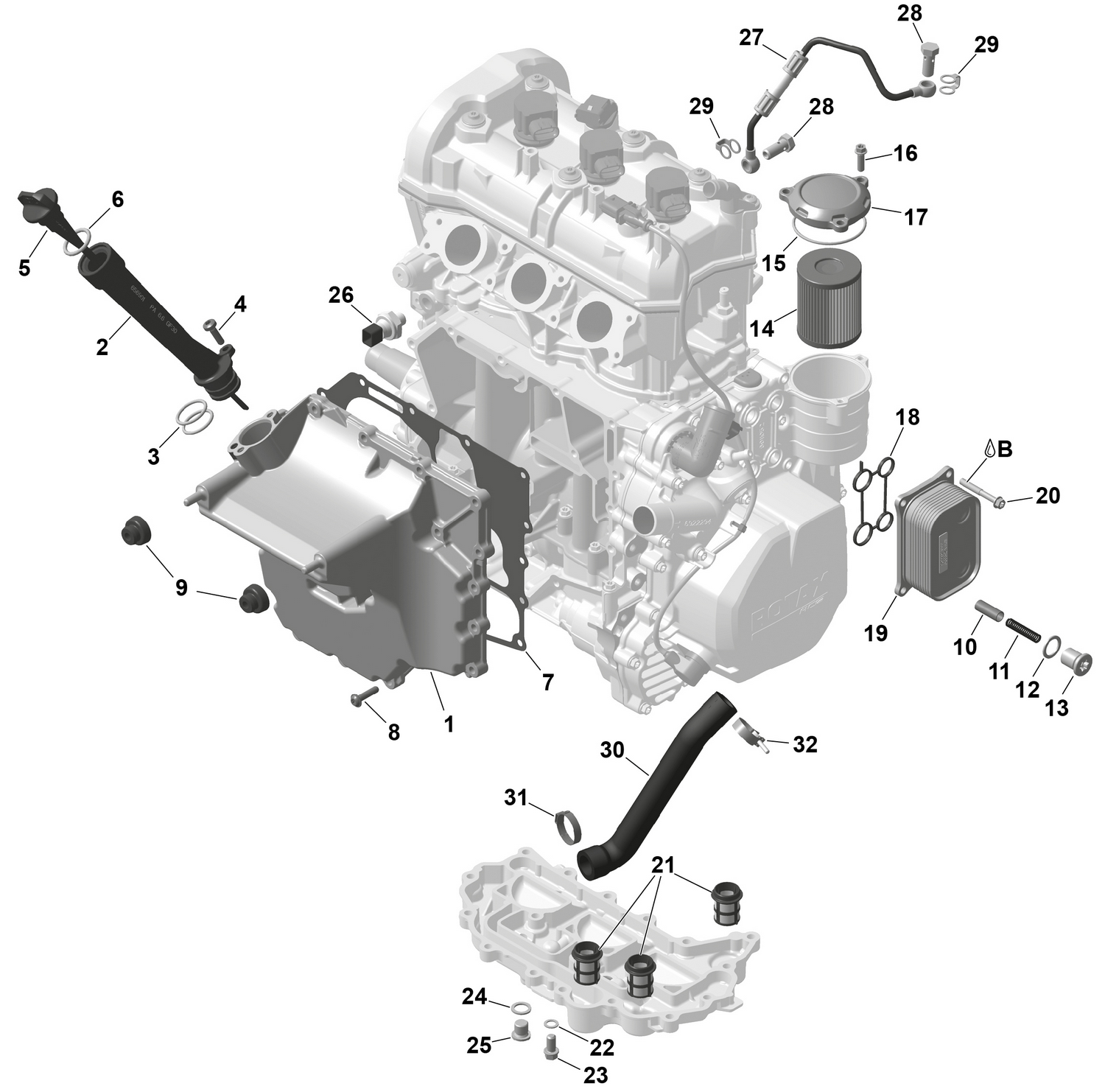

01- ROTAX - Engine Lubrication
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420656707 | Oil Sump Cover |
| 2 | 420656901 | Oil Filler Tube |
| 4 | 420441386 | Flanged Torx Screw M6 X 20 |
| 5 | 420856666 | Oil Dipstick |
| 6 | 420631642 | O-Ring |
| 8 | 420841549 | Flanged Torx Screw M6 X 25 |
| 9 | 420860150 | Rubber Grommet |
| 10 | 420256591 | Pression Regulating Piston |
| 11 | 420239445 | Spring DM6,95 D1,15 L46 |
| 13 | 420441372 | Plug Screw M16 x 1,5 |
| 14 | 420956124 | Oil Filter |
| 16 | 420440207 | Flanged Torx Screw M6X20-SW8/T30 |
| 17 | 420612135 | Oil Filter Cover |
| 19 | 420656698 | Oil Water Heat Exchanger |
| 20 | 420440324 | Flanged Torx Screw M6 X 45 |
| 21 | 420656680 | Oil Sieve |
| 22 | 420950141 | Sealing Ring A 8X13 DIN 7603 |
| 23 | 420440852 | Flanged Torx Screw M8 X 16 |
| 25 | 420241701 | Plug Screw M12 x 1,5 |
| 26 | 420256978 | Oil Pressure Switch |
| 27 | 420456322 | Oil Line |
| 28 | 420840184 | Banjo Bolt |
| 30 | 420201750 | Molded Hose |
| 31 | 420251578 | Clamp |
