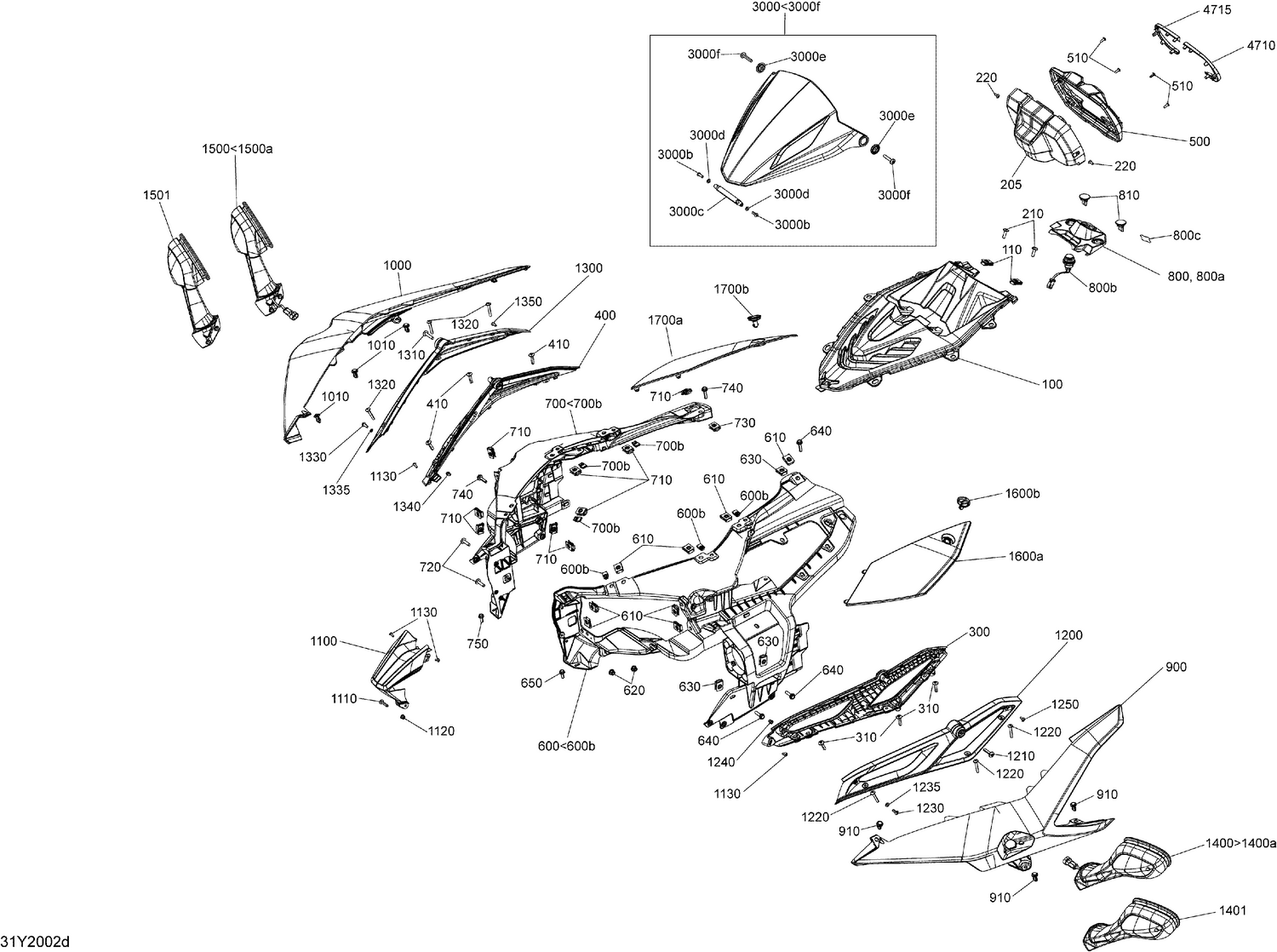

09- Body And Accessories Console

Parts (44)

Ref	Part Number	Description
100	708400208	Upper Fairing
110	250100208	Panel Nut M6 X 1.0
205	709402141	Rear Gauge Trim
210	250000722	Torx Screw M6 X 20
220	250000577	Torx Truss Screw K40 X 12
300	708400053	LH Slider Support
310	250000807	Torx Truss Screw M6 X 25
400	708400054	RH Slider Support
410	250000807	Torx Truss Screw M6 X 25
500	709402142	Front Gauge Trim
510	250000577	Torx Truss Screw K40 X 12
600b	250000958	Panel Nut M5 X 0.8
610	250100208	Panel Nut M6 X 1.0
620	233261494	Hex. Flange Elastic Nut M6
630	250100208	Panel Nut M6 X 1.0
640	250000793	Hex. Flange Screw M6 X 25
650	210261650	Hex. Flange Screw M6 X 16
700b	250000958	Panel Nut M5 X 0.8
710	250100208	Panel Nut M6 X 1.0
720	250000758	Torx Screw M6 X 25
730	250100208	Panel Nut M6 X 1.0
740	250000793	Hex. Flange Screw M6 X 25
750	210261650	Hex. Flange Screw M6 X 16
810	708400046	Cap
910	293150230	Tuflok Plastic Rivet
1010	293150230	Tuflok Plastic Rivet
1100	708400011	Black Deep Nose Fairing
1110	250000762	Torx Screw M5 X 25
1120	233251494	Elastic Flange Nut M5
1130	250000577	Torx Truss Screw K40 X 12
1200	708400016	LH Upper Console Header
1220	250000732	Torx Screw Nylon
1230	250000578	Torx Truss Screw M5 X 16, T25
1235	234051670	Flat Washer M5
1250	250000577	Torx Truss Screw K40 X 12
1300	708400017	RH Upper Console Header
1320	250000732	Torx Screw Nylon
1330	250000578	Torx Truss Screw M5 X 16, T25
1335	234051670	Flat Washer M5
1350	250000577	Torx Truss Screw K40 X 12
1600a	708400238	Black Polycarbonate, LH Acces Panel
1600b	708400065	Cover Latch Quarter Turn
1700a	708400239	Black Polycarbonate, RH Acces Panel
1700b	708400065	Cover Latch Quarter Turn
