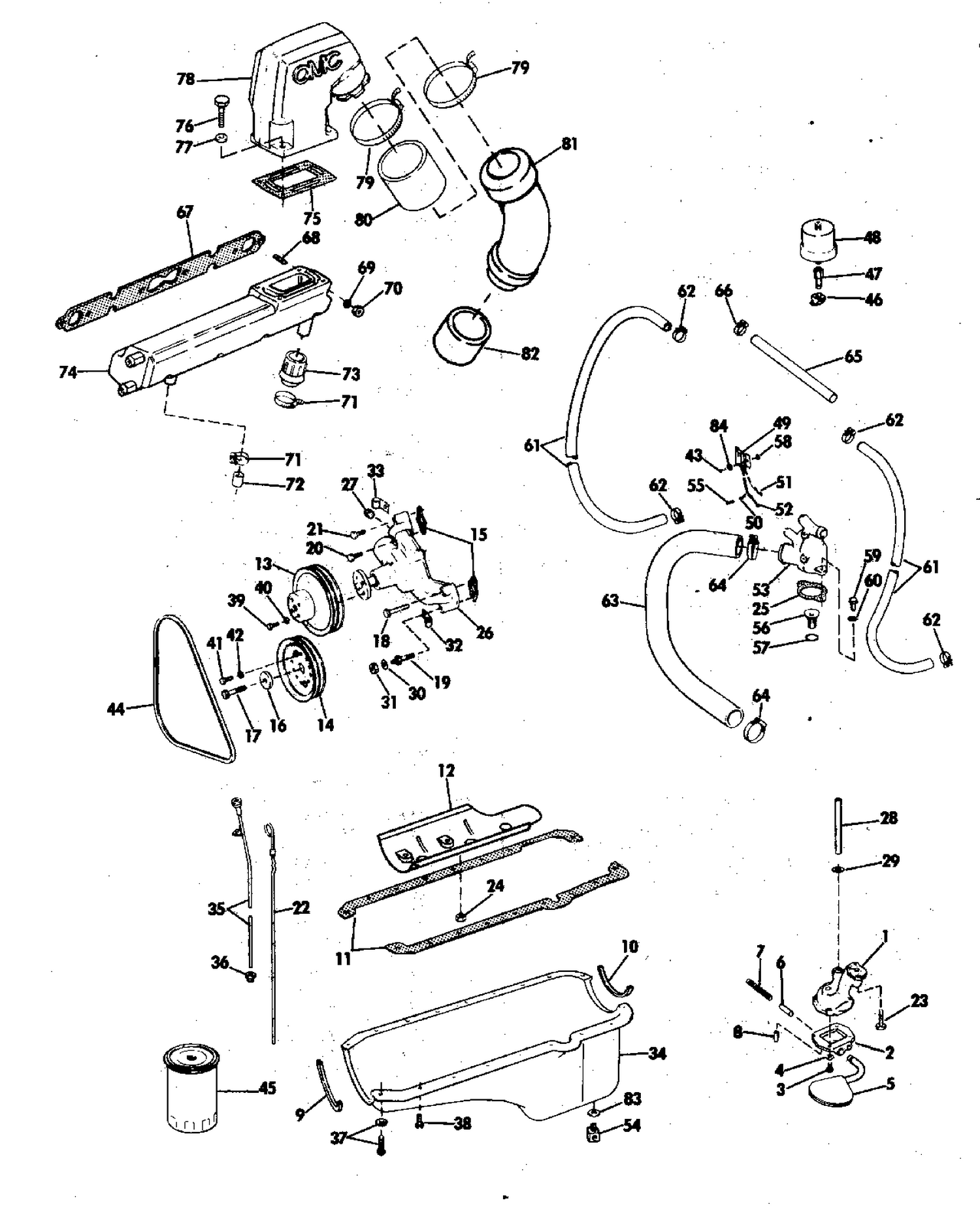

| Ref | Part Number | Description |
|---|
| 1 |
3764547 |
OIL PUMP ASSEMBLY |
| 2 |
3836980 |
COVER, Pump |
| 3 |
0133043 |
BOLT, Cover to pump |
| 4 |
9421423 |
LOCKWASHER, Switch attach |
| 5 |
3764113 |
PICK-UP SCREEN |
| 5 |
3855152 |
PICK-UP SCREEN |
| 6 |
3702366 |
VALVE, Pressure regulator |
| 7 |
3814903 |
SPRING, Regulator valve |
| 8 |
0103677 |
PIN, Pressuer regulator |
| 9 |
0909028 |
SEAL, Front |
| 10 |
0458625 |
SEAL, Rear |
| 11 |
14019828 |
GASKET SET, Oil pan |
| 12 |
3927136 |
BAFFLE, Oil pan |
| 13 |
3927796 |
PULLEY, Water pump |
| 13 |
3927797 |
PULLEY ASSY, Water pump |
| 14 |
3744043 |
PULLEY, Crankshaft |
| 14 |
3755820 |
PULLEY, Crankshaft |
| 15 |
3754587 |
GASKET, Pump to block |
| 16 |
3739422 |
WASHER |
| 17 |
9428643 |
BOLT |
| 18 |
0454906 |
BOLT, Manifold, holes #1 & 2 left side, holes #5 & 6 right side |
| 19 |
3759755 |
STUB, Water pump, lower (RH) |
| 20 |
0454908 |
BOLT, Washer pump, lower (rh) |
| 21 |
0454467 |
BOLT, Manifold to head (#1,#2) |
| 22 |
3865665 |
GAUGE, Oil level |
| 23 |
3892678 |
BOLT, Hex, oil pump to block |
| 24 |
9422297 |
NUT, 3/8-16 |
| 25 |
3701777 |
GASKET, Nipple to hsg |
| 26 |
3853850 |
WATER PUMP ASSY. This part replaces 0980477. |
| 27 |
0444746 |
PLUG, 1/2-1/4 |
| 28 |
3998287 |
SHAFT, Distributor to oil pump |
| 29 |
3764554 |
RETAINER, Distibutor to oil pump |
| 33 |
3852458 |
CLAMP, Oil drain tube This part replaces 0908924. |
| 34 |
0984477 |
OIL PAN This part replaces 0910742. |
| 34 |
14010213 |
OIL PAN |
| 35 |
0982322 |
TUBE ASSY, Oil drain |
| 35 |
0984569 |
TUBE ASSY., Oil drain This part replaces 0981397. |
| 36 |
3852445 |
Fitting This part replaces 0908492. |
| 37 |
0180075 |
SCREW |
| 38 |
3817006 |
BOLT, Camshaft sprocket |
| 39 |
0306861 |
SCREW |
| 41 |
0306865 |
SCREW, Crankshaft pulley |
| 42 |
0120177 |
L'WASHER, Alternator to brkt |
| 43 |
0317753 |
SCREW |
| 44 |
0311046 |
BELT |
| 44 |
0909971 |
BELT, Alternator |
| 45 |
0502901 |
OIL FILTER This part replaces 0173233. |
| 46 |
0121891 |
ELBOW |
| 47 |
3855776 |
ADAPTER, Oil sender This part replaces 0121688. |
| 48 |
3853800 |
OIL PRESSURE SENDER This part replaces 0982650. |
| 49 |
0383440 |
BOLTAGE REG CABLE ASSY |
| 53 |
0910178 |
THERMOSTAT HOUSING |
| 53 |
0910200 |
THERMOSTAT HSG |
| 54 |
0908484 |
ELBOW OIL DRAIN PAN |
| 56 |
0383307 |
TERMOSTAT ASSEMBLY |
| 59 |
0306414 |
SCREW |
| 61 |
0909230 |
HOSE, Thermo housing manifold |
| 61 |
0910070 |
HOSE, Thermo housing to manifold |
| 62 |
0912627 |
CLAMP This part replaces 0313851. |
| 63 |
0312781 |
HOSE, Housing to water pump |
| 65 |
0908730 |
HOSE, Intermediate housing to thermo |
| 65 |
0910190 |
HOSE, Intermediate housing to thermo housing |
| 66 |
0979803 |
CLAMP |
| 67 |
3852468 |
GASKET, Manifold to engine This part replaces 0909314. |
| 68 |
3852467 |
STUD, Manifold to engine This part replaces 0909313. |
| 69 |
0309336 |
L'WASHER, Alternator to bracket |
| 70 |
0908700 |
NUT |
| 71 |
3853786 |
CLAMP INSTRUMENT CABLE This part replaces 0980577. |
| 72 |
3852476 |
CAP, Manifold This part replaces 0909829. |
| 73 |
0909830 |
CAP, Manifold |
| 74 |
0912441 |
EXHAUST MANIFOLD, Starboard This part replaces 0909280. |
| 74 |
0912442 |
EXHAUST MANIFOLD, Port This part replaces 0910144. |
| 75 |
0909786 |
GASKET |
| 76 |
0306435 |
SCREW, Brace to alternator |
| 78 |
0909863 |
ELBOW, Exhaust This part replaces 0909218. |
| 79 |
3852604 |
CLAMP, Exhaust This part replaces 0981323. |
| 80 |
0909232 |
HOSE, Exhaust |
| 81 |
0909609 |
EXHAUST ELBOW, Star |
| 81 |
0909610 |
EXHAUST ELBOW, Port |
| 82 |
0909371 |
HOSE, Elbow to adapter |
