| Ref | Part Number | Description |
|---|
| 1 |
0437337 |

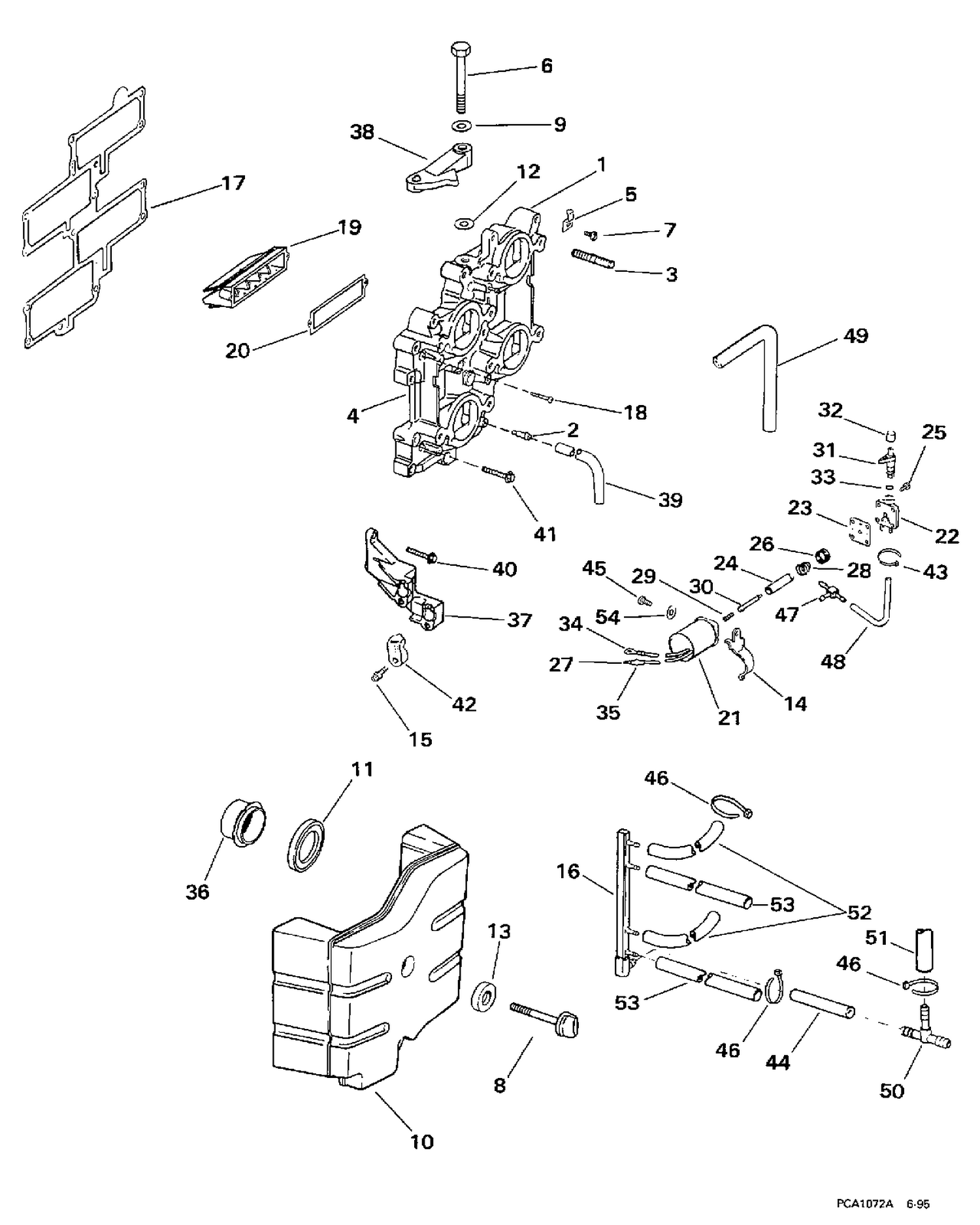

INTAKE MANIFOLD ASSY. |
| 5 |
0343985 |
POINTER, Timing |
| 6 |
0347338 |
SCREW, Cam to C/C This part replaces 0332353. |
| 7 |
0310379 |
SCREW |
| 8 |
0439922 |
FASTENER, Air silencer This part replaces 0436547. |
| 9 |
0127386 |
RONDELLE This part replaces 0341381. |
| 10 |
0436997 |
COVER ASSY., Air silencer |
| 14 |
0340381 |
BRACKET, Primer solenoid |
| 16 |
0435898 |
FUEL MANIFOLD |
| 17 |
0328622 |
GASKET, Manifold to crankcase |
| 18 |
0321707 |
SCREW, Leaf plate |
| 19 |
0396201 |
LEAF PLATE ASSY. |
| 20 |
0328626 |
GASKET, Leaf plate |
| 21 |
5007355 |
Kit Ay This part replaces 0437231. |
| 37 |
0340132 |
BLOCK, Trunnion |
| 38 |
0333094 |
THROTTLE CAM |
| 39 |
0344783 |
HOSE, Air silencer drain This part replaces 0340716. |
| 41 |
0307471 |
SCREW |
| 42 |
0329271 |
CLAMP, Trunnion cable |
| 44 |
0339768 |
HOSE, Manifold to tee |
| 46 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 47 |
0325569 |
T, amorçage |
| 48 |
HOSE, |
Primer |
| 49 |
HOSE, |
Bearing vent, 23 in. (584mm) |
| 50 |
0329603 |
TEE, Fuel hose |
| 51 |
0339266 |
HOSE, Lower manifold to carb #7 |
| 53 |
0339747 |
HOSE, Fuel manifold to #2, #4, #6, #8 carbur etors |
