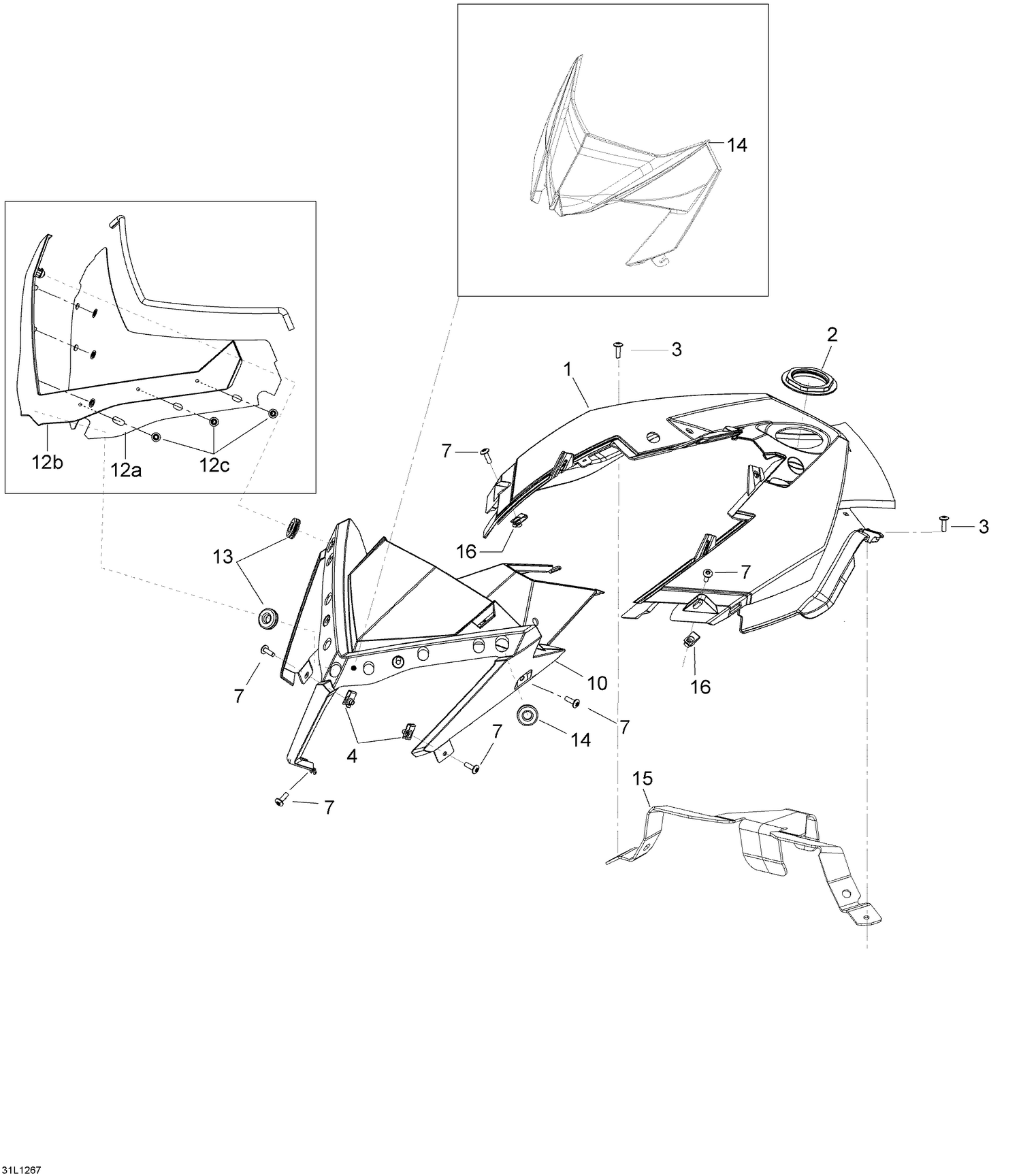

09- Windshield And Console
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 517304943 | Console |
| 2 | 517304518 | Console Nut |
| 3 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 4 | 250100198 | Panel Nut , M6 X 1.0 This part replaces 250100113. |
| 7 | 250000722 | Torx Truss Screw M6 x 20 This part replaces 250000128. |
| 8 | 232561434 | Elastic Stop Nut M6 |
| 9 | 224061201 | Flat Washer |
| 10 | 517304581 | GAUGE SUPPORT - Call your local BRP dealership |
| 11 | 250000722 | Torx Truss Screw M6 x 20 This part replaces 250000128. |
| 12a | 517304293 | Windshield |
| 12b | 860200089 | Windshield Support Kit |
| 12c | 732610072 | Push Nut |
| 13 | 517303756 | Grommet |
| 14 | 517303979 | Shroud |
| 15 | 517304230 | Support Plate For Console |
