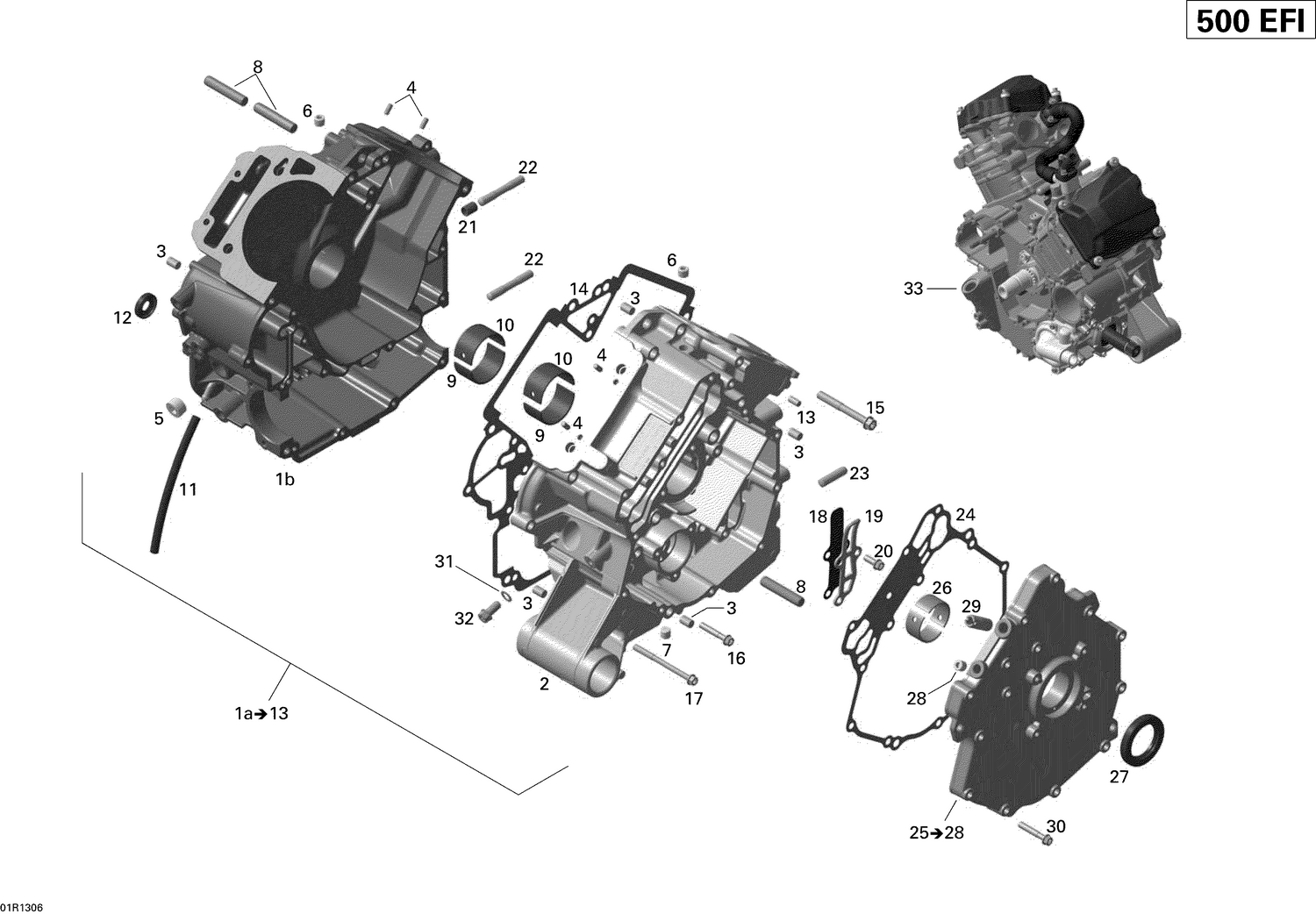

| Ref | Part Number | Description |
|---|
| 1b |
Not |
Available As Spare Part - Crankcase, MAG Side |
| 2 |
Not |
Available As Spare Part - Crankcase, PTO Side |
| 3 |
420632010 |
Center Pin 8 X 12 |
| 4 |
420929650 |
Drive Pin 5 X 10 |
| 5 |
420240170 |
Plug Screw M18 X 1.5 - Call your local BRP dealership |
| 6 |
420641323 |
Plug Screw M10 X 1 |
| 7 |
420840658 |
Plug Screw M12x1,5 This part replaces 420840657. |
| 8 |
420229302 |
Location Pin 10 M6x50 |
| 9 |
420233960 |
Plain Bearing This part replaces 420233962. |
| 10 |
420233965 |
Plain Bearing This part replaces 420233967. |
| 11 |
Not |
Available As Spare Part - Polyurethane Hose 5.2 mm |
| 12 |
420650315 |
Oil Seal This part replaces 420650310. |
| 13 |
420932780 |
Needle Pin |
| 14 |
420651220 |
Gasket |
| 15 |
420440402 |
Torx Flange Screw M8 X 65 |
| 16 |
420641258 |
Torx Flange Screw M6 X 35 |
| 17 |
420440657 |
Torx Flange Screw M6 X 75 |
| 18 |
420224721 |
Reed Valve This part replaces 420224720. |
| 19 |
420224725 |
Reed Valve Stop |
| 20 |
420641048 |
Torx Flange Screw M6 X 16 |
| 21 |
420929670 |
Dowel Pin 10 X 13 |
| 22 |
420240816 |
Stud This part replaces 420240814. |
| 23 |
420840718 |
Stud This part replaces 420840719. |
| 24 |
420651211 |
Gasket |
| 26 |
420233995 |
Bearing Sleeve This part replaces 420233997. |
| 27 |
420631933 |
Oil Seal This part replaces 420631932. |
| 28 |
420641323 |
Plug Screw M10 X 1 |
| 29 |
420256332 |
Hose Nipple |
| 30 |
420641258 |
Torx Flange Screw M6 X 35 |
| 31 |
420950141 |
Sealing Ring |
| 32 |
420440852 |
Torx Flange Screw M8 X 16 |
