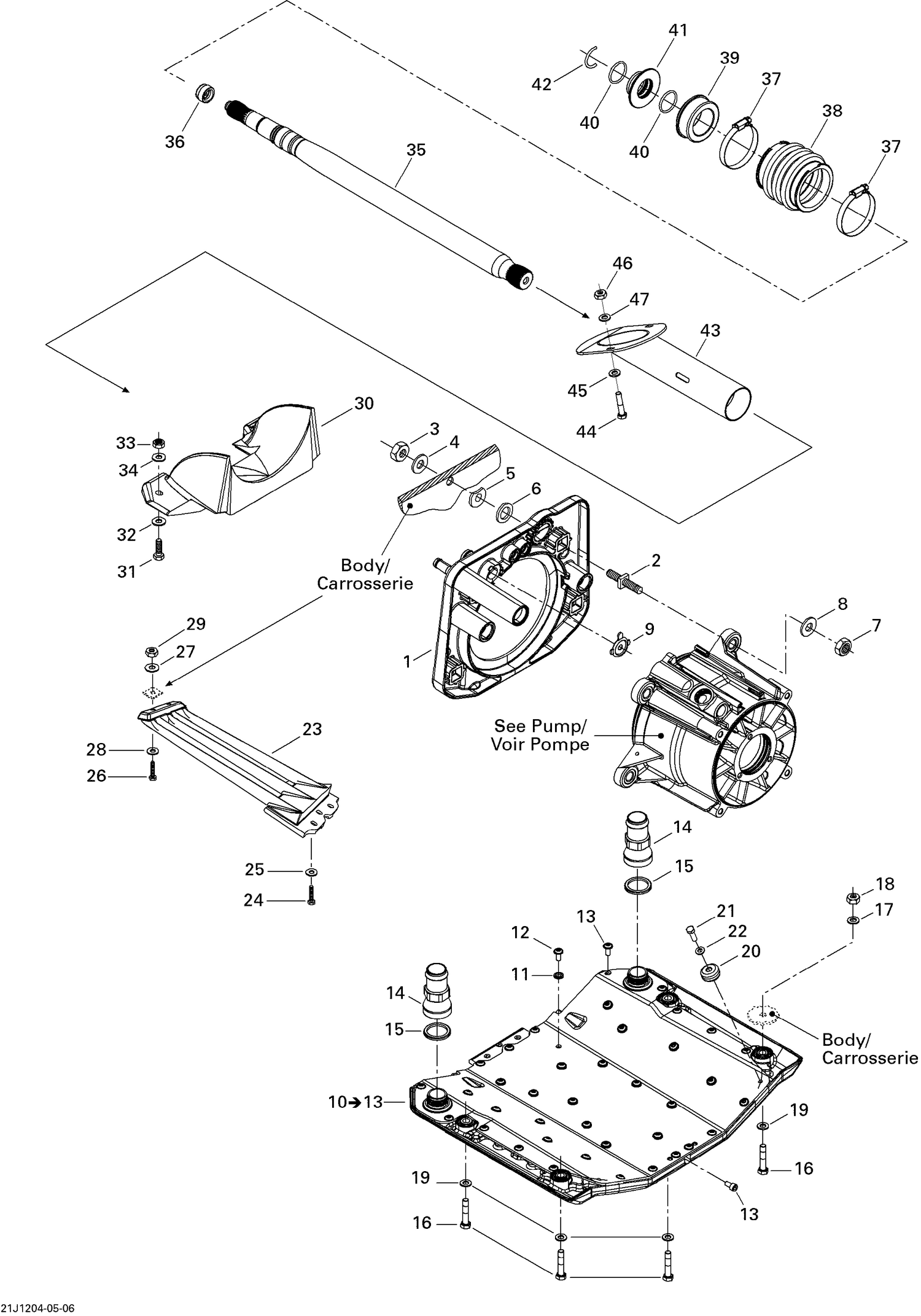

| Ref | Part Number | Description |
|---|
| 1 |
271001805 |
Pump Support |
| 2 |
250300022 |
Square Stud |
| 3 |
232501200 |
Elastic Stop Nut M10, Brass |
| 4 |
234002600 |
Flat Washer 10 mm, Stainless |
| 5 |
272000053 |
Shim 0.3 mm |
| 6 |
0460011 |
NEEDS DESCRIPTION This part replaces 204120067. |
| 7 |
232501200 |
Elastic Stop Nut M10, Brass |
| 8 |
211200051 |
Flat Washer |
| 9 |
271002029 |
Reducer, Green This part replaces 271001586. |
| 11 |
250200114 |
Sealing Washer This part replaces 250200106. |
| 12 |
250000384 |
Torx Screw M6 X 14 |
| 13 |
250500005 |
Socket Drain Plug M6 X 12 |
| 14 |
293710111 |
Straight Plastic Fitting |
| 15 |
293300121 |
O-Ring |
| 16 |
207084060 |
Hex. Screw M8 X 40 |
| 17 |
234082600 |
Flat Washer 8 mm, Stainless |
| 18 |
232581600 |
Hex. Elastic Nut M8 |
| 19 |
234081600 |
Stainless, Flat Washer 8 mm |
| 20 |
271001813 |
Anode Zinc |
| 21 |
207362060 |
Hex. Screw M6 X 20, Scotch Grip |
| 22 |
234061600 |
Stainless Flat Washer M6 |
| 23 |
204120375 |
PUMP GRATE - Call your local BRP dealership |
| 24 |
207161660 |
Hex. Screw M6 X 16 |
| 25 |
234061600 |
Stainless Flat Washer M6 |
| 26 |
207184060 |
Hex. Screw M8 X 40 |
| 27 |
234081600 |
Stainless, Flat Washer 8 mm |
| 28 |
234081600 |
Stainless, Flat Washer 8 mm |
| 29 |
232581600 |
Hex. Elastic Nut M8 |
| 30 |
204120370 |
INLET RAMP - Call your local BRP dealership |
| 31 |
207084060 |
Hex. Screw M8 X 40 |
| 32 |
234081600 |
Stainless, Flat Washer 8 mm |
| 33 |
232581600 |
Hex. Elastic Nut M8 |
| 34 |
234082600 |
Flat Washer 8 mm, Stainless |
| 35 |
271001550 |
Drive Shaft |
| 36 |
272000173 |
Drive Shaft Plug |
| 37 |
293650079 |
Norma Clamp |
| 38 |
271001933 |
Bellow This part replaces 271001422. |
| 40 |
293300107 |
O-Ring |
| 41 |
295501204 |
Carbon Ring Kit This part replaces 271001434. |
| 42 |
271001577 |
C-Clip |
| 43 |
271001836 |
SHAFT GUARD ASSY - Call your local BRP dealership This part replaces 271001716. |
| 44 |
208653560 |
Phillips Screw M5 X 35 |
| 45 |
234051600 |
Flat Washer M5, Stainless |
| 46 |
232551600 |
Hex. Elastic Nut M5 |
