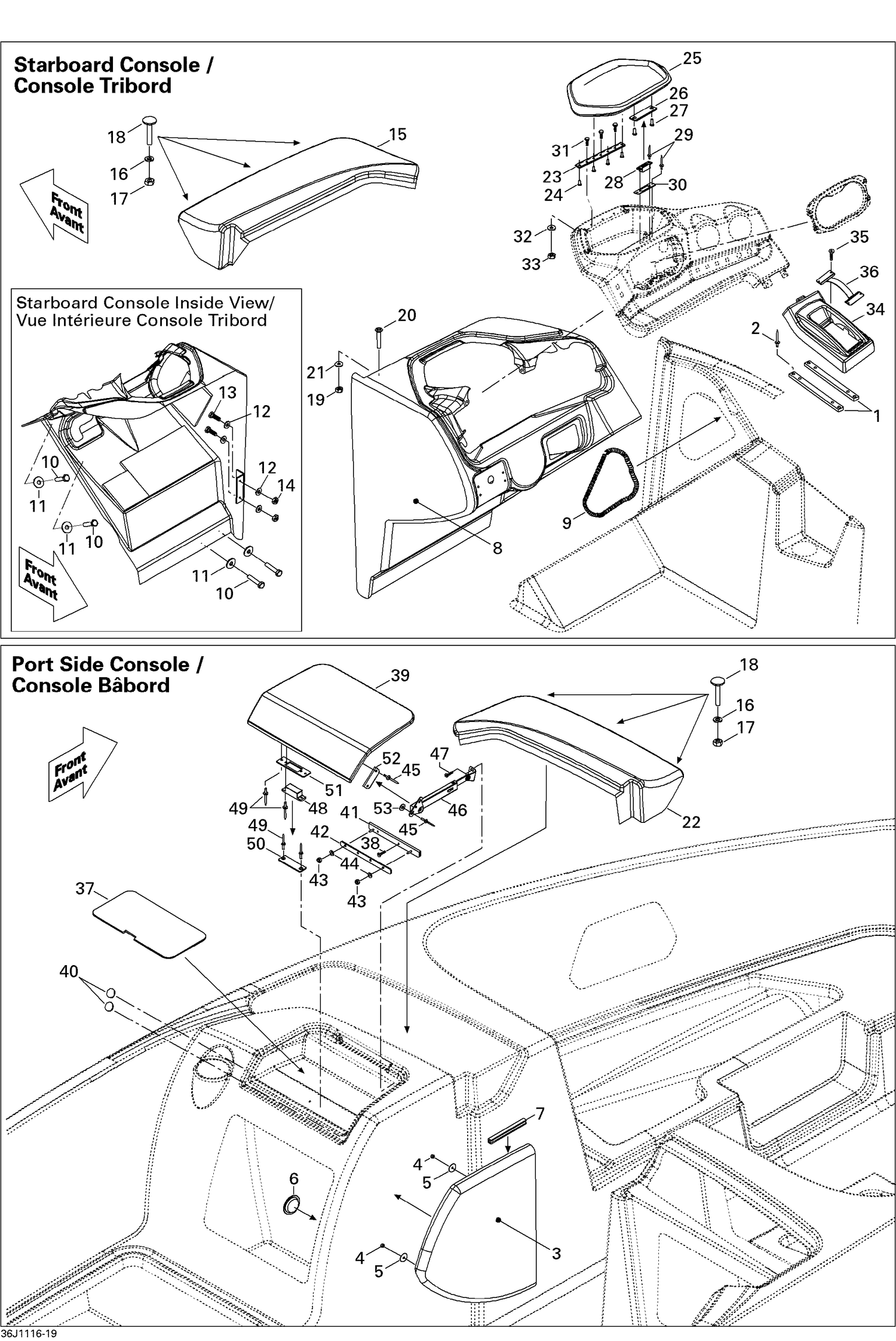

| Ref | Part Number | Description |
|---|
| 1 |
293450061 |
SHIFTER INSERT - Call your local BRP dealership |
| 2 |
293150013 |
Pop Rivet 3/16" |
| 3 |
291003356 |
LATERAL FILLER PANEL - Call your local BRP dealership |
| 4 |
212000005 |
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership |
| 5 |
204100139 |
WASHER-FENDER/S.S. - Call your local BRP dealership |
| 6 |
204130190 |
BLACK CAP 1 1/2 - Call your local BRP dealership |
| 7 |
204071878 |
TRIM, WHITE - Call your local BRP dealership |
| 8 |
291003135 |
CONSOLE ASS'Y, STARBOARD - Call your local BRP dealership |
| 9 |
204550028 |
SLIT CONDUIT, METER - Call your local BRP dealership |
| 10 |
207163060 |
Hex. Screw M6 X 30 |
| 11 |
234062600 |
Flat Washer M6, Stainless |
| 12 |
234061600 |
Stainless Flat Washer M6 |
| 13 |
207163060 |
Hex. Screw M6 X 30 |
| 14 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 15 |
291003155 |
CONSOLE CAP, STARBOARD - Call your local BRP dealership |
| 16 |
204100139 |
WASHER-FENDER/S.S. - Call your local BRP dealership |
| 17 |
212000005 |
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership |
| 18 |
204000130 |
Elevator Bolt |
| 19 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 20 |
208563060 |
OVAL HEAD PHILLIPS COUNTERSUNK SCREW M6 - Call your local BRP dealership |
| 21 |
234062600 |
Flat Washer M6, Stainless |
| 22 |
291003156 |
CONSOLE CAP, PORT SIDE - Call your local BRP dealership |
| 23 |
291003006 |
HINGE - Call your local BRP dealership |
| 24 |
Not |
Available As Spare Part - Pan Head Screw |
| 25 |
291003181 |
CONSOLE BROW - Call your local BRP dealership |
| 26 |
204072908 |
LATCH BRACKET - Call your local BRP dealership |
| 27 |
293150026 |
RIVET_POP 1/8 - Call your local BRP dealership |
| 28 |
204072907 |
MAGNETIC CATCH - Call your local BRP dealership |
| 29 |
293150057 |
Rivet 1/8” |
| 30 |
204073168 |
LATCH SPACER - Call your local BRP dealership |
| 31 |
Not |
Available As Spare Part - Hex. Screw |
| 32 |
234052600 |
Flat Washer 5 mm, Stainless |
| 33 |
212000006 |
HEX. ELASTIC STOP NUT - Call your local BRP dealership |
| 34 |
291003138 |
SHIFTER PANEL - Call your local BRP dealership |
| 35 |
208641260 |
PHILLIPS SCREW M4 X 12 - Call your local BRP dealership |
| 36 |
291003310 |
SHIFTER PANEL INSERT - Call your local BRP dealership |
| 37 |
204073048 |
MAT - Call your local BRP dealership |
| 38 |
205441660 |
Socket Head Screw M4 X 16 |
| 39 |
204073523 |
GLOVE BOXE UPPER COVER - Call your local BRP dealership |
| 40 |
204070940 |
BUMPER - Call your local BRP dealership |
| 41 |
204073197 |
HINGE, BLACK - Call your local BRP dealership |
| 42 |
204130226 |
SPACER - Call your local BRP dealership |
| 43 |
232541600 |
Elastic Stop Nut M4 |
| 44 |
234041600 |
Flat Washer 4 mm, Stainless |
| 45 |
293150285 |
Pop RIvet 1/8 X ,375 This part replaces 293150006. |
| 46 |
204073220 |
GLOVEBOX STAY - Call your local BRP dealership |
| 47 |
209641360 |
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership |
| 48 |
204072907 |
MAGNETIC CATCH - Call your local BRP dealership |
| 49 |
293150285 |
Pop RIvet 1/8 X ,375 This part replaces 293150006. |
| 50 |
204072908 |
LATCH BRACKET - Call your local BRP dealership |
| 51 |
204073168 |
LATCH SPACER - Call your local BRP dealership |
| 52 |
204073309 |
GLOVEBOX STAY BRACKET - Call your local BRP dealership |
