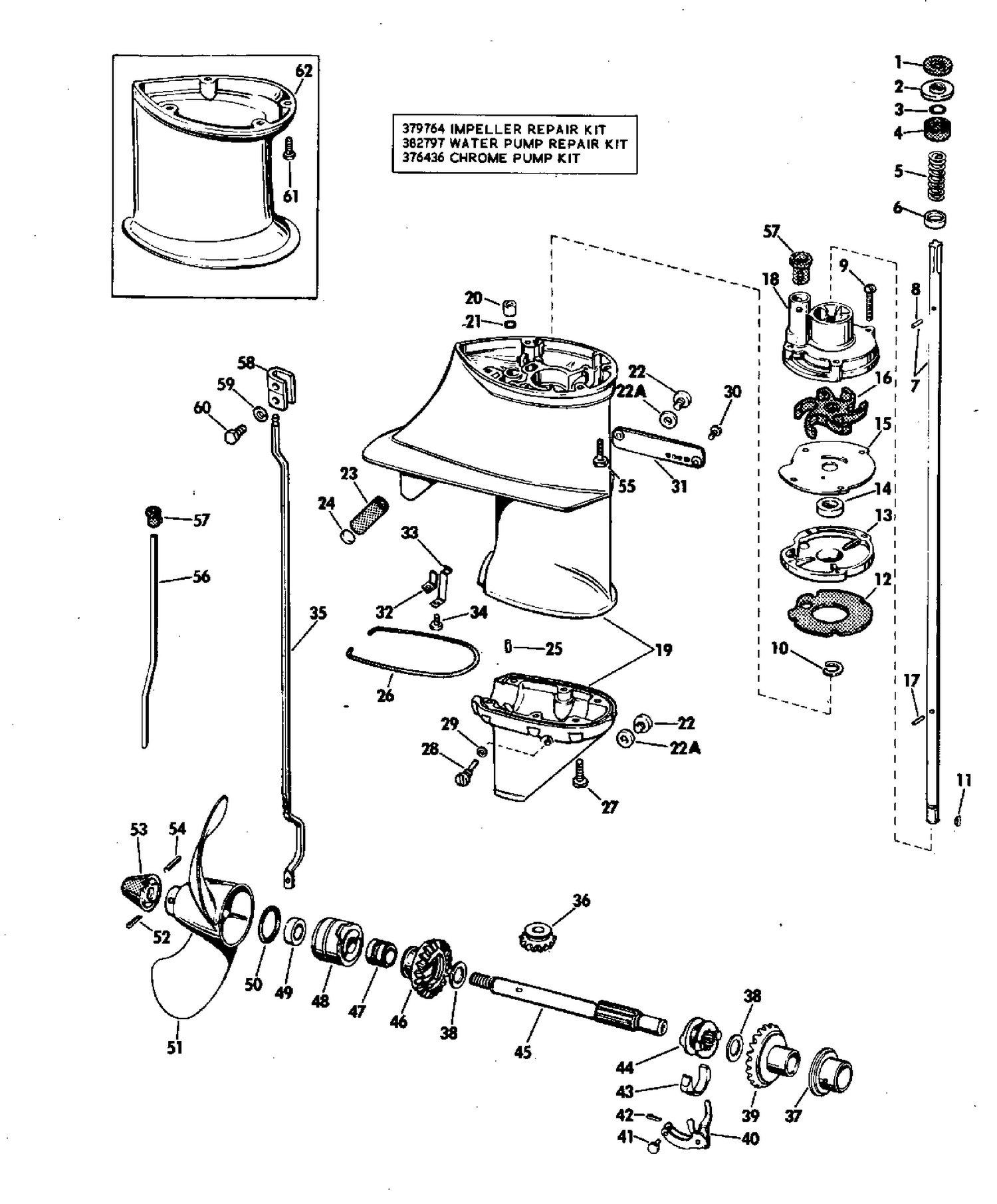

| Ref | Part Number | Description |
|---|
| 1 |
0303355 |
GASKET |
| 2 |
0303356 |
PLATE |
| 4 |
0303391 |
SEAL |
| 5 |
0303357 |
SPRING |
| 6 |
0303327 |
WASHER |
| 7 |
0381026 |
DRIVE SHAFT ASSY., Std |
| 7 |
0381027 |
DRIVE SHAFT ASST., Long 5 INCH LONGER PARTS |
| 9 |
0303395 |
SCREW |
| 10 |
0312107 |
RETAINER |
| 12 |
0303339 |
GASKET, Bearcase to bearing housing |
| 13 |
0382796 |
HOUSING & RETAINER ASSY |
| 15 |
0305303 |
PLATE, Impeller house |
| 16 |
0277181 |
IMPELLER & PIN ASSY |
| 18 |
0303442 |
HOUSING, Impeller |
| 19 |
0390040 |
GEARCAE, Bush. & pin assembly This part replaces 0382574. |
| 21 |
0301877 |
O RING SHIFT ROD |
| 25 |
0300611 |
AXE, turbine vers arbre d'entraînement |
| 26 |
SEAL, |
Gearcase |
| 29 |
0307853 |
O RING |
| 30 |
0303679 |
SCREW |
| 31 |
0304579 |
COVER, By-pass, upper |
| 32 |
0303700 |
SPRING, Detent backup |
| 33 |
0303466 |
DENTENT, Spring |
| 34 |
0306478 |
SCREW |
| 35 |
0309582 |
SHIFT ROD, Lower |
| 36 |
0312108 |
GEAR - PINION |
| 37 |
0303380 |
BEARING, Front |
| 39 |
0377152 |
GEAR & BUSHING, Front |
| 40 |
0303340 |
LEVER, Shifter |
| 43 |
0303381 |
CRADDLE,Shifter |
| 44 |
0377458 |
SHIFTER, Clutch dog |
| 45 |
0305261 |
SHAFT, Propeller |
| 46 |
0305216 |
GEAR, Reverse |
| 47 |
0303998 |
BUSHING, Reverse gear |
| 48 |
0382291 |
GEAR CASE HEAD & BEARING |
| 51 |
0380958 |
PROPELLER AND BUSHING, 8" dia. x 7-1?4 pitch, 2 blade |
| 52 |
0305296 |
COTTER PIN |
| 53 |
0305394 |
NUT |
| 54 |
0307949 |
DRIVE PIN, Propeller |
| 55 |
0307151 |
SCREW |
| 56 |
0304317 |
TUBE, Water (standard) |
| 56 |
0304318 |
TUBE, Water, long |
| 58 |
0304081 |
CONNECTOR 5 " EXTENSION KIT |
| 61 |
0307151 |
SCREW |
| 62 |
0324828 |
EXTENSION, Gearcase This part replaces 0303672. |
| 0381294 |
0381294 |
EXTENSINO KIT ASSEMBLY 5 INCH LONGER PARTS |
| 0382795 |
0382795 |
GEARCASE ASSEMBLY |
