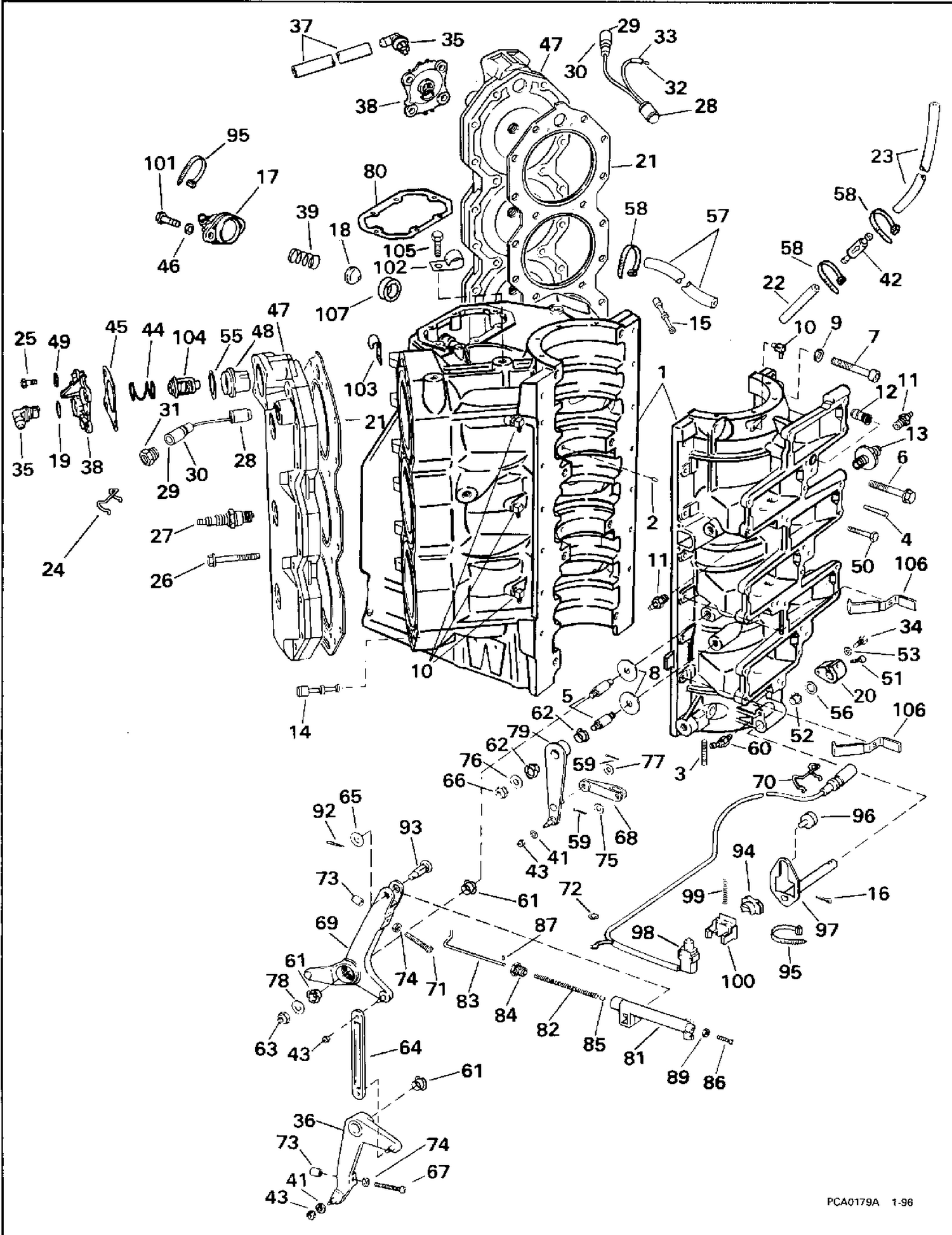

| Ref | Part Number | Description |
|---|
| 1 |
5000552 |
CYLINDER & C'CASE ASSY. This part replaces 0437351. |
| 16 |
0330145 |
COTTER PIN |
| 17 |
0337249 |
COVER, Blow-off valve |
| 18 |
0344202 |
VALVE, Blow-off This part replaces 0337069. |
| 20 |
0335191 |
LEVER, Shift rod |
| 21 |
0345257 |
GASKET, Cylinder head This part replaces 0340919. |
| 22 |
HOSE, |
Valve, lower, 2 1/4 in. (57mm) |
| 23 |
HOSE, |
To upper bearing, 20 in. (508mm) |
| 24 |
0512741 |
DISPOSITIF DE RETENUE, conn. de l'interrupteur thermostatique |
| 26 |
0339066 |
SCREW, Cylinder head |
| 27 |
0432424 |
SPARK PLUG , QL16V |
| 27 |
0437680 |
SPARK PLUG, Champion QL82YC |
| 27 |
0502180 |
SPARK PLUG, Champion QL77JC4 This part replaces 0387633. |
| 28 |
0585038 |
TEMPERATURE SWITCH, Starboard |
| 28 |
0585039 |
TEMPERATURE SWITCH, Port |
| 34 |
0327590 |
PIN, Shift lever |
| 35 |
0337487 |
FITTING, Thermostat cover |
| 36 |
0396374 |
THROTTLE LEVER, Lower |
| 37 |
HOSE, |
Thermostat cover to blow-off, 5 in. (12 mm) |
| 38 |
0337486 |
COVER, Thermostat |
| 39 |
0336826 |
SPRING, Blow-off valve |
| 41 |
0328737 |
RONDELLE, levier de sens de marche et manette des gaz |
| 42 |
0434927 |
SOUPAPE DE RETENUE |
| 44 |
0337067 |
SPRING, Thermostat |
| 45 |
0337068 |
DIAPHRAGM, Thermostat cover |
| 47 |
0435572 |
CYLINDER HEAD |
| 51 |
0328695 |
CLAMP, Engine cable |
| 52 |
0312708 |
BUSHING |
| 56 |
0202026 |
LOCK WASHER, Stud |
| 57 |
HOSE, |
Drain system |
| 58 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 64 |
0331224 |
LINK, Shift lever to shift arm |
| 65 |
0330995 |
RONDELLE, levier |
| 67 |
0334219 |
SCREW |
| 68 |
0331737 |
LINK, Shift arm |
| 69 |
0396714 |
THROTTLE LEVER, Upper |
| 70 |
0512741 |
DISPOSITIF DE RETENUE, conn. de l'interrupteur thermostatique |
| 73 |
0318660 |
BUMPER, Screw, throttle stop |
| 79 |
0433481 |
SHIFT ARM |
| 81 |
0396667 |
LINK ASSY., Spark advance |
| 92 |
0330145 |
COTTER PIN |
| 93 |
0328636 |
PIN, Advance link |
| 94 |
0513811 |
SUPPORT, coulisse |
| 95 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 96 |
0331404 |
AXE, aide à la commande de sens de marche |
| 97 |
0431908 |
LEVIER & ARBRE DE SENS DE MARCHE |
| 98 |
0586294 |
SWITCH & CABLE This part replaces 0584754. |
| 99 |
0333749 |
RESSORT |
| 100 |
0513134 |
SUPPORT, à clipser |
| 103 |
0330157 |
CLAMP |
| 104 |
0437090 |
THERMOSTAT |
| 106 |
0334169 |
CLAMP, Hose, control valve |
