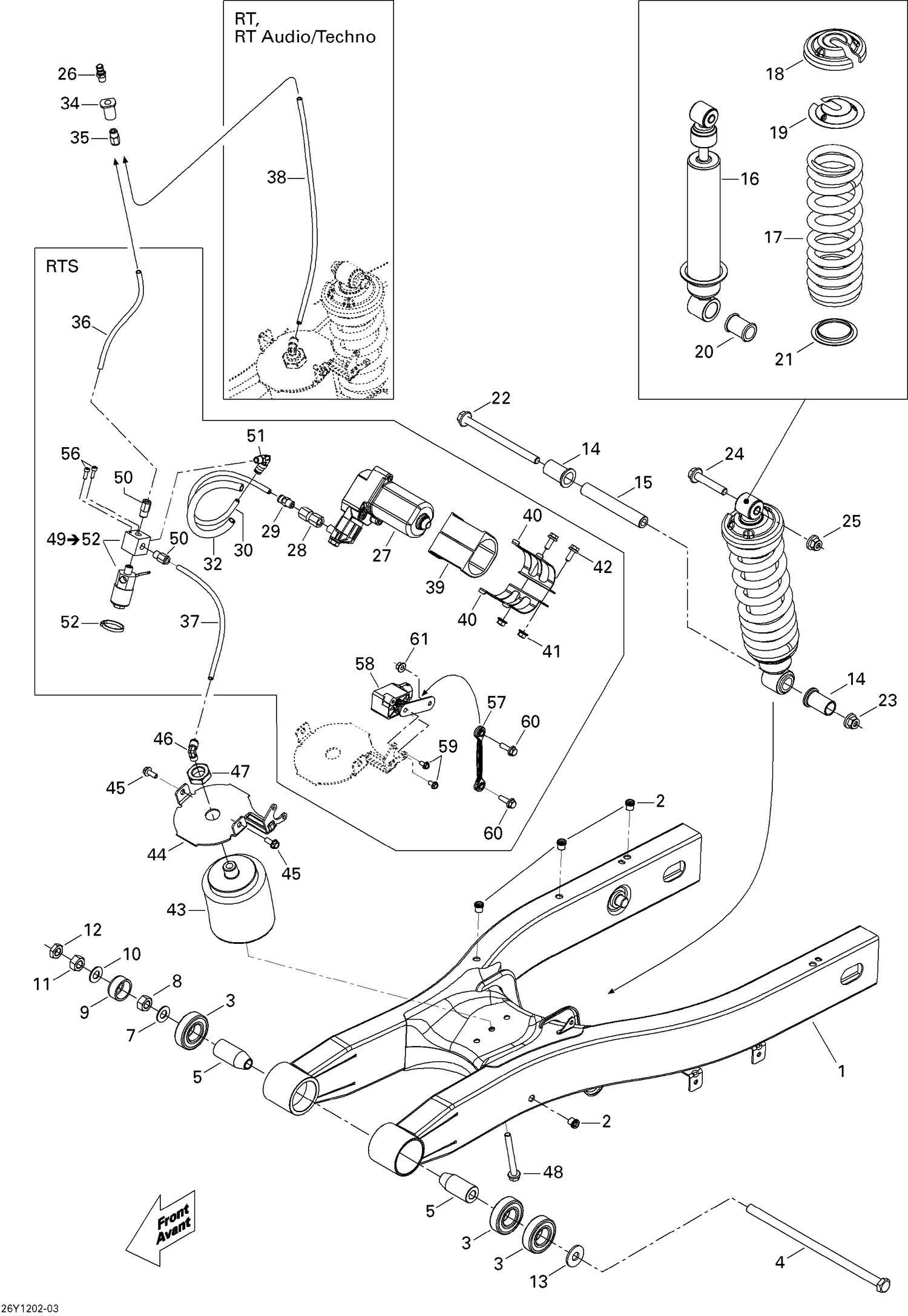

08- Suspension, Rear
Parts (53)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 706001180 | SWING ARM - Call your local BRP dealership |
| 2 | 293450275 | Insert This part replaces 415107300. |
| 3 | 293350115 | Ball Bearing This part replaces 293350055. |
| 4 | 250000367 | HEX. SCREW M12 X 265, SCOTCH GRIP - Call your local BRP dealership |
| 5 | 706000474 | INTERNAL BUSHING - Call your local BRP dealership |
| 7 | 503191435 | WASHER - Call your local BRP dealership |
| 8 | 232021486 | HEX. NUT M12 - Call your local BRP dealership |
| 9 | 706000486 | BUSHING - Call your local BRP dealership |
| 10 | 503191435 | WASHER - Call your local BRP dealership |
| 11 | 232021486 | HEX. NUT M12 - Call your local BRP dealership |
| 12 | 232120434 | HEX. JAM NUT M12 - Call your local BRP dealership |
| 13 | 506136400 | FLAT WASHER - Call your local BRP dealership |
| 14 | 706000410 | Spacer |
| 15 | 706000409 | Shock Absorber Shaft |
| 16 | 706001262 | Shock This part replaces 706000907. |
| 17 | 706000906 | SPRING - Call your local BRP dealership |
| 18 | 503191604 | SPRING STOPPER - Call your local BRP dealership |
| 19 | 503191605 | CAP - Call your local BRP dealership |
| 20 | 503191609 | Urethane Cushion |
| 21 | 503191872 | Spring Guide |
| 22 | 230604034 | Hex. Flange Screw M10 X 140 |
| 23 | 233201434 | Hex. Flange Elastic Nut M10 |
| 24 | 207605534 | Hex. Flange Screw |
| 25 | 233201434 | Hex. Flange Elastic Nut M10 |
| 26 | 706002797 | Air Valve This part replaces 706000678. |
| 27 | 706001349 | Compressor This part replaces 503192517. |
| 28 | 706000831 | Ckeck Valve |
| 29 | 706000869 | Connector |
| 30 | 219704415 | Hose 4.32Mm 3000Mm Long |
| 32 | 219704425 | Tubing 6 Mm 3000Mm Long |
| 34 | 706000735 | Pneumatic Connector |
| 35 | 706000869 | Connector |
| 36 | 219704415 | Hose 4.32Mm 3000Mm Long |
| 37 | 219704415 | Hose 4.32Mm 3000Mm Long |
| 38 | XXX | Not Available As Spare Parts |
| 39 | 706000631 | Compressor Isolator |
| 40 | 503193103 | Compressor Bracket |
| 41 | 233061414 | Hex. Flange Nut M6 |
| 42 | 207661644 | Hex. Flange Screw M6 X 16 |
| 43 | 219800175 | Air Damper Kit This part replaces 706000613. |
| 44 | 706001082 | Support Plate |
| 45 | 210261050 | Hex. Forming Screw M6 X 10 This part replaces 210261080. |
| 46 | 706001018 | Elbow 90° |
| 47 | 250100119 | Jam Nut M20 |
| 48 | 207687544 | Hex. Flange Screw M8 X 75 |
| 50 | 706000869 | Connector |
| 51 | 414115200 | Tie-Rap 180 mm |
| 52 | 706000928 | Elbow 90° |
| 56 | 205041254 | Socket Head Screw M4 X 12 This part replaces 205041284. |
| 57 | 706200895 | TIE ROD - Call your local BRP dealership |
| 58 | 710001651 | Position Sensor |
| 59 | 207551044 | Hex. Flange Screw M5 X 10 |
| 60 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip This part replaces 207562044. |
