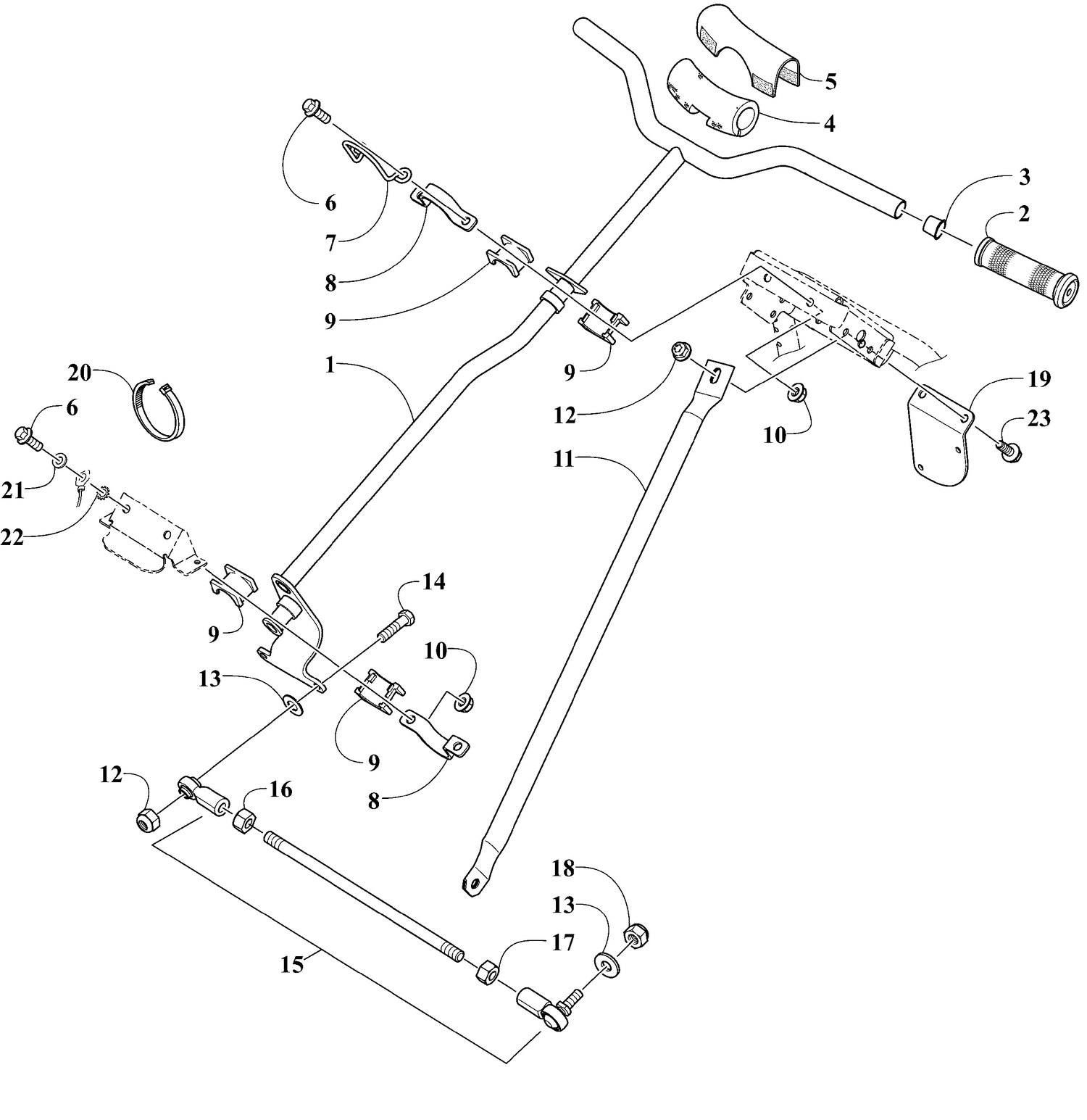

Steering
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 1705-579 | Black, Steering Post |
| 2 | 1605-174 | Handle Grip |
| 3 | 2623-200 | Plug |
| 4 | 1605-107 | Handlebar Pad |
| 5 | 1705-444 | Handlebar Pad Cover |
| 6 | 8020-041 | Cap Screw 1/4 X 0.875 |
| 7 | 0645-826 | Harness Guide |
| 8 | 0705-896 | Black, Steering Support Bracket |
| 9 | 0605-444 | Steering Post Bearing |
| 10 | 8047-366 | Elastic Stop Nut 1/4-20 |
| 11 | 6716-074 | Black, RH Steering Support |
| 11 | 6716-075 | Black, LH Steering Support |
| 12 | 8047-426 | Elastic Stop Nut 1/4-20 |
| 13 | 8050-247 | Flat Washer |
| 14 | 8020-134 | Cap Screw 5/16-18 |
| 15 | 1705-585 | Tie Rod Ass'y |
| 16 | 0623-260 | LH Hex Jam Nut 5/16 |
| 17 | 0123-144 | RH Hex Jam Nut 5/16 |
| 18 | 8040-456 | Hex Jam Nut 5/16 |
| 19 | 2670-665 | Fuel Pump Bracket |
| 20 | 414115200 | Tie-Rap 180 mm |
| 21 | 8050-212 | Flat Washer 1/4 |
| 22 | 8053-212 | Lock Washer 1/4 |
