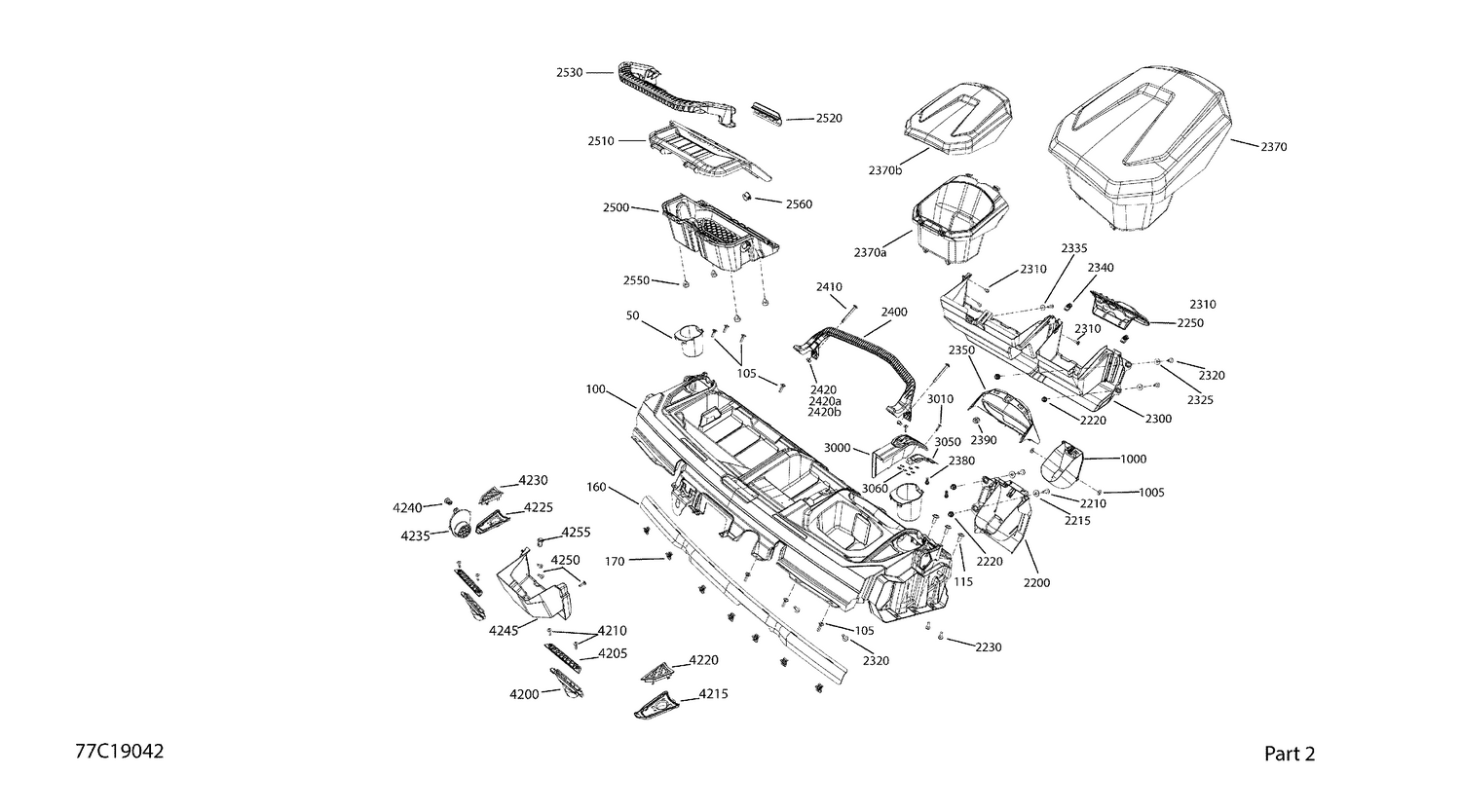

09- Cab Interior - XT CAB - Dash Section
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| 50 | 707900288 | Cup Holder |
| 100 | 715006520 | Dashboard Upper Kit This part replaces 715005588. |
| 105 | 250000720 | Torx Screw K50 X 16 |
| 115 | 250000721 | Torx Truss Screw M6 X 16 |
| 1000 | 707900252 | Drawer |
| 1005 | 293300194 | O-Ring |
| 2200 | 707900251 | LH Lower Dash This part replaces 707900251. |
| 2210 | 250000722 | Torx Screw M6 X 20 |
| 2215 | 234062670 | Stainless Steel Flat Washer |
| 2220 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 2230 | 250000720 | Torx Screw K50 X 16 |
| 2250 | 703501098 | Switch Support This part replaces 707900320. |
| 2350 | 707900358 | Cluster Support |
| 2370a | 703501087 | Storage Box Ass'y This part replaces 707900284. |
| 2370b | 703501087 | Storage Box Ass'y This part replaces 707900225. |
| 2380 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 |
| 2390 | 705003264 | Grommet |
| 2400 | 707900248 | Passenger Handhold |
| 2410 | 250000648 | Torx Screw M6 X 60 |
| 2420a | 269500252 | M6 Nut Housing Ass'y |
| 2420b | 232561600 | Hex. Elastic Stop Nut M6 |
| 2500 | 715004344 | Removable Storage Bin This part replaces 707900244. |
| 2510 | 715004344 | Removable Storage Bin This part replaces 707900245. |
| 2520 | 269501945 | Clip |
| 2530 | 707900567 | Handle |
| 2550 | 293830005 | Rubber Bumper |
| 2560 | 293000120 | Cap |
| 3000 | 707900608 | Shifter Gate |
| 3010 | 250000728 | Torx Screw M6 X 25 |
| 3050 | 707900506 | Shifter Gate Deflector |
| 3060 | 250100178 | Push Nut |
| 4200 | 707900452 | Central Adaptor |
| 4205 | 707900434 | Front Grid |
| 4210 | 250000759 | Torx Truss Pt K40 X 16 |
| 4215 | 707900437 | LH Adaptor |
| 4220 | 707900435 | LH Grid |
| 4225 | 707900455 | RH Adaptor |
| 4230 | 707900436 | RH Grid |
| 4235 | 707900438 | Side Flange |
| 4240 | 293150230 | Tuflok Plastic Rivet |
| 4245 | 707900852 | Storage Box LWR F This part replaces 707900417. |
| 4250 | 250000720 | Torx Screw K50 X 16 |
