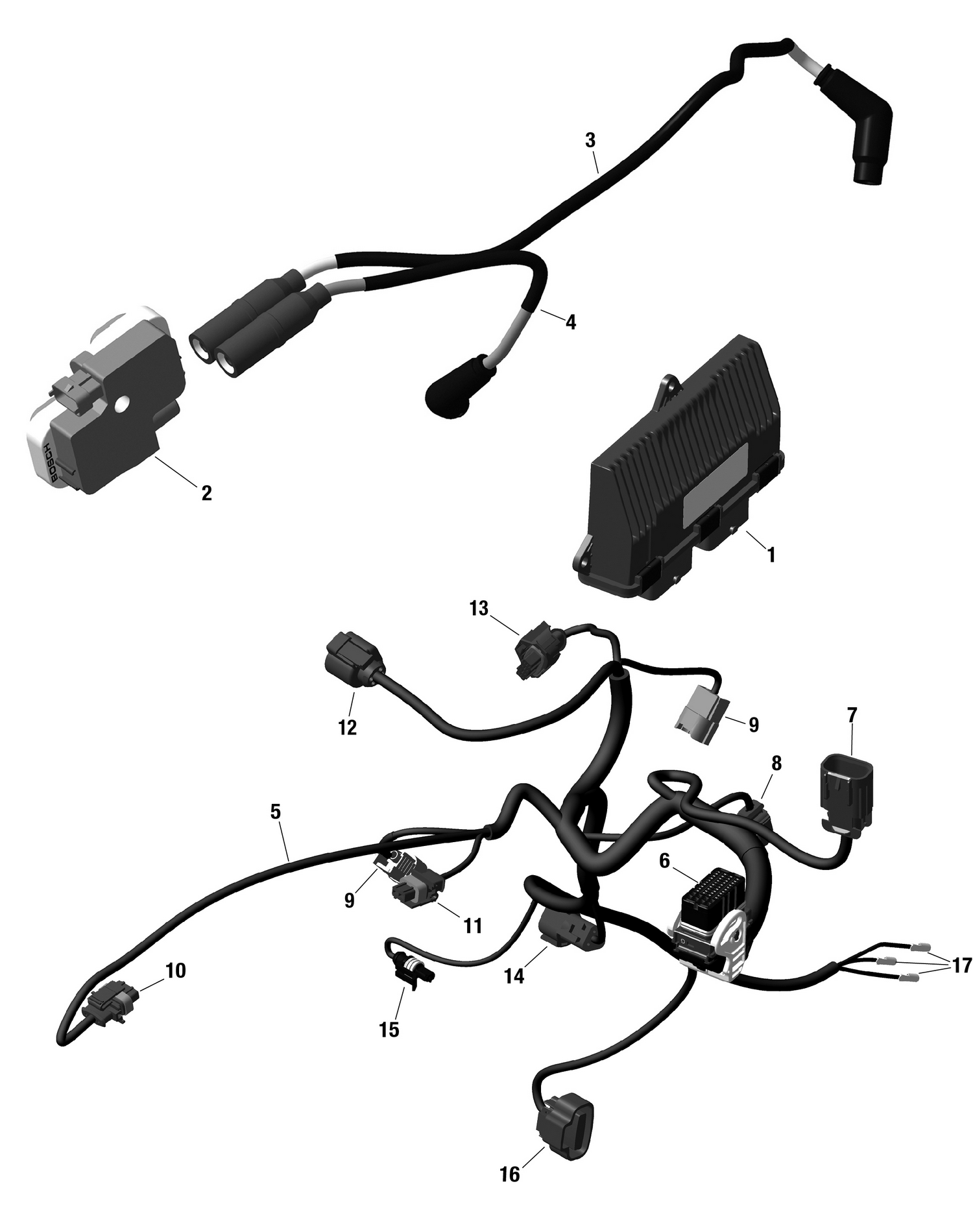

| Ref | Part Number | Description |
|---|
| 2 |
278001546 |
Ignition Coil This part replaces 420266070. |
| 3 |
420464162 |
Spark Plug Cable, 600 mm, PTO SAE |
| 4 |
420464152 |
Spark Plug Cable, 315 mm, MAG SAE |
| 6 |
XXX |
Not Available As Spare Parts |
| 7 |
XXX |
Not Available As Spare Parts |
| 8 |
278001005 |
Male Housing, 2 Circuits |
| 9 |
XXX |
Not Available As Spare Parts |
| 10 |
278000997 |
Male Housing, 3 Circuits |
| 11 |
278001005 |
Male Housing, 2 Circuits |
| 12 |
515177406 |
Female Housing |
| 13 |
515176410 |
Male Connector |
| 14 |
278002378 |
Male Housing This part replaces 409207000. |
| 15 |
278001012 |
Male Housing, 1 Circuit |
| 16 |
710000329 |
Male Housing, 4 Circuits |
