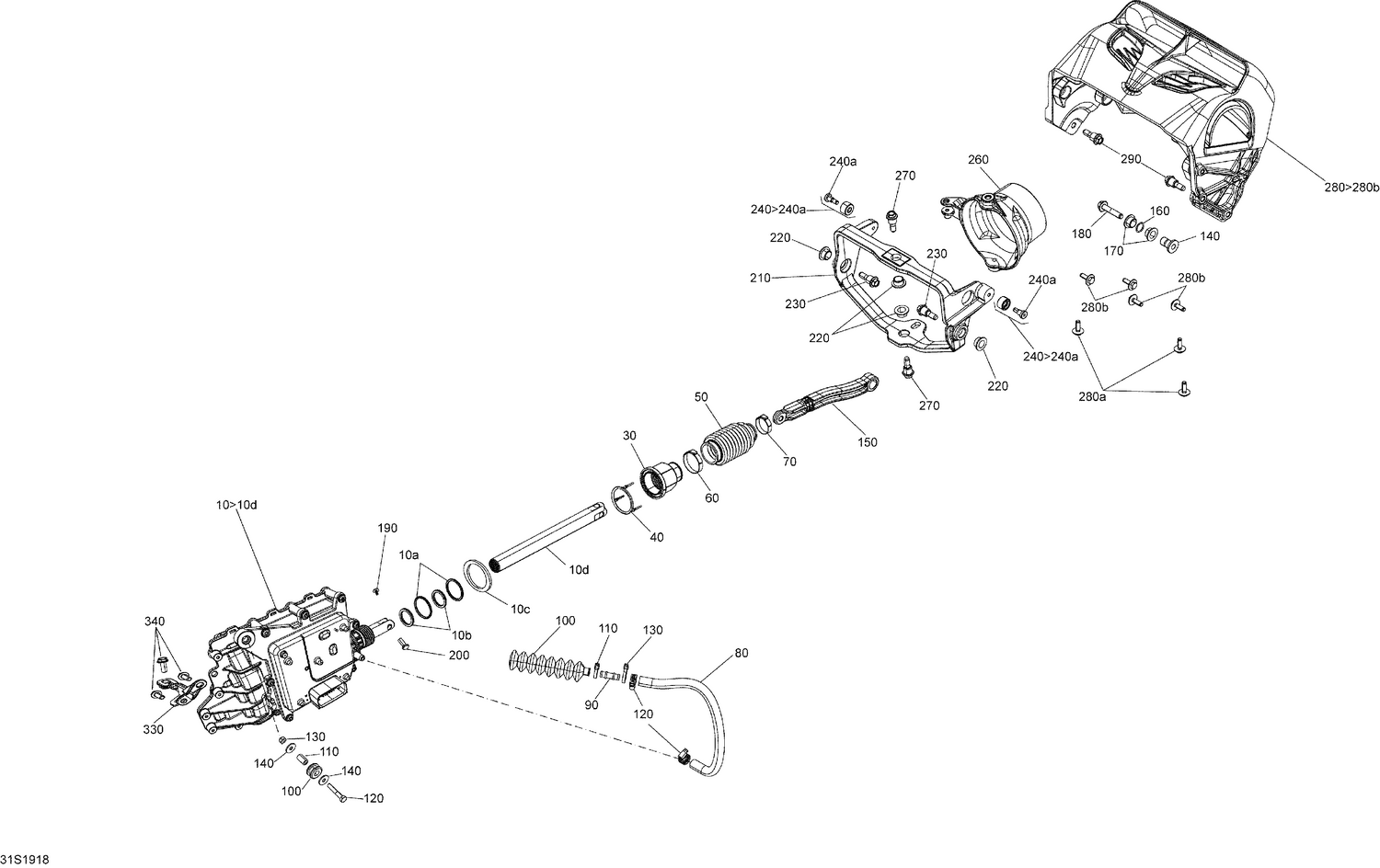

05- Reverse
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 279000108 | O-Ring |
| 10b | 293300107 | O-Ring |
| 10c | 293300187 | O-Ring |
| 10d | 278003027 | Output Shaft |
| 30 | 268000308 | IBR Nut |
| 40 | 277001977 | Rubber Gasket |
| 50 | 268000186 | Boot |
| 60 | 509000529 | Oetiker Gear Clamp, 36.5-706R |
| 70 | 293650099 | Crimp Clamp |
| 100 | 293720104 | Grommet |
| 110 | 271001020 | Spacer |
| 120 | 207063560 | Hex. Screw M6 X 35 |
| 130 | 232561200 | Brass Elastic Stop Nut M6 |
| 140 | 234062600 | Flat Washer M6, Stainless |
| 150 | 268000292 | Linkage Arm Anodised |
| 160 | 293300187 | O-Ring |
| 170 | 293900007 | Venturi Bushing |
| 180 | 250000963 | Hex. Flange Screw Din.6921 S.Grip |
| 190 | 250000565 | Hexalob Screw M4 X 10 |
| 200 | 268000309 | Shoulder Pin |
| 210 | 268000318 | Anodised Trimming Ring This part replaces 268000293. |
| 220 | 293900007 | Venturi Bushing |
| 230 | 250000927 | Hex. Flange Screw S.Grip M8 X 18 |
| 240a | 250000775 | Screw-Socket Shoulder M8X8 |
| 260 | 267000906 | Steering Nozzle |
| 270 | 250000927 | Hex. Flange Screw S.Grip M8 X 18 |
| 280a | 250000965 | Hex Screw M6 X 20 |
| 280b | 250000965 | Hex Screw M6 X 20 |
| 290 | 250000927 | Hex. Flange Screw S.Grip M8 X 18 |
| 330 | 268000307 | Actuator Brace |
