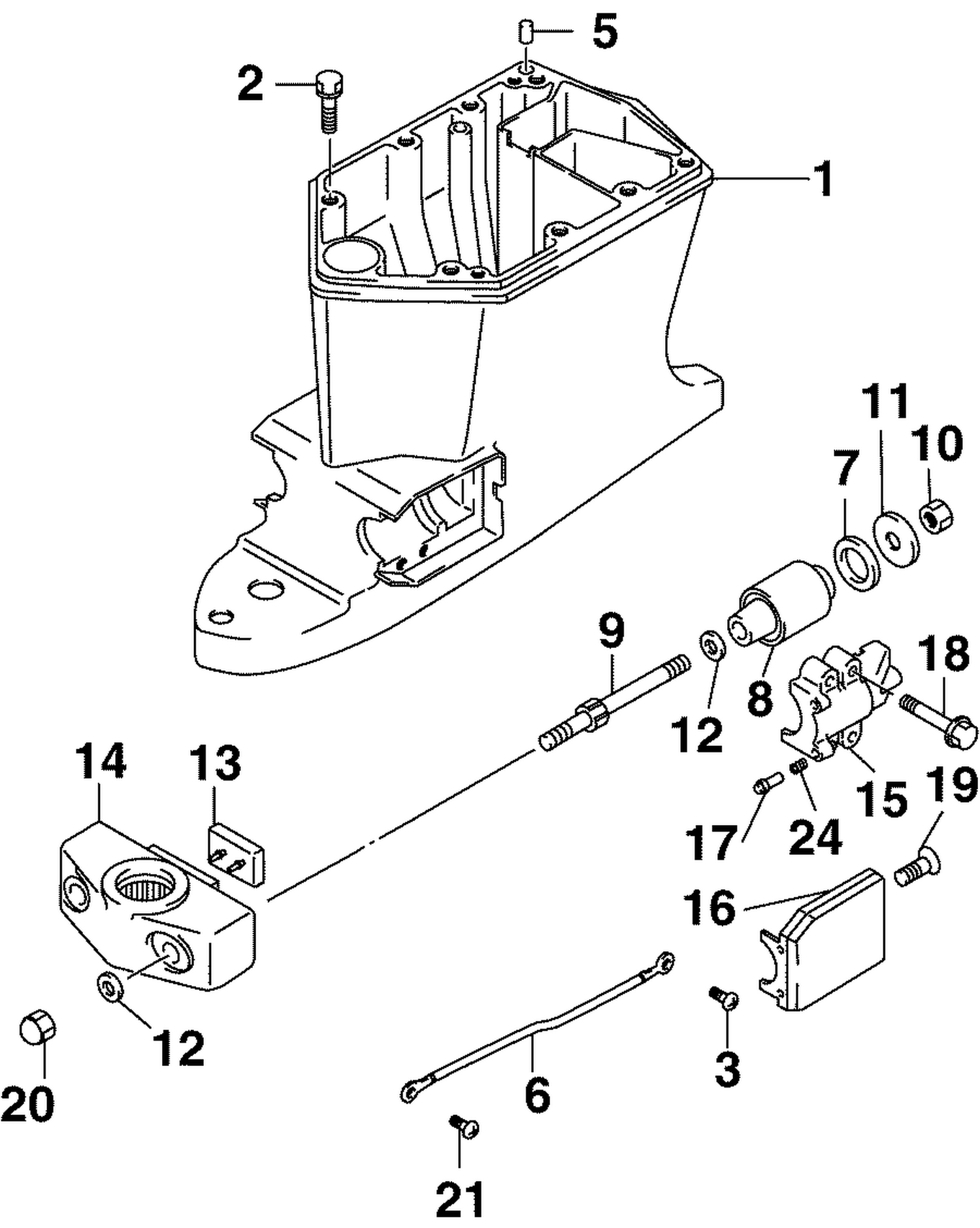

EXHAUST HOUSING
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 2 | *5035792 | BOLT, (10X45mm) This part replaces *5030399. |
| 3 | 5030407 | SCREW (5X8) |
| 5 | 5030511 | PIN |
| 6 | 5030821 | BONDING LEAD, Exh. hsg. to bracket |
| 7 | 5030885 | DAMPER, REVERSE STOP LWR |
| 8 | 5030894 | MOUNT, Lower |
| 9 | 5030895 | BOLT, Lower mount |
| 10 | 5030419 | NUT |
| 11 | 5030437 | WASHER |
| 13 | 5030893 | MOUNT, Lower thrust |
| 17 | 5030902 | PIN |
| 18 | 5030397 | BOLT (8X40mm) |
| 19 | 5030412 | SCREW (6X16mm) |
| 20 | 5031221 | NUT |
| 21 | 5030407 | SCREW (5X8) |
