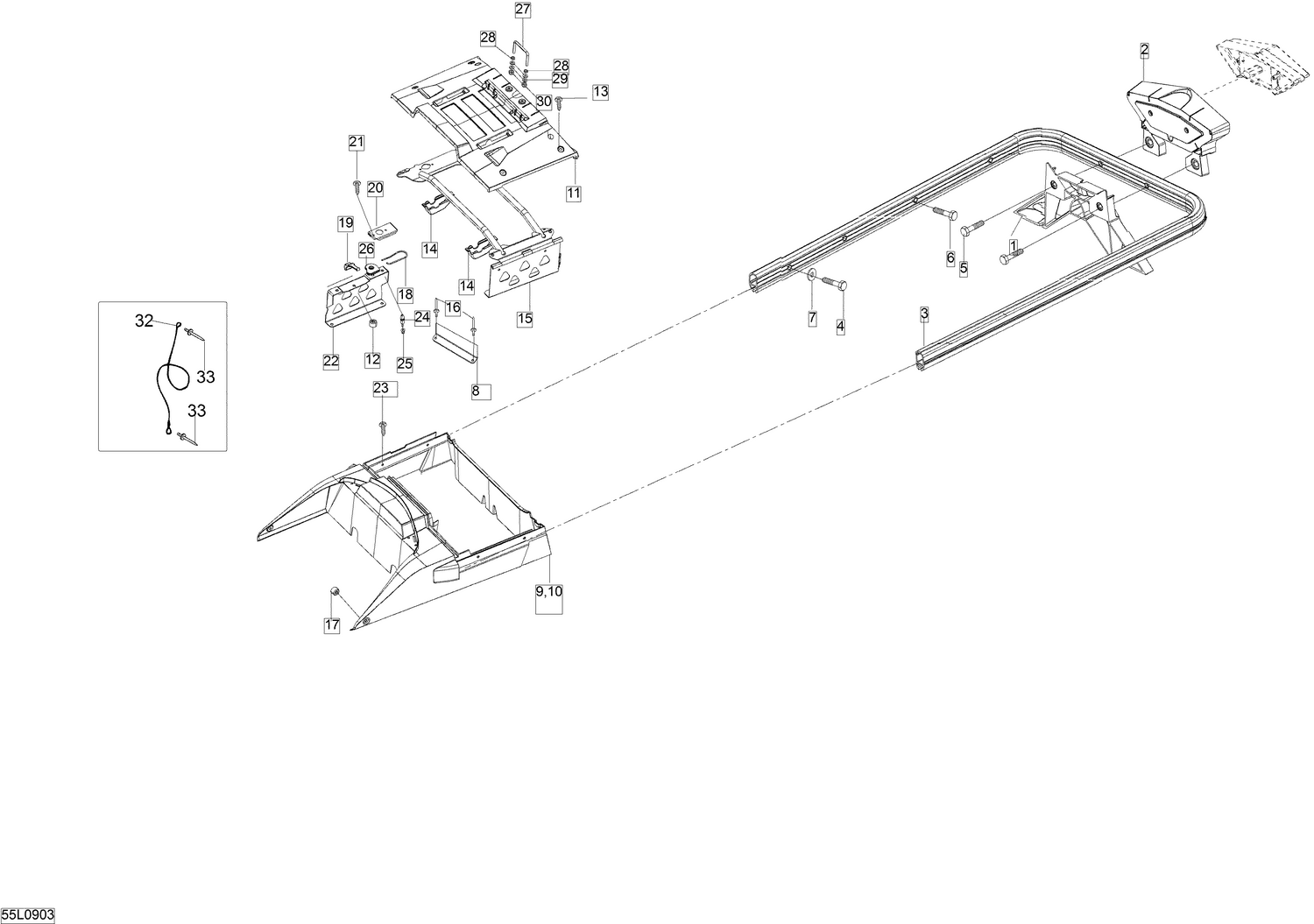

09- Rack
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 511000559 | Rearlight support |
| 2 | 511000630 | Rearlight cover |
| 3 | 511000563 | Rack tube |
| 4 | 207561644 | Hex Flange Screw M6 X 16, Scotch Grip |
| 5 | 207663534 | HEX. FLANGED SCREW M6 X 35 - Call your local BRP dealership |
| 6 | 205562044 | Screw |
| 7 | 234062430 | Flat Washer M6 |
| 8 | 510005156 | Cable supportplate |
| 9 | 510004873 | Storage box ass'y |
| 10 | 510006243 | Storage Box This part replaces 510004874. |
| 11 | 510006244 | Storage Box Cover This part replaces 510004875. |
| 12 | 510005147 | Sleeve |
| 13 | 250000389 | Screw |
| 14 | 510004999 | Cover |
| 15 | 510005714 | Fastening Tube This part replaces 510004951. |
| 16 | 390402200 | Pop Rivet 3/16 |
| 17 | 605452114 | Plug |
| 18 | 269700017 | Lockspring |
| 19 | 510005072 | Puller |
| 20 | 510005698 | Lock Pin Cover This part replaces 510005112. |
| 21 | 250000676 | Forming Screw M5 x 16 This part replaces 732600030. |
| 22 | 510004998 | LOCKING PLATE (FRAME) - Call your local BRP dealership |
| 23 | 207561644 | Hex Flange Screw M6 X 16, Scotch Grip |
| 24 | 605452035 | LOCK PIN - Call your local BRP dealership |
| 25 | 233261416 | Elastic Flanged Nut M6 X 1.0 |
| 26 | 510005044 | Lock pin guide |
| 27 | 510004876 | FASTENER PIN - Call your local BRP dealership |
| 28 | 250000135 | Nut |
| 29 | 20117 | Washer |
| 30 | 232561414 | Elastic Stop Nut M6 |
| 31 | 510005043 | Foam |
| 32 | 293750070 | Seat Retainer Cable This part replaces 546777. |
